    Description

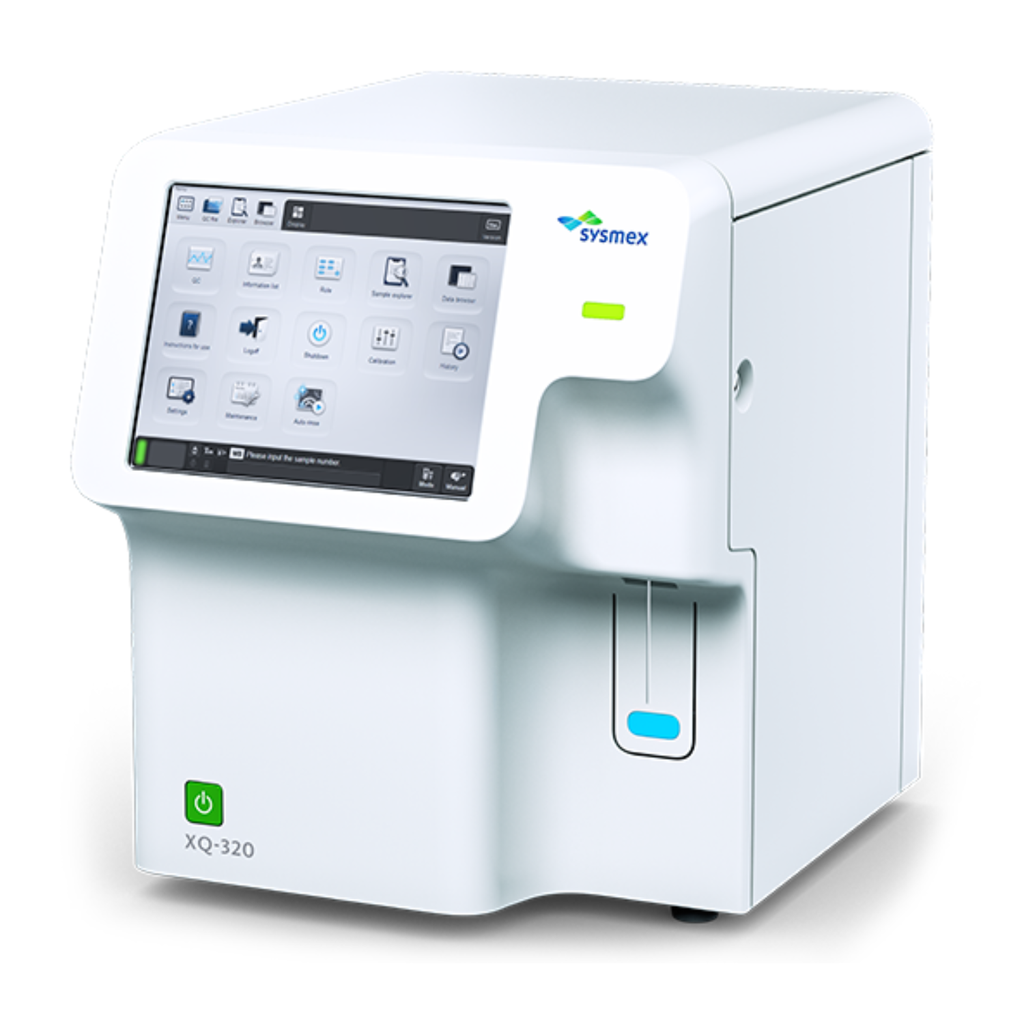

    The Sysmex XQ-320 Automated Hematology Analyzer allows low-volume labs and hospitals to deliver high-quality results with a shorter turnaround time.

    Productivity

    • Space-conscious design with a small footprint
    • Results available in less than one minute
    • Fully automated and standardized measurement
    • Quick shutdown and automatic wakeup function
    • Minimal weekly maintenance

    Feature

    • Seventeen parameters, including a 3-part differential and absolute neutrophil count
    • Optional manual discrimination within histograms for challenging samples
    • Sample Flags provide in-depth information on potentially abnormal samples
    • Very low aspiration volume of 16 μL

    Request a quote now

    Simple, fast, accurate automation

    With XQ-320, your CBC testing is always reliable and accurate. Offering 17 parameters, including a dedicated neutrophil count, the XQ-320 is the right solution for physician office labs, stat labs or wherever high-quality diagnostic testing results with a short turnaround time are required.

    Space-conscious design with a slim footprint
    Results in less than a minute
    Fully automated & standardized measurement
    Minimal weekly maintenance
    Quick shutdown & automatic wake-up function

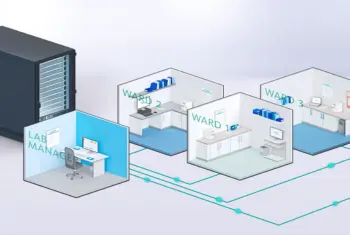

    HL-7 protocol for EMR connection

    Specifications

    Regulatory Compliance
    • Customizable QC lockout and alerts prevent results from being released when QC is unacceptable
    • Reagent lot numbers available for each sample measurement for full traceability
    Quality Control
    • Onboard QC Charts: Levey-Jennings; X-barM
    • EIGHTCHECK™-3WP X-TRA: tri-level QC product for all parameters
    • BeyondCareˢᴹ Quality Monitor provides real-time peer group comparison and continuous calibration verification
    Diagnostic Parameters WBC, RBC, HGB, HCT, MCV, MCH, MCHC, PLT, RDW-SD, RDW-CV, MPV, NEUT#, LYMPH#, MXD#, NEUT%, LYMPH%, MXD%
    Analysis Modes
    • Whole blood (WB) mode
    • Pre-dilution (PD) mode
    Aspiration Volumes
    • Whole Blood Mode: 16 μL
    • Pre-dilute Mode: 65 μL (20 μL blood required)
    Technologies
    • WBC: Direct current method
    • RBC/PLT: Direct current method
    • HGB: Non-cyanide HGB analysis method
    Throughput
    • Whole blood mode: Approx. 70 samples/hour
    • Pre-dilution mode: Approx. 60 samples/hour
    Data Storage
    • Stored samples: 500,000 entries
    • Patient information: 10,000 entries
    • Ward name: 200 entries
    • Doctor name: 200 entries
    • Calibration history: 20 entries
    • QC file: 99 files (300 plots/file)
    • Reagent replacement log: 5,000 entries
    • Maintenance log: 5,000 entries
    • User accounts: 500 entries
    Dimensions and Weight 14 inches (W) x 17.5 inches (D) x 17 inches (H); 48.5 lbs
    Interface 1 Serial Port, 2 LAN Ports, 5 USB Ports
    Operating System Embedded Microsoft® Windows 10 with McAfee Security
    Ambient Temperature (Analysis) 15 °C TO 30 °C
    Operating Humidity 20% to 85%
    Power Supply AC 100 to 240 V (50/60 Hz)
    Power Consumption 160 VA or less
