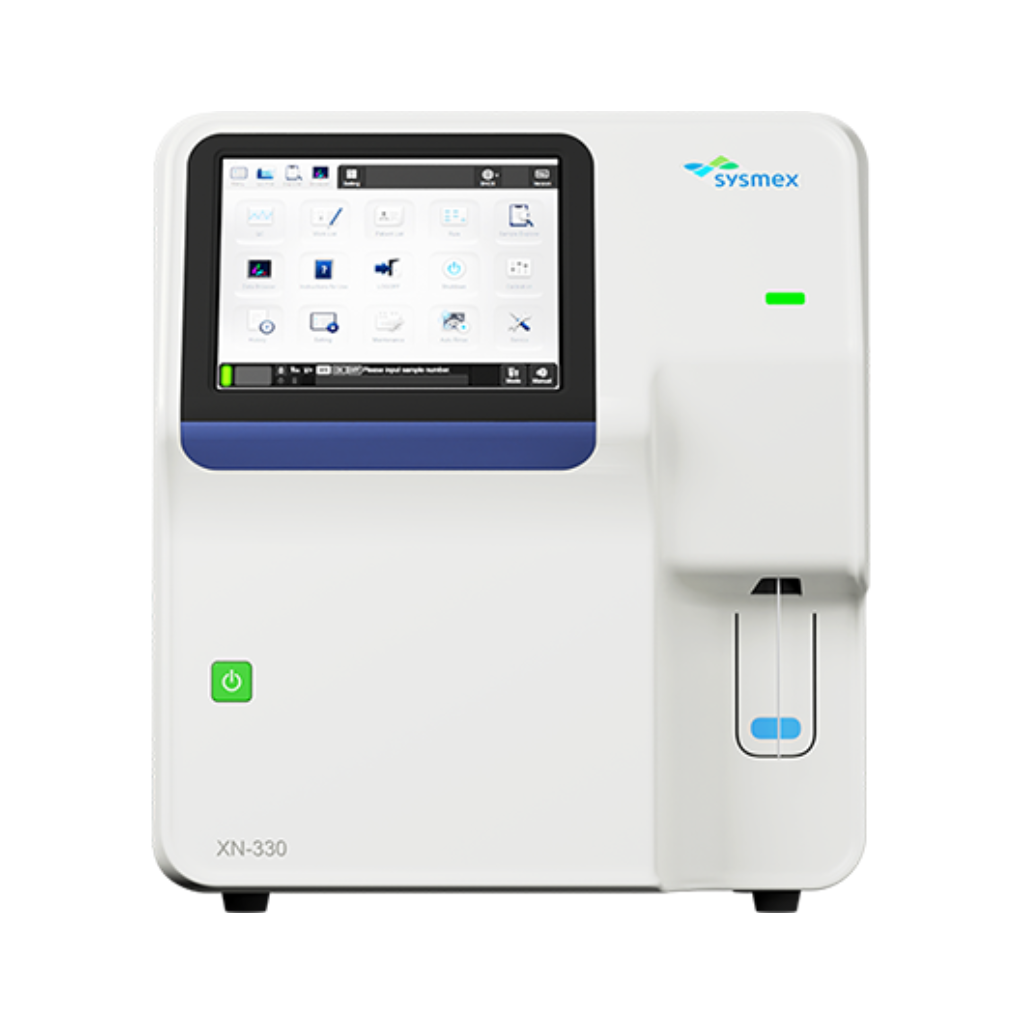

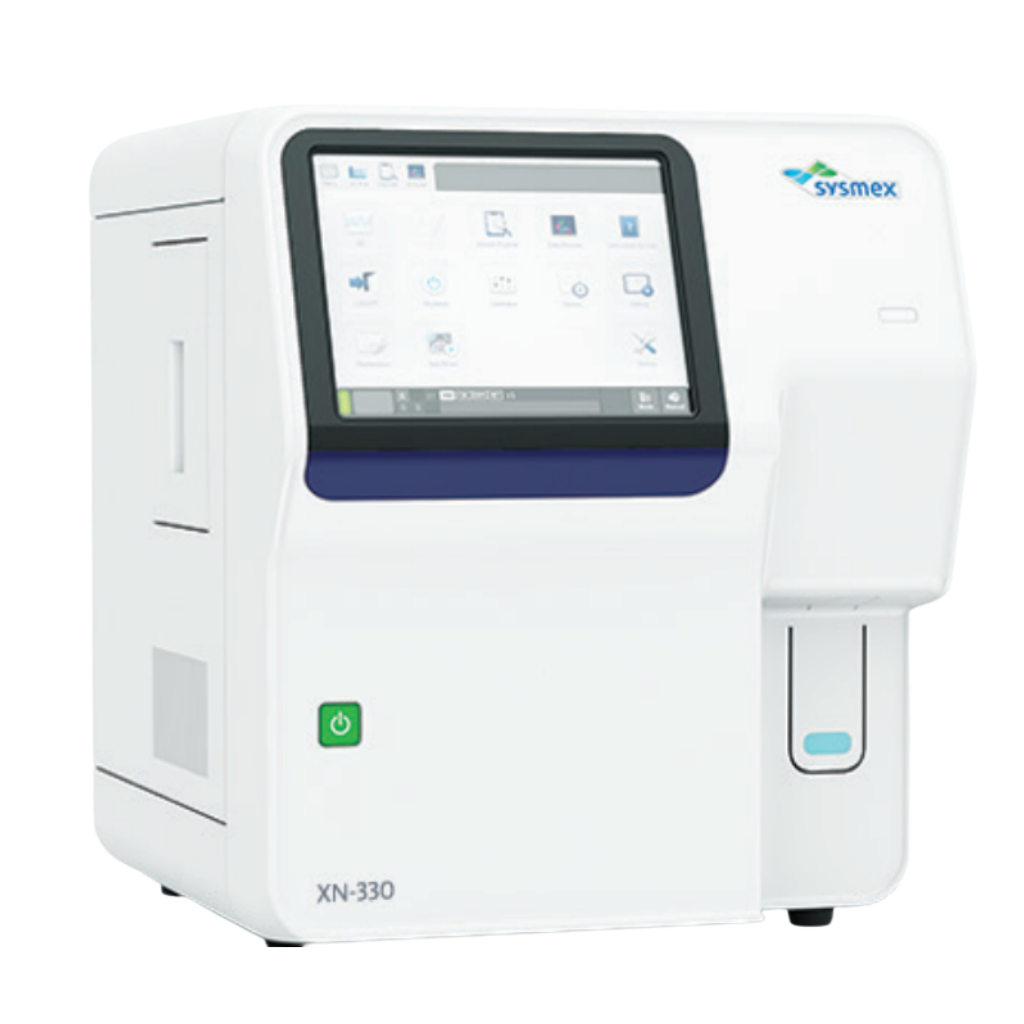

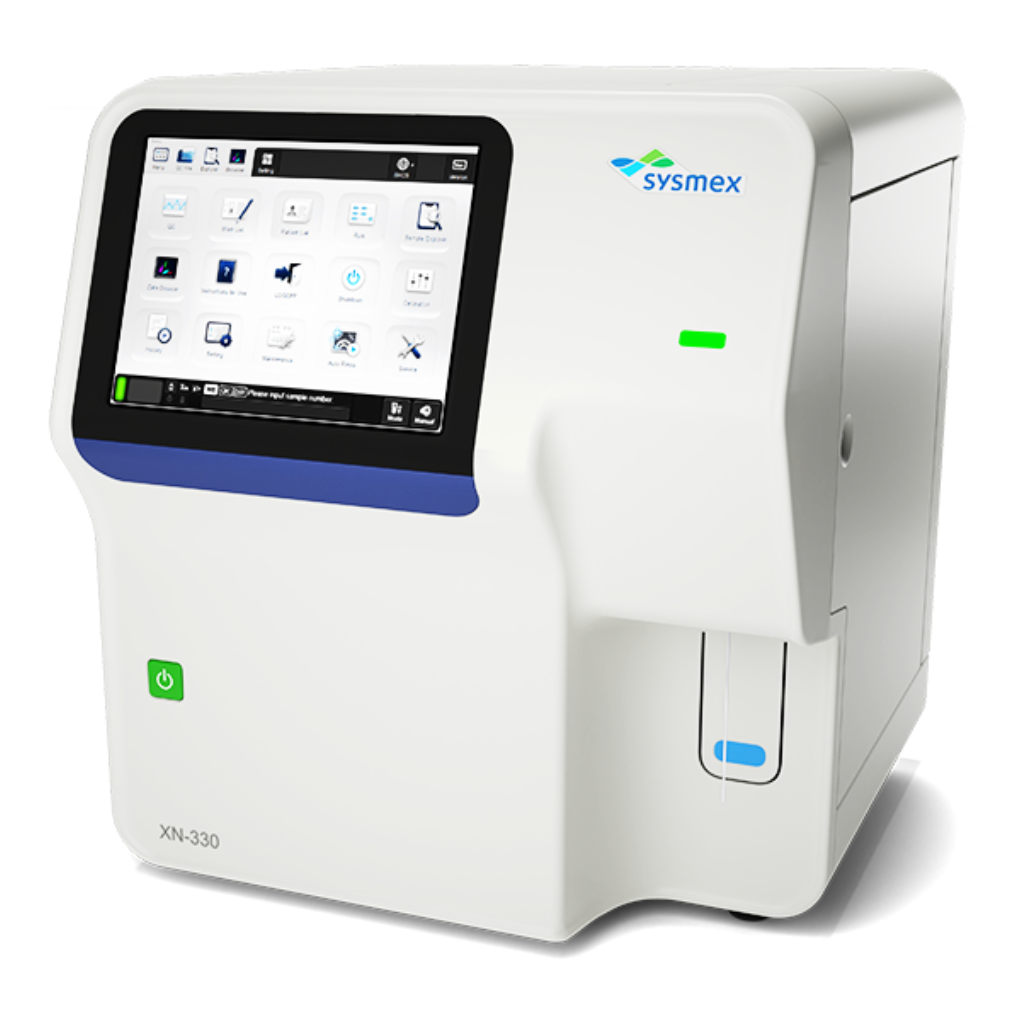

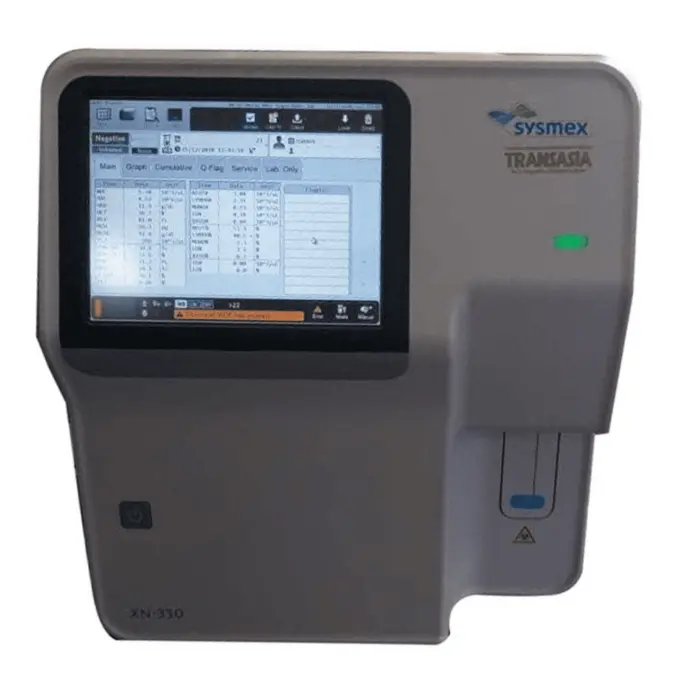

Sysmex XN-330
The XN-330 offers single sample analysis in open mode. It has a fully integrated IPU (information-processing unit) including an LCD colour touchscreen – so you do not need a separate computer to operate the analyser. It incorporates the proven Sysmex technologies of fluorescence flow cytometry, hydrodynamic focusing and our cyanide-free SLS method for determining haemoglobin.
Features and Benefits
- Compact 6-part differential haematology analyser
- Throughput of 60 samples per hour
- Single sample analysis in open mode
- Fully integrated IPU including LCD colour touchscreen
- Only 25 µL aspiration volume in whole blood mode
- Best-in-class diagnostics tailored to small and mid-sized laboratories
Simple, smart, compact design.
The XN-330 is a compact, open-tube sampling analyzer, perfect for your CLIA moderately complex lab. With a six-part differential on every sample and a common user interface, the XN-330 provides your small physician's office lab or clinic with the same powerful, intuitive XN technology of the larger XN-Series™.
Not all products and services are registered or sold in all markets.
- Open tube sampling
- Integrated IPU with LCD color touchscreen
- Intuitive XN software
- Low WBC mode for accurate results
- Accurate and reproducible immature granulocyte with every diff
- No additional prep time or reagents required
XN-LTM Series
Using the same technology as Sysmex’s XN-Series™ analyzers, the XN-L Series is the smart and cost-effective
alternative for smaller labs.
Sysmex XN-L automated hematology analyzers offer expanded clinical value
Using fluorescent flow cytometry and advanced algorithms, the XN-L generates an automated 6-part differential which includes Immature Granulocyte (IG) enumeration. The IG count reflects metamyelocytes, myelocytes and promyelocytes in the sample, requires no additional preparation or reagents and may help reduce the number of manual differentials being performed in your lab. The available Low WBC mode extends the WBC and differential counting time, providing accurate and reproducible results that may lead to increased workflow efficiency
Product Specifications
| Brief Product Description | XN-Series™ technology in a smaller footprint for the lower volume laboratory. Open tube sampling. |
|---|---|
| Principles and Technology | Fluorescent Flow Cytometry (WBC DIFF/RET), direct current Impedance method with hydrodynamic focusing (RBC/PLT), Cyanide-free SLS method (HGB) |
| Channels |  |
| Parameters | WBC, RBC, HGB, HCT, MCV, MCH, MCHC, PLT, RDW-SD, RDW-CV, MPV, NEUT#, NEUT%; IG#, IG%; LYMPH#, LYMPH%; MONO#, MONO%; EO#, EO%; BASO#, BASO% |
| Throughput | Up to 60 samples/hour |
| Sample Volume | Whole Blood Mode: 25 µL Pre-dilute Mode: 70 µL |
| Linearity | WBC: 0.00 – 440.00 X 10³/µL RBC: 0.00 – 8.60 X 10⁶/µL PLT: 0 – 5,000 X 10³/µL |
| Quality Control | XN-L CHECK™ or XN CHECK™ |
| User Maintenance | Daily shutdown |
| Dimensions and Weight | 17.72” (W) X 18.11” (D) X 20.08” (H); 77.16 LBS |
Product Specifications
| Brief Product Description | XN-Series™ technology in a smaller footprint for the lower volume laboratory. Open tube sampling. |
|---|---|
| Principles and Technology | Fluorescent Flow Cytometry (WBC DIFF/RET), direct current Impedance method with hydrodynamic focusing (RBC/PLT), Cyanide-free SLS method (HGB) |
| Channels | |
| Parameters | WBC, RBC, HGB, HCT, MCV, MCH, MCHC, PLT, RDW-SD, RDW-CV, MPV, NEUT#, NEUT%; IG#, IG%; LYMPH#, LYMPH%; MONO#, MONO%; EO#, EO%; BASO#, BASO% |
| Throughput | Up to 60 samples/hour |
| Sample Volume | Whole Blood Mode: 25 µL Pre-dilute Mode: 70 µL |
| Linearity | WBC: 0.00 – 440.00 X 10³/µL RBC: 0.00 – 8.60 X 10⁶/µL PLT: 0 – 5,000 X 10³/µL |
| Quality Control | XN-L CHECK™ or XN CHECK™ |
| User Maintenance | Daily shutdown |
| Dimensions and Weight | 17.72” (W) X 18.11” (D) X 20.08” (H); 77.16 LBS |
