Intelligent, compact analyzer offers big benefits for your small lab

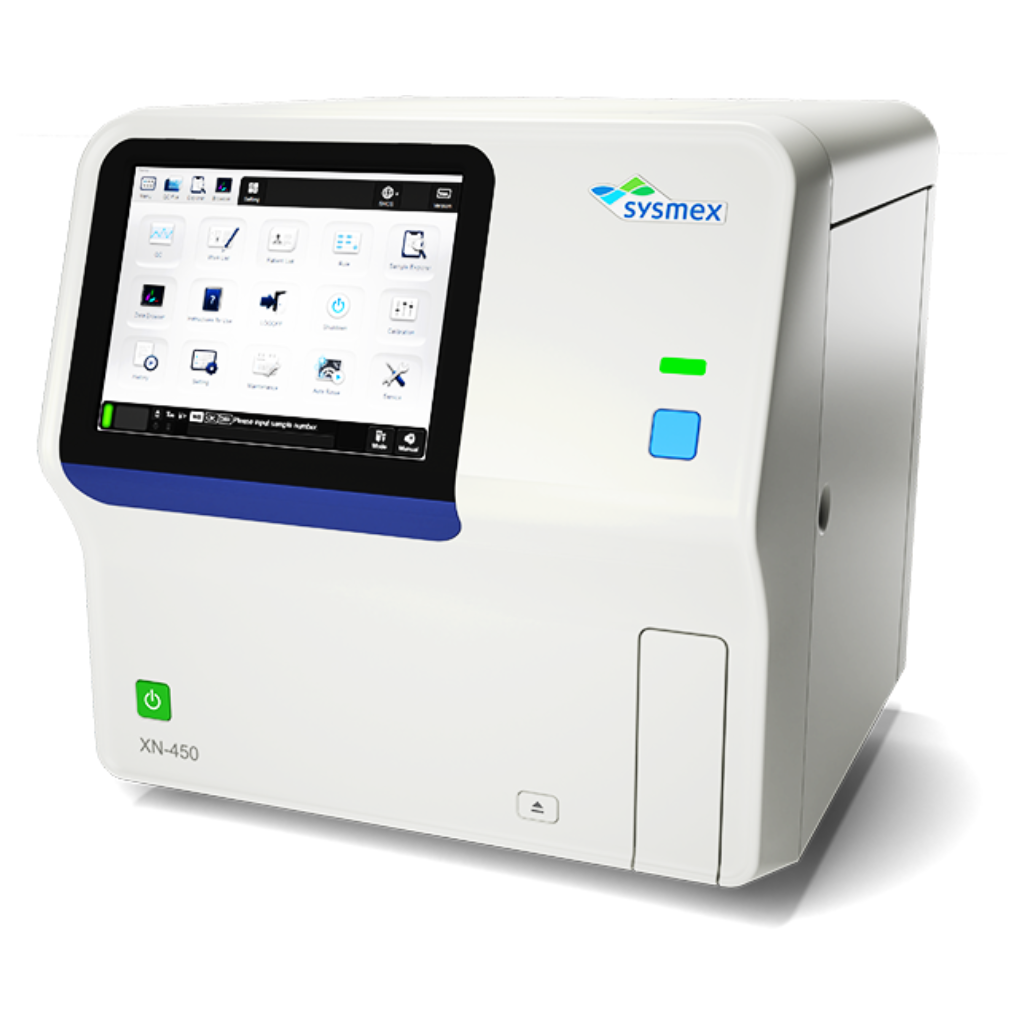

The XN-450 offers closed-mode sampling, an integrated IPU with LCD color touchscreen and intuitive XN software. With the clinical and operational values found on its sister XN-Series™, the XN-450 analyzer brings small labs powerful diagnostics and reliable analysis to help optimize your lab's performance.
Not all products and services are registered or sold in all markets.
- Closed tube sampling
- Integrated IPU with LCD color touchscreen
- Intuitive XN software
- Low WBC mode for accurate results
- Accurate and reproducible immature granulocyte with every diff
- No additional prep time or reagents required
- Optional body fluid license

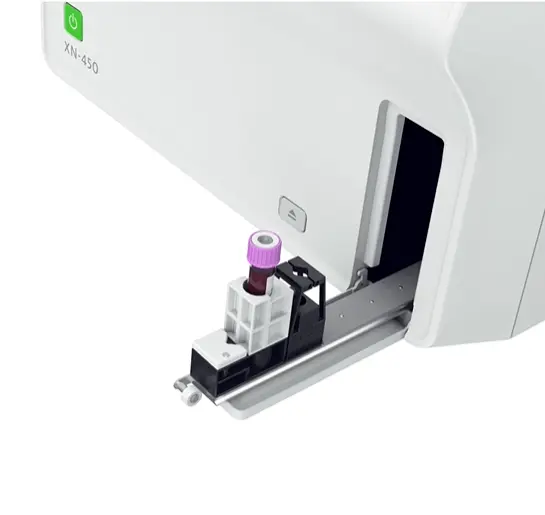

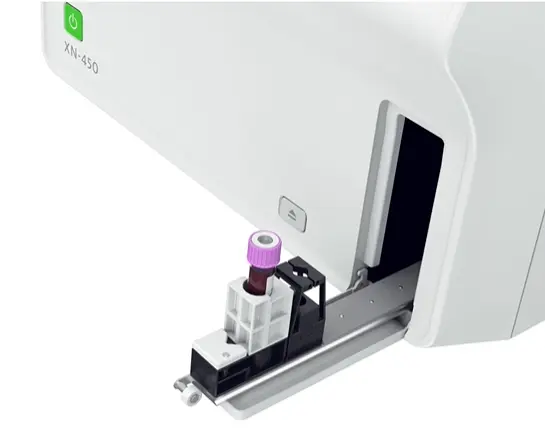

Sysmex XN-450 open or closed tube sampling
XN-L Series Analyzers
The introduction of the XN-Series hematology analyzers has helped Sysmex become a market leader in CBC testing performed by mid-to high-volume labs. Now we are bringing the same clinical and operational values to lower-volume labs with the XN-L Series.
Sysmex XN-L automated hematology analyzers offer expanded clinical value
- Using fluorescent flow cytometry and advanced algorithms, the XN-L generates an automated 6-part differential which includes Immature Granulocyte (IG) enumeration. The IG count reflects metamyelocytes, myelocytes and promyelocytes in the sample, requires no additional preparation or reagents and may help reduce the number of manual differentials being performed in your lab.
- The available Low WBC mode extends the WBC and differential counting time, providing accurate and reproducible results that may lead to increased workflow efficiency

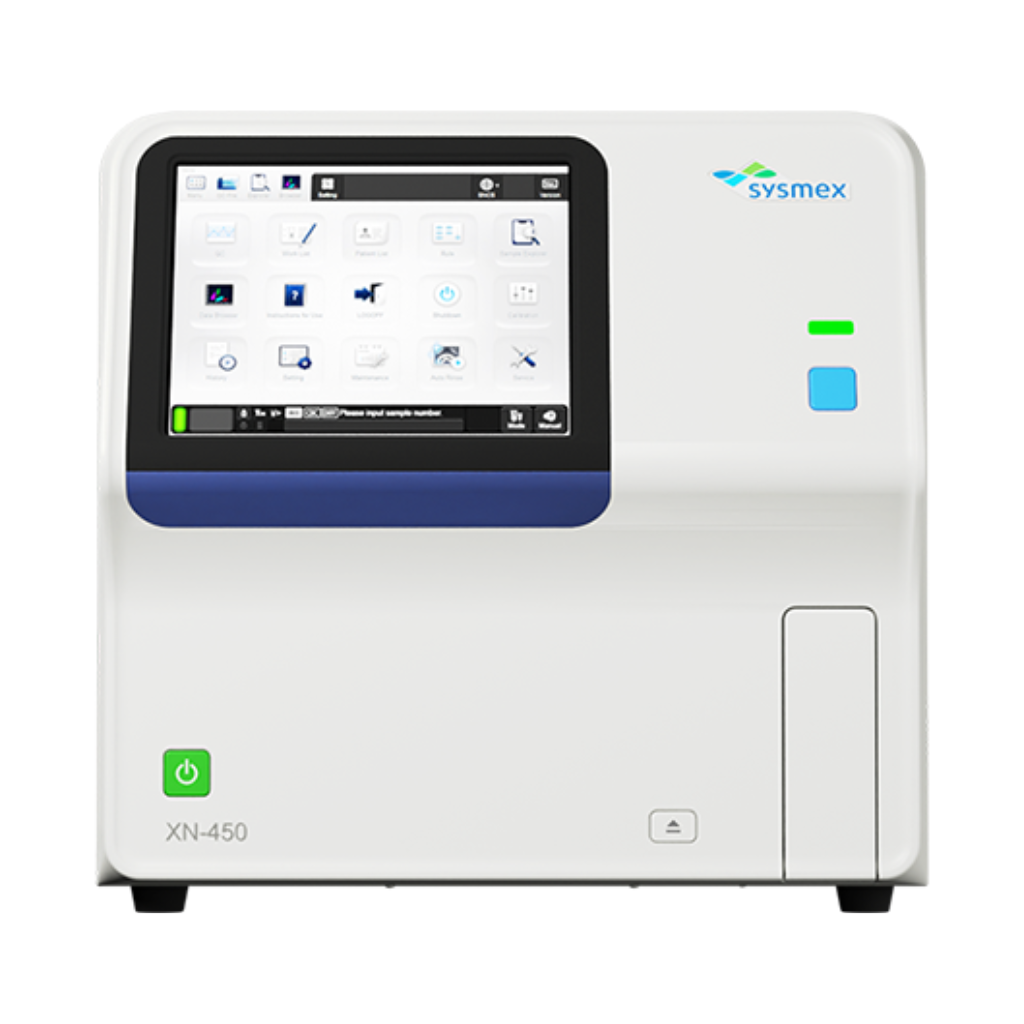

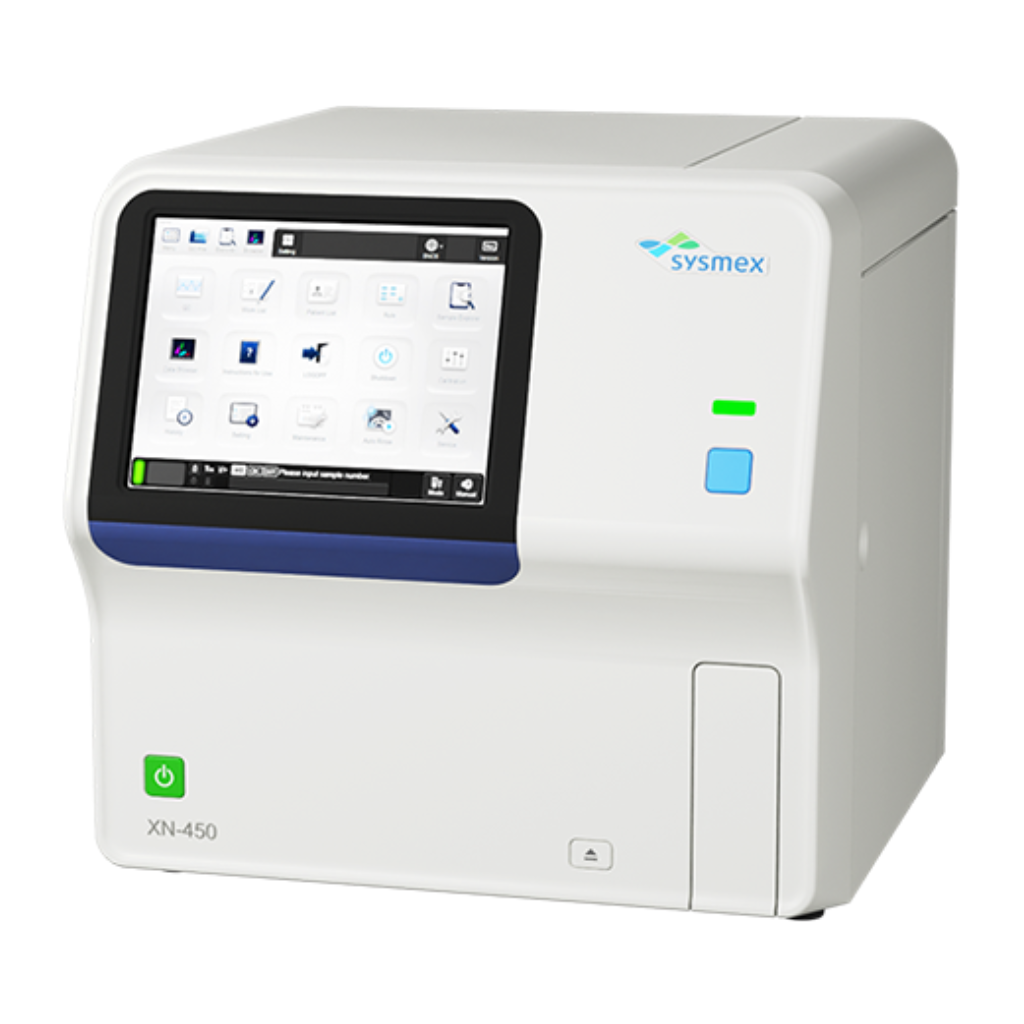

The Sysmex XN-450: Delivering Essential Hematology Insights with a Compact Design.
Ease of use & peace of mind
Multi-coloured touch screen display embedded with intuitive graphical user interface to support your routine tasks.
Space saving
Compact design with an in-built IPU that fits easily to any laboratory bench or table with a smaller footprint.
Flexibility
Requires only 25 µl of aspiration volume for whole blood mode and low WBC mode.
Improved workflow and TAT
Up to 70 samples/hour: Sampler comes with two drawers to allow continuous loading of samples
More than just CBC + DIFF
Core Technology of XN-L Series
XN-L Series utilises the same core technology as high-end haematology analysers - the proven and reliable laser flow cytometry to count and analyse cells. After the cells are irradiated by the laser beam, the forward scattered light (FSC), side scattered light (SSC) and side fluorescent light (SFL) of the cells are analysed. The three signals are used to differentiate and count cells with the help of unique digital technology and algorithms.
Benefits at a glance
- Flexible - XN-L analyzers are compatible with standard and BD Microtainer® MAP tubes
- Compact - XN-L analyzers have a small footprint to fit any lab.
- Standardization - Using the same technology, reagents and controls as the XN-Series, the XN-L analyzers ensure standardized CBC results across your network, regardless of lab size or workflow.
- Low WBC mode - Improves reliability of results, even in leukopenic patients.
- Reticulocyte License (RET) - optional – Utilizing fluorescent flow cytometry, the reticulocyte analysis channel provides retic counts, an immature reticulocyte fraction (IRF) and reticulocyte hemoglobin equivalent (RET-He) to add clinically significant data to the diagnostic profile.
- Body Fluid License (XN-BF) - optional - The optional Body Fluid Mode allows labs to standardize cell counts on many common body fluids. Automated WBC, RBC and total nucleated cell counts and a reportable 2-part differential provide efficiency and accuracy for body fluid samples.

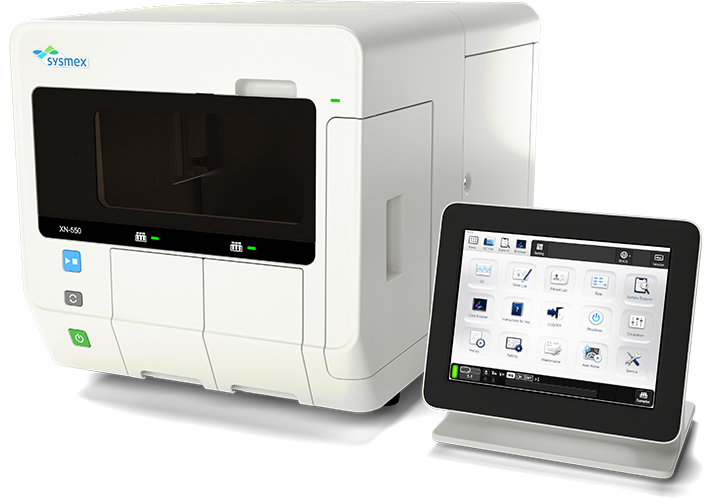

- Onboard Rules – Customizable onboard rules provide guidance for handling abnormal or flagged samples per your lab’s SOPs. Automated rerun and reflex testing are available only on the XN-550 analyzer.
Standardisation across Sysmex platforms
Compatibility with the XN-Series through common reagents, controls and technology allows for consistency across laboratory operations.
1. Common reagents and QC materials
Reagents and QC materials utilised with the XN-Series can be used on the XN-L Series.
2. Uniform user interface
The XN-L analysers use the same user interface as the XN-Series.
3. Identical core technology and clinical parameters
Enhanced clinical parameters makes the XN-L Series the perfect backup for 24/7 laboratories.
Specifications
| Models | XN-450 |
|---|---|
| Principles and Technology |
|
| Channels |
|
| Parameters |
WBC, RBC, HGB, HCT, MCV, MCH, MCHC, PLT, RDW-SD, RDW-CV, MPV, NEUT#, NEUT%; IG#, IG%; LYMPH#, LYMPH%; MONO#, MONO%; EO#, EO%; BASO#, BASO%
Retic Parameters with Optional License: RET#, RET%, IRF, RET-He Body Fluid Parameters with Optional License: TC-BF, WBC-BF, RBC-BF PMN #, PMN%, MN #, MN% |
| Linearity |
|
| Throughput | Up to 60 samples/hour in whole blood (WB) modes |
| Aspiration Volume |
|
| Data Storage Capacities | Results: 100,000 samples |
| Quality Control |
|

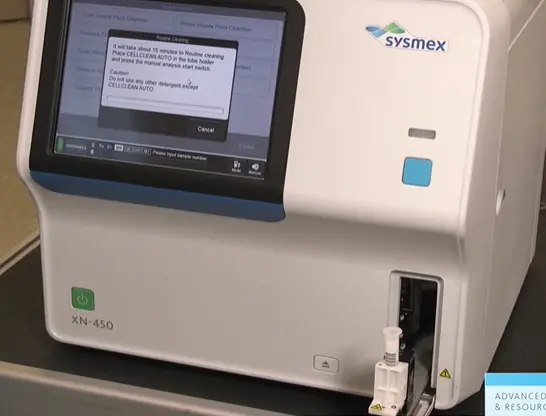

| User Maintenance | Weekly cleaning sequence with CELLCLEAN™ AUTO |
| Dimensions/weights W x H x D [inches/pounds] |
|
| Models | XN-450 |
|---|---|
| Principles and Technology |
|
| Channels |
|
| Parameters |
WBC, RBC, HGB, HCT, MCV, MCH, MCHC, PLT, RDW-SD, RDW-CV, MPV, NEUT#, NEUT%; IG#, IG%; LYMPH#, LYMPH%; MONO#, MONO%; EO#, EO%; BASO#, BASO%
Retic Parameters with Optional License: RET#, RET%, IRF, RET-He Body Fluid Parameters with Optional License: TC-BF, WBC-BF, RBC-BF PMN #, PMN%, MN #, MN% |
| Linearity |
|
| Throughput | Up to 60 samples/hour in whole blood (WB) modes |
| Aspiration Volume |
|
| Data Storage Capacities | Results: 100,000 samples |
| Quality Control |
|
| User Maintenance | Weekly cleaning sequence with CELLCLEAN™ AUTO |
| Dimensions/weights W x H x D [inches/pounds] |
|
