Two XN analyzers for maximum uptime
This dual analyzer system provides you with the confidence of an automated built-in back-up with comprehensive output parameters.
XN-2000 Automated Hematology Analyzer
- Integrated co-primary system
- 2 XN analyzer modules
- Optional concentrated reagents simplify consumable inventory management
- Optional floor-standing wagon for system and reagents
In addition to traditional CBC results, our Advanced Clinical Parameters include:
- NRBCs with every CBC
- 2 XN-10 analyzer modules or 1 XN-10/1 XN-20 if a lot of abnormal WBC
- Reticulocyte Hemoglobin (RET-He) within a reticulocyte profile
- Fluorescent platelet channel for Immature Platelet Fraction (IPF)
Workflow Efficiencies
- Compact design delivers a smaller footprint for increased productivity.
- Upgrade the standard XN-10 CBC analyzers to XN-20 CBC analyzer to add an additional analysis channe for improved differentiation of abnormal WBC populations.
- Fluorescent Flow Cytometry using a semi-conductor laser and hydrodynamic focusing in dedicated channels.

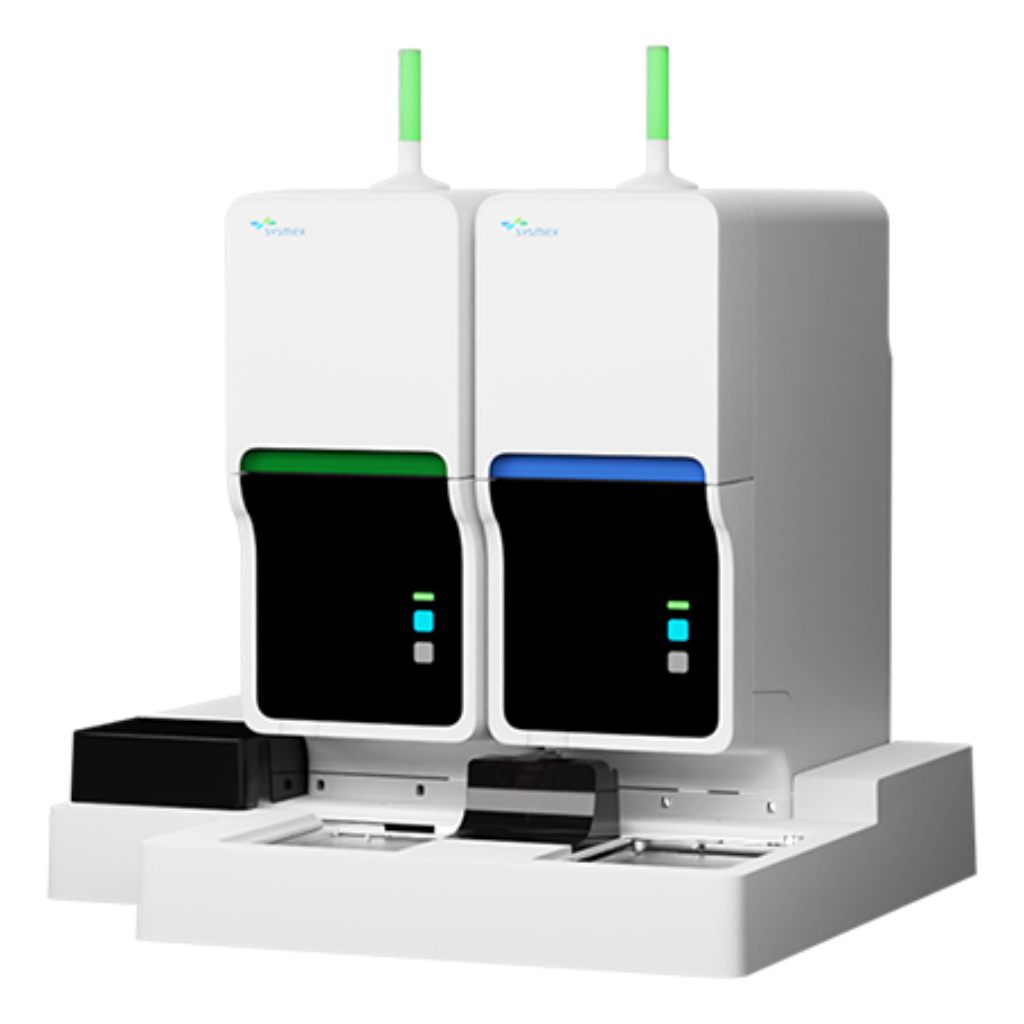

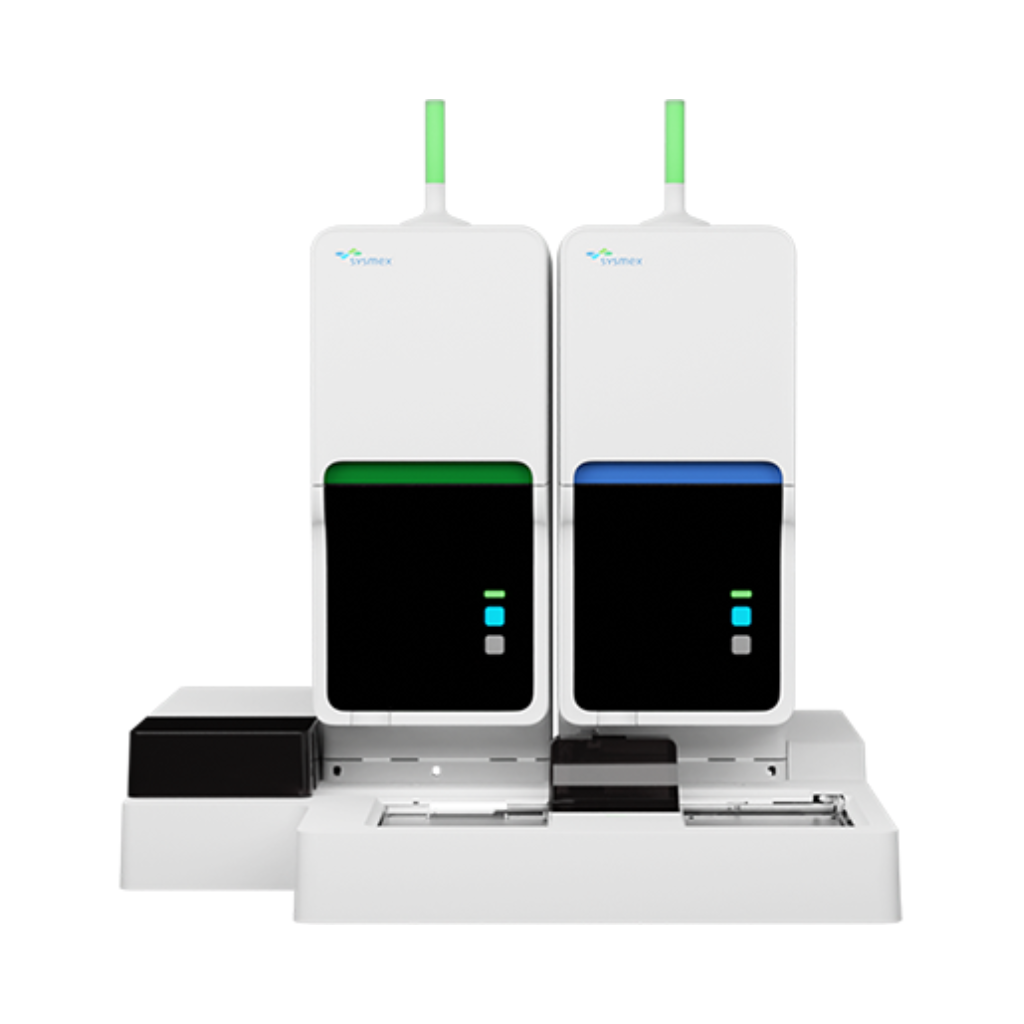

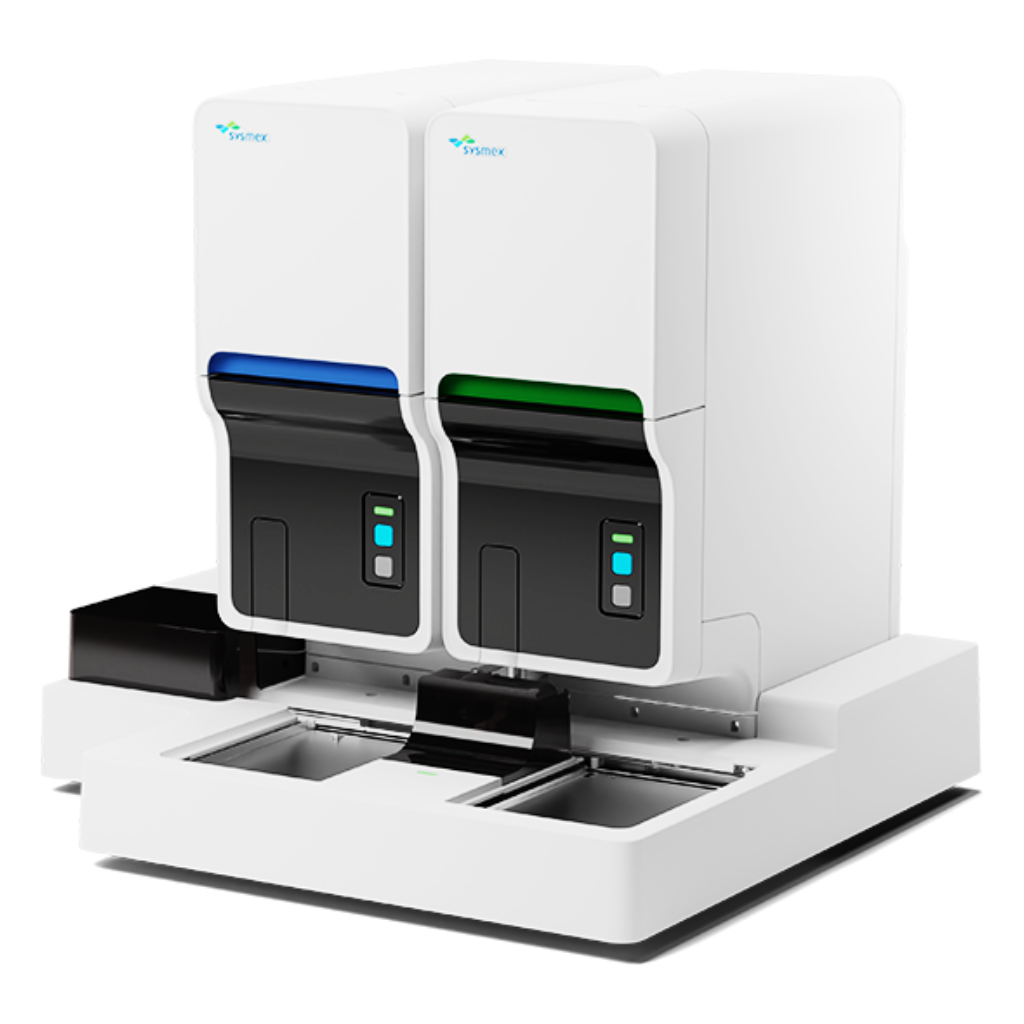

This image features the Sysmex XN-2000 automated hematology analyzer,
with other visible components sold separately.
NEXT GENERATION DIAGNOSTICS
Advanced clinical parameters:
- Leukopoietic indicators—Immature granulocytes with every differential
- Erythropoietic indicators—Nucleated RBC with every CBC, reticulocyte hemoglobin (RET-He) and immature reticulocyte fraction (IRF)
- Thrombopoietic indicators—Immature platelet fraction (IPF) and a fluorescent platelet count (PLT-F) designed for very low platelet counts
HARMONIZED SUPPORT
- Workflow assessment and optimization
- Comprehensive continuing education
- Insight™ Interlaboratory Quality Assessment Program (IQAP)
- BeyondCare℠ Quality Monitor for Hematology (BCQM) provides real-time peer group analytics and advanced troubleshooting assistance
ADVANCED TOOLS AND TECHNOLOGIES
Productivity and efficiency enhancements that are supported by:
- Autoverification
- Automatic workload balancing
- Rerun/reflex testing
- Reflexive slide preparation
- Caresphere™ Workflow Solution (WS)
- Sysmex Validation Solution (VS)
PROCESS OPTIMIZATION
- Remarkably small footprint to optimize increasingly precious laboratory space
Specifications
| Brief Product Description | Compact yet automated, the XN-2000 offers a unique co-primary solution with automatic load balancing, onboard decision rules and hands free rerun and reflex testing. Available in XN-10™ or XN-20™ analyzer configurations providing additional differential flagging.
|
| Principles and Technology | Fluorescent Flow Cytometry using a semi-conductor laser and hydrodynamic focusing in dedicated channels. |
| Channels |
|
| Parameters | Whole Blood: WBC; RBC; HGB; HCT; MCV; MCH; MCHC; PLT (PLT-I, PLT-F); NEUT#; NEUT%; IG#; IG%; LYMPH#; LYMPH%; MONO#; MONO%; EO#; EO%; BASO#; BASO%; NRBC#; NRBC%; RDW-SD; RDW-CV; MPV; RET#; RET%; IRF; RET-HE; IPF#; IPF% Body Fluid: TC-BF, WBC-BF, RBC-BF PMN#, PMN%, MN#, MN% |
| Throughput | Whole Blood: up to 200 samples/hour Body Fluid Mode: up to 80 samples/hour |
| Sample Volume | Whole Blood Mode: 88 µL Low WBC Mode: 88 µL Pre-dilute Mode: 70 µL Body Fluid Mode: 88 µL |
| Linearity | WBC: 0.00 - 440.00 X 10³/µL RBC: 0.00 - 8.60 X 10⁶/µL PLT: 0 - 5,000 X 10³/µL WBC-BF: 0.000 - 10.000 X 10³/µL RBC-BF: 0.000 - 5.000 X 10⁶/µL |
| Quality Control |
|
| Dimensions and Weight | 37.8" (W) X 36" (D) X 33.7" (H); 315.3 LBS |
| Brief Product Description | Compact yet automated, the XN-2000 offers a unique co-primary solution with automatic load balancing, onboard decision rules and hands free rerun and reflex testing. Available in XN-10™ or XN-20™ analyzer configurations providing additional differential flagging.
|
| Principles and Technology | Fluorescent Flow Cytometry using a semi-conductor laser and hydrodynamic focusing in dedicated channels. |
| Channels |
|
| Parameters | Whole Blood: WBC; RBC; HGB; HCT; MCV; MCH; MCHC; PLT (PLT-I, PLT-F); NEUT#; NEUT%; IG#; IG%; LYMPH#; LYMPH%; MONO#; MONO%; EO#; EO%; BASO#; BASO%; NRBC#; NRBC%; RDW-SD; RDW-CV; MPV; RET#; RET%; IRF; RET-HE; IPF#; IPF% Body Fluid: TC-BF, WBC-BF, RBC-BF PMN#, PMN%, MN#, MN% |
| Throughput | Whole Blood: up to 200 samples/hour Body Fluid Mode: up to 80 samples/hour |
| Sample Volume | Whole Blood Mode: 88 µL Low WBC Mode: 88 µL Pre-dilute Mode: 70 µL Body Fluid Mode: 88 µL |
| Linearity | WBC: 0.00 - 440.00 X 10³/µL RBC: 0.00 - 8.60 X 10⁶/µL PLT: 0 - 5,000 X 10³/µL WBC-BF: 0.000 - 10.000 X 10³/µL RBC-BF: 0.000 - 5.000 X 10⁶/µL |
| Quality Control |
|
| Dimensions and Weight | 37.8" (W) X 36" (D) X 33.7" (H); 315.3 LBS |
