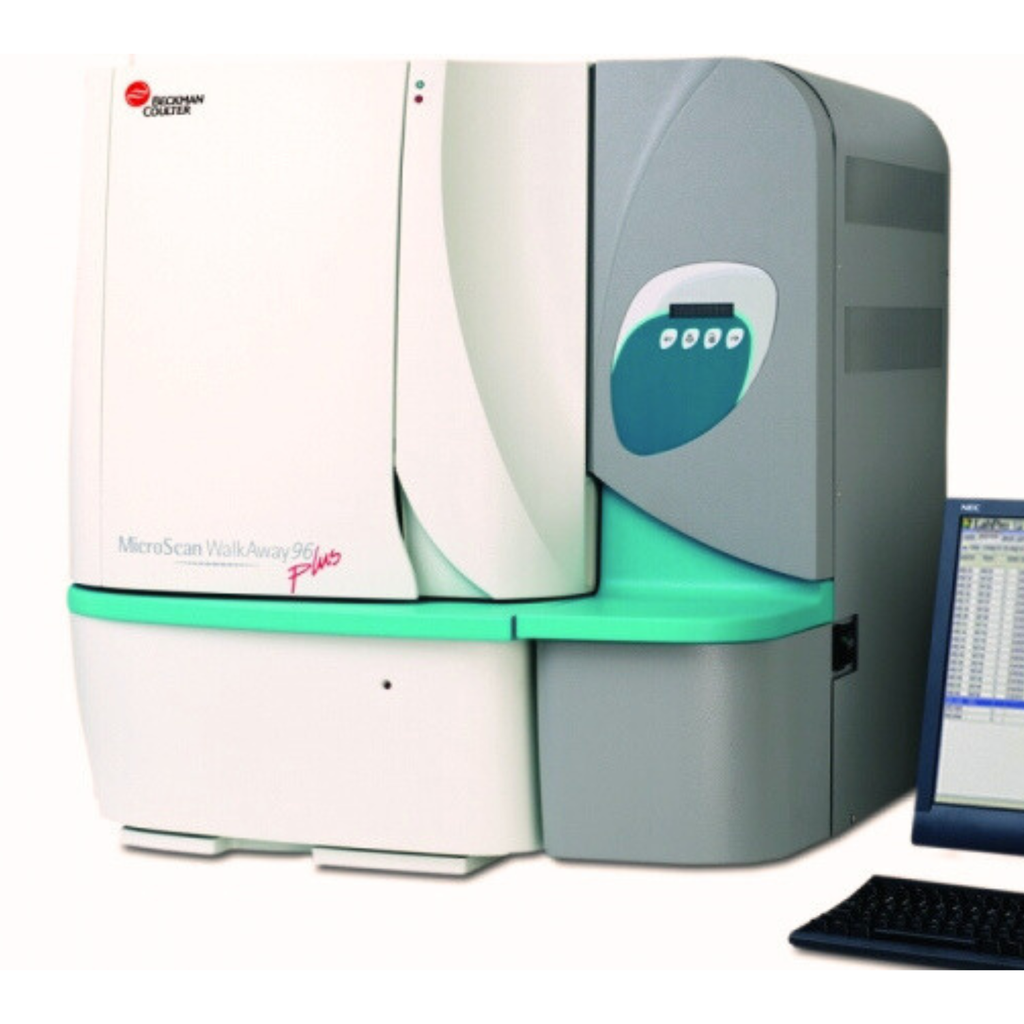

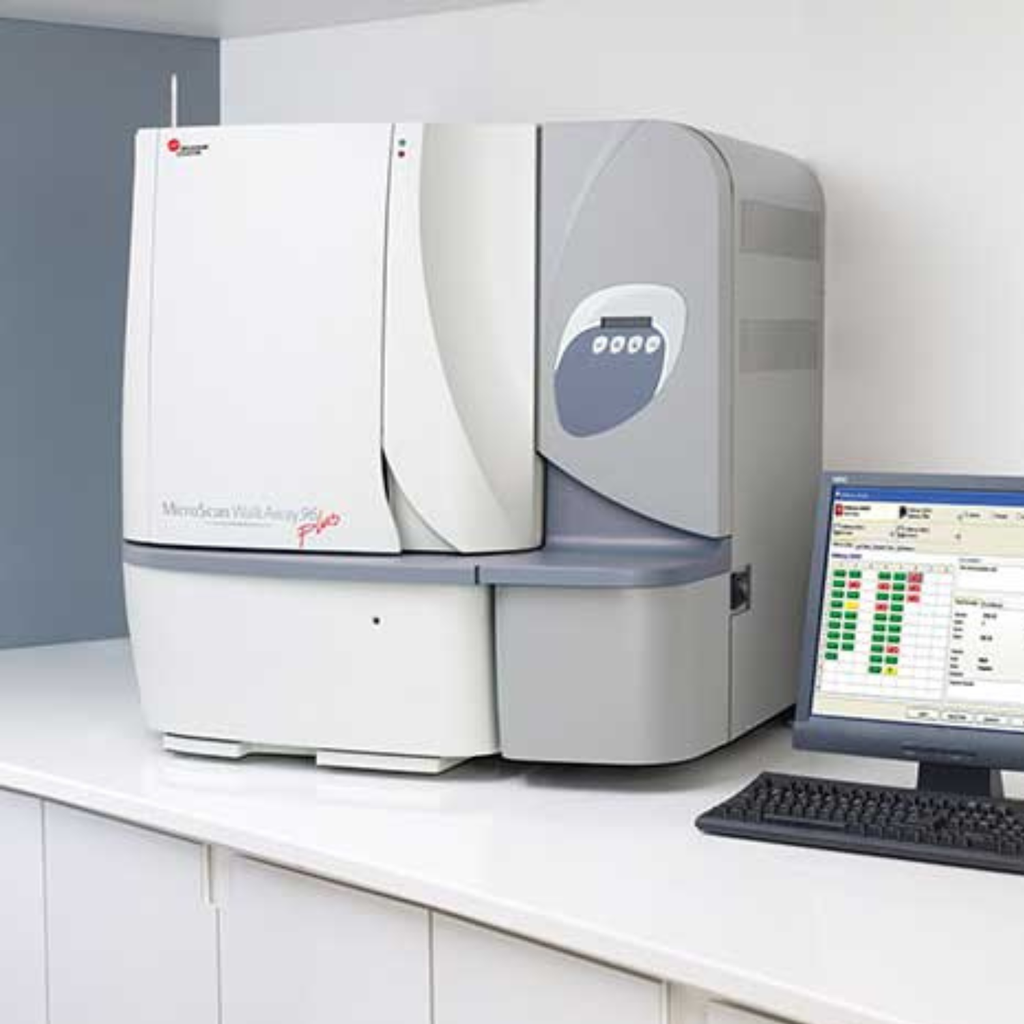

Walkaway 96 Plus System Instrument only

https://www.blockscientific.com/web/image/product.template/128657/image_1920?unique=9b2bc13

Engineered for optimal performance and flexibility

In Stock

$ 0.00 0.0 USD $ 0.00

$ 0.00

    This combination does not exist.

    Request a quote

    Get your quote in 90 minutes.
    Trade in your older analyzers to recover budget.
    Bundle equipment, reagents, & consumables into one cost-saving order.
    Enlist our local service tech to keep uptime high.
    Lower your cost per test.

    Product code: B1018-284

    Manufacturer: Beckman Coulter

    WHY CHOOSE BLOCK SCIENTIFIC?
    See why in 2 mins.

    Description

    The WalkAway 96 plus system keeps you on the forefront of ID/AST testing while streamlining workflow through intelligent automation. This microbiology system is ideal for mid- to high-volume usage.

    ID/AST System Advances for Your Laboratory


    Experience the benefits of proven technology

    • Delivers gold-standard accuracy for microorganism identification and susceptibility testing
    • Enables simultaneous processing of conventional, rapid and specialty panels on a single, automated platform
    • Delivers accurate emerging resistance detection for the toughest pathogens, including VISA, VRSA and MRSA2
    • Supports efficient high-volume testing when paired with the Copan WASP DT: Walk-Away Specimen Processor* and the Bruker MALDI Biotyper system†
    • Processes Rapid and Specialty ID panels for reduced turnaround time when speed matters
    • Can be used with our highly rated service program experts who work closely with you to help your microbiology laboratory reach new levels of operational efficiency
    • Provides level-sensing and high-volume fluids to minimize maintenance and enhance ease of use

    Achieve greater efficiency


    The MicroScan WalkAway plus system includes LabPro Information Manager software designed to simplify workflow and minimize technologist interaction, while accommodating differing regional and institutional environments through extensive customization features. Our customizable LabPro AlertEX software automates detection of atypical results for quick reporting and directs staff to the most appropriate action, based on customized institutional procedures. Optional LabPro Connect software allows you to consolidate data from multiple testing systems on epidemiology reports right in your laboratory office.


    The system's direct minimum inhibitory concentration (MIC) detects emerging resistance as it occurs, providing accurate results without reliance on historical data or virtual MIC.2

    Why Choose the MicroScan WalkAway 96 Plus

    The MicroScan WalkAway 96 Plus allows you to expand the range of services for your clients and improve the quality of service. The devices help improve the condition of patients and ensure comfortable working conditions for specialists.

    Reliability

    Efficiency​
    Accuracy and Informativeness
    Ease of Use
    Trust and Recognition from Doctors Worldwide

    Specifications

    Physical
    • WalkAway-96 plus: 37" H x 38.5" W x 34" D; 400 lbs
    • Color: Two-tone gray
    • Interface connector:
      • Serial interface connector (two): daisy-chained RS 232
      • "In" port toward computer, "out" port away from computer
    Power Requirements
    • Line voltage: 100/120/220/230/240 VAC selected by internal jumpers
    • Line frequency: 50/60 Hz ±5%
    • Line current:
      • 9 A (nominal), 11 A (maximum) for 100/120 VAC operation
      • 4.5 A (nominal), 5.5 A (maximum) for 220/230/240 VAC operation
    • Power loss protection: Circuitry provided to ensure fail-safe operation; power interruption will not result in a hazard; automatic restart
    • Heat generation: 3,400 BTU/hour
    Recommended Laboratory Environmental Conditions
    • Temperature (operating): 15°C to 27°C
    • Humidity: 30% to 80% RH (no condensation)
    Safety Requirements
    • Ground impedance: 0.1 Ω (maximum)
    • Dielectric withstand voltage: No dielectric breakdown (at 1,400 VDC for one minute)
    • Leakage current: <0.5 mA
    • Removable power cord:
      • 3-conductor, 14 AWG (100/120 V)
      • 3-conductor, 16 AWG (220/230/240 V)
    • Interlocks: Provided on panel access door, reagent dispense drawer and service hatch
    • Power plug: NEMA type 5-15P / IEC 60320 type C14
    • Standards: Certified to UL STD 61010-1 (2nd ed), CAN/CSA STD C22.2 Nos. 61010-1 (2004), 61010-2-081 (2004), 61010-2-101 (2004), ISO 9000, CE, IVDD, EMC STDs IEC61326-1:2005-12, and IEC61326-2-6:2005-12
    Overcurrent Protection
    • Fusing: Primary fuses F1 and F2, IEC (5x20 mm), time lag/slow-blow type, 250 V rated
      • 12 A (100/120 V)
      • 6.3 A (220/230/240 V)
    • Light source:
      • Tungsten-halogen lamp, 50 W, 12 V
      • Tungsten-halogen lamp, TL 2½, 15 W, 10.5 V
    Display 2-line, 20-character alphanumeric vacuum fluorescence display
    Temperature Control Set by computer at 35°C ±1°C
    Barcode Code 39 standard conformance
    Performance

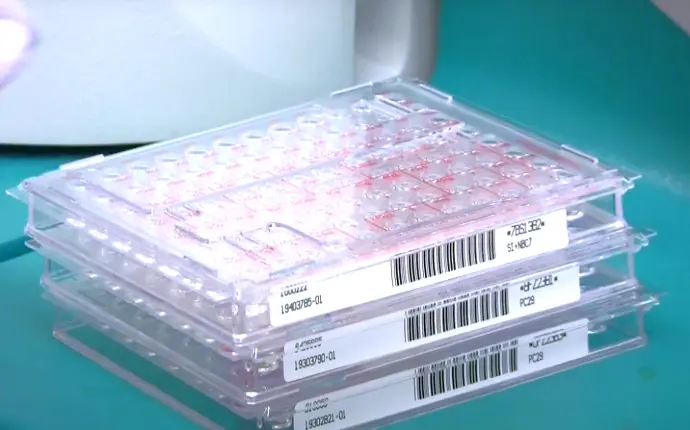

    • Panel capacity for WalkAway-96 plus: 96 MicroScan panels with 96 wells each of any type compatible with the incubator environment; up to eight panel towers with 12 panels each
    • Incubation temperature stability: ±1°C
    • Reagent type capacity: 10 reagents total
    • Reagent dispense volume (μl): 15 to 75
    • Oil dispense volume (μl): 60 to 150
    • Operator interface: Front-panel controls, PC keyboard, monitor, and LabPro software
