ACCURACY MATTERS​

Preventing the spread of antimicrobial-resistant (AMR) bacteria within hospitals and communities requires correct identification of AMR pathogens as quickly as possible. MicroScan systems use direct MICs for the detection of emerging resistance, providing accurate and timely results without reliance on historical data.

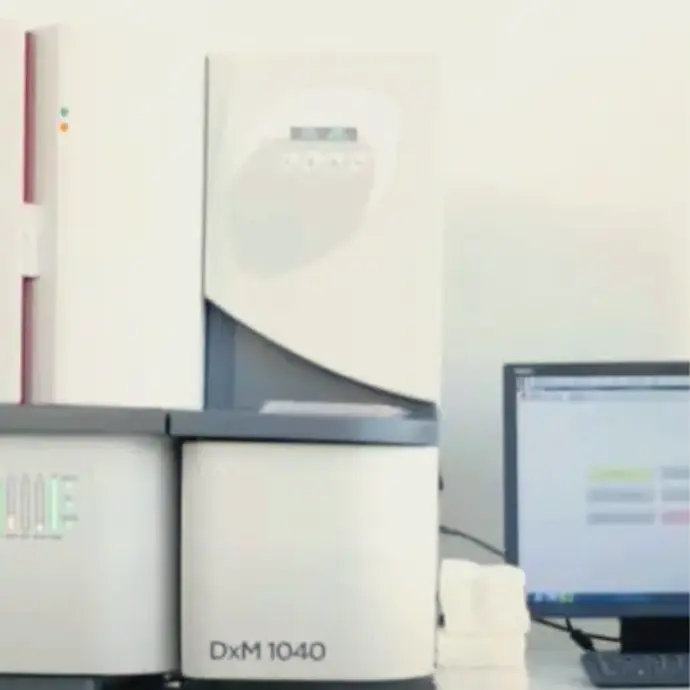

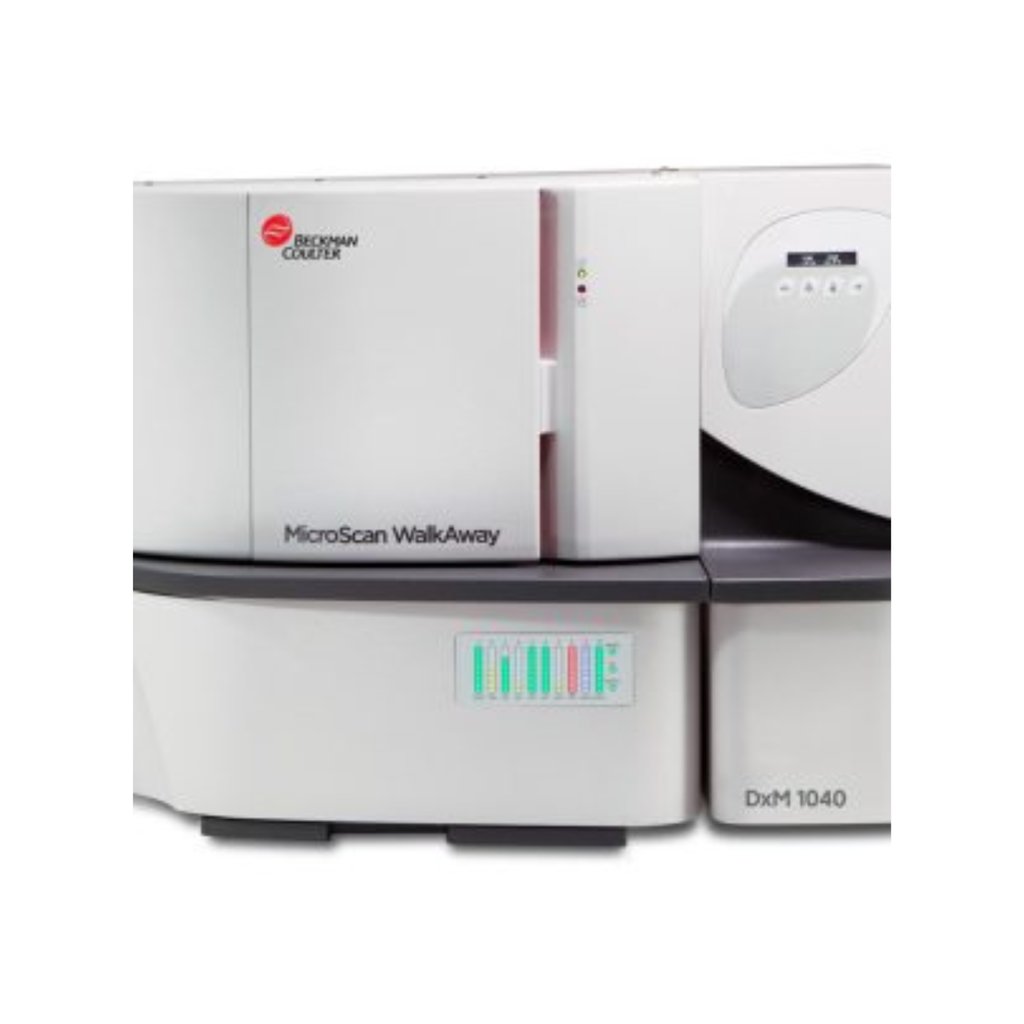

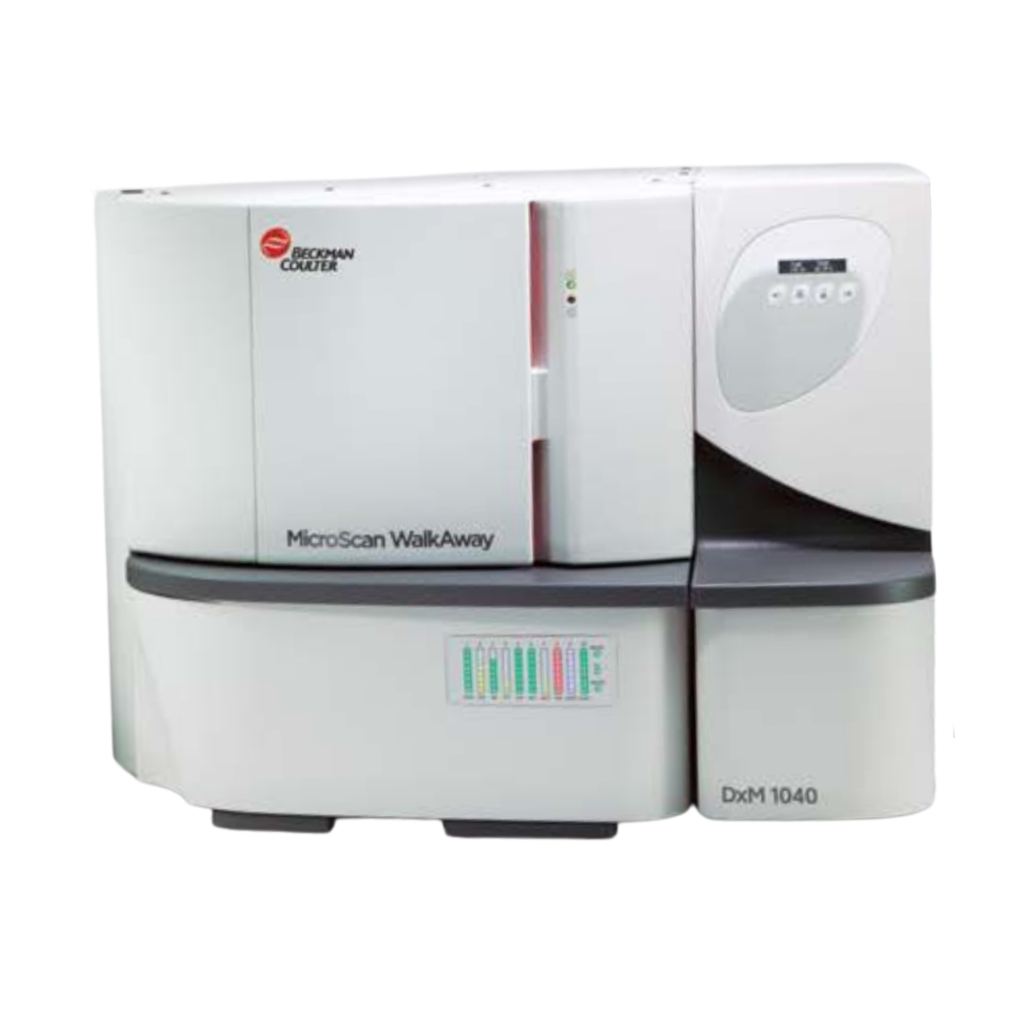

The DxM 1040 MicroScan WalkAway system uses real MIC technology to provide accurate results that laboratories need to operate efficiently.

Request a quote now

Key Features

Rapid Microorganism Identification and Susceptibility Testing:

• 600 samples per hour: The DxM 1040 MicroScan WalkAway system offers high throughput with the ability to process up to 600 samples per hour, significantly improving laboratory efficiency and reducing turnaround time.
• Direct MIC Detection: It accurately detects emerging resistance such as carbapenemase-resistant Enterobacteriaceae (CRE), ESBL, MRSA, VRE, and other tough pathogens, making it essential for global health surveillance and infection control.

Advanced Resistance Detection:

• The system includes advanced resistance detection for difficult pathogens, ensuring you can identify resistance patterns early, which is crucial for effective patient therapy.
• It has the ability to detect carbapenemase-resistant organisms, a key focus for addressing global antimicrobial resistance issues.

Fast Turnaround Time:

• With enhanced electronics and advanced vacuum pump technology, the system offers faster target exchange time, resulting in quicker time-to-result and reducing operational burden.

Low Maintenance:

• Integrated ion source cleaning, controlled by a simple mouse click, eliminates the need for vacuum release, ensuring minimal downtime and ongoing lab efficiency.

Optimized Workflow:

• LabPro MR software enables customizable data management, helping labs tailor the system’s performance to their specific needs. The software automates atypical result detection, directing technicians to the most appropriate actions based on customized institutional procedures.
• The system is capable of processing conventional, rapid, and specialty panels simultaneously on a single automated platform, providing comprehensive and flexible testing.

Compact Design:

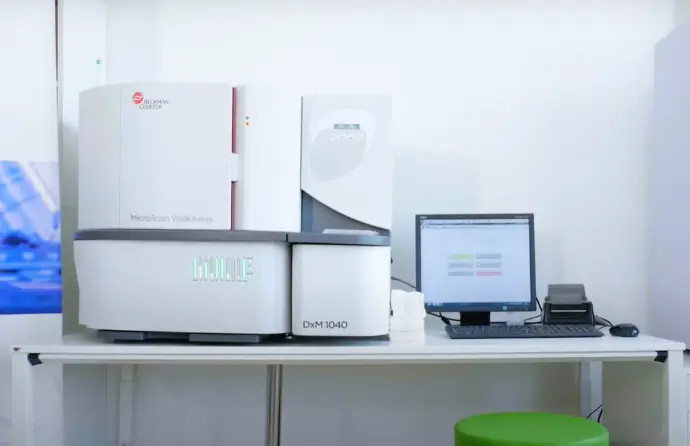

• The DxM 1040 MicroScan WalkAway is a benchtop solution with a small footprint, making it ideal for labs with space limitations. It weighs 376 lbs and features a compact design without compromising performance.

User-Friendly Interface:

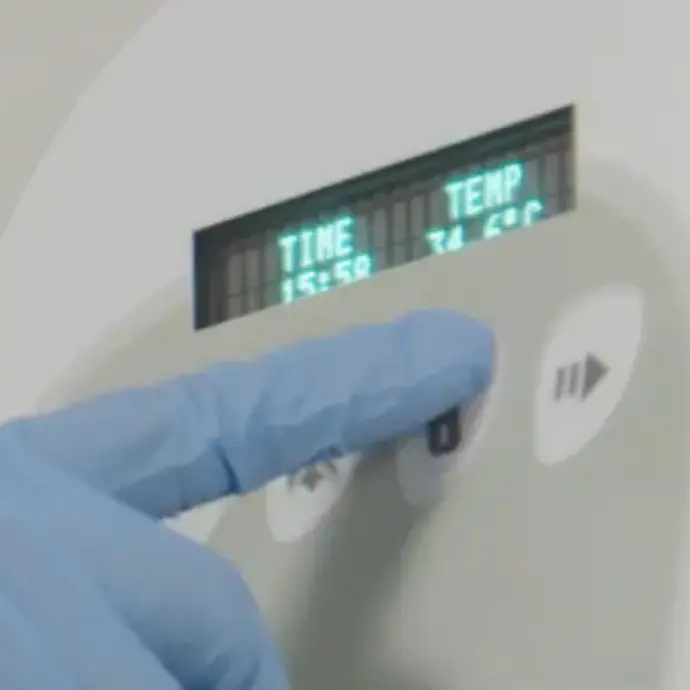

• The system’s 2-line, 20-character vacuum fluorescence display and front-panel controls make it easy to use, while the PC keyboard and LabPro software enable intuitive system navigation and data management.

Performance and Capacity:

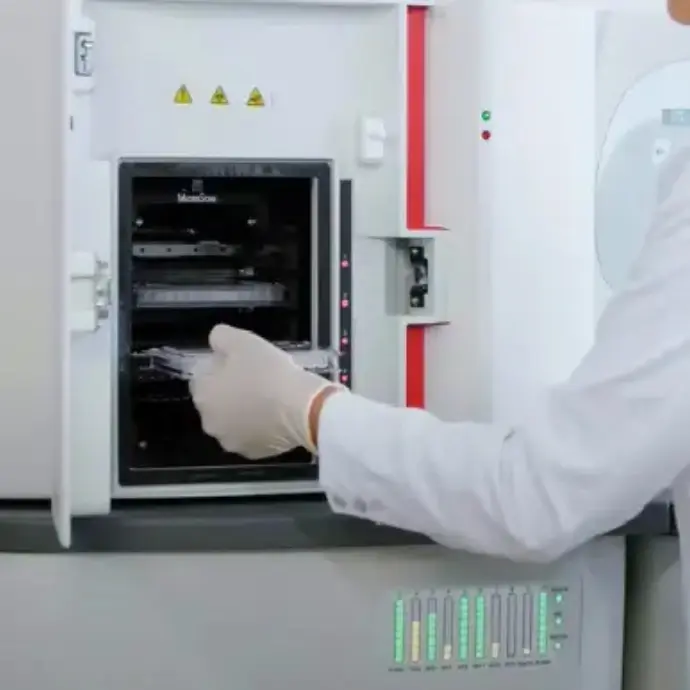

• Panel Capacity: The system accommodates 40 MicroScan panels with 96 wells each for ID/AST testing.
• Incubation Temperature Stability: Ensures consistent incubation at 35°C ±1°C, vital for accurate testing and reliable results.
• Reagent and Oil Dispense Volume: Reagent dispense volume ranges from 15 to 90 µl depending on the reagent, ensuring precise sample preparation.

Physical and Environmental Specifications:

• Dimensions: 29" H x 38.5" W x 34" D
• Weight: 376 lbs
• Power Requirements: 220/230/240 VAC, 50/60 Hz with overcurrent protection and circuitry for fail-safe operation.
• Operating Conditions: Temperature: 59°F to 80.6°F, Humidity: 30% to 80% RH (non-condensing).

Safety and Compliance:

• The system complies with various safety standards, including IEC 61010-1, EN 61010-1, and UL 61010-1, ensuring reliable operation and safety in clinical settings.

Applications:

• Microorganism Identification: The DxM 1040 MicroScan WalkAway system is ideal for identifying a wide range of pathogens, including bacteria and fungi, in clinical microbiology labs.
• Antimicrobial Susceptibility Testing (AST): The system provides rapid, accurate AST results, helping clinicians make informed decisions about appropriate antibiotic therapy.
• Hospital and Clinical Labs: In hospitals and clinical labs, this system is essential for infection control and antimicrobial stewardship, ensuring patients receive the most effective treatment based on accurate and timely pathogen identification and resistance profiling.

Experience the Benefits

Backed by more than 40 years of ID/AST testing experience, MicroScan microbiology systems improve workflow by minimizing the need for confirmatory retesting and providing accurate, first-time results for laboratories of every size.​
