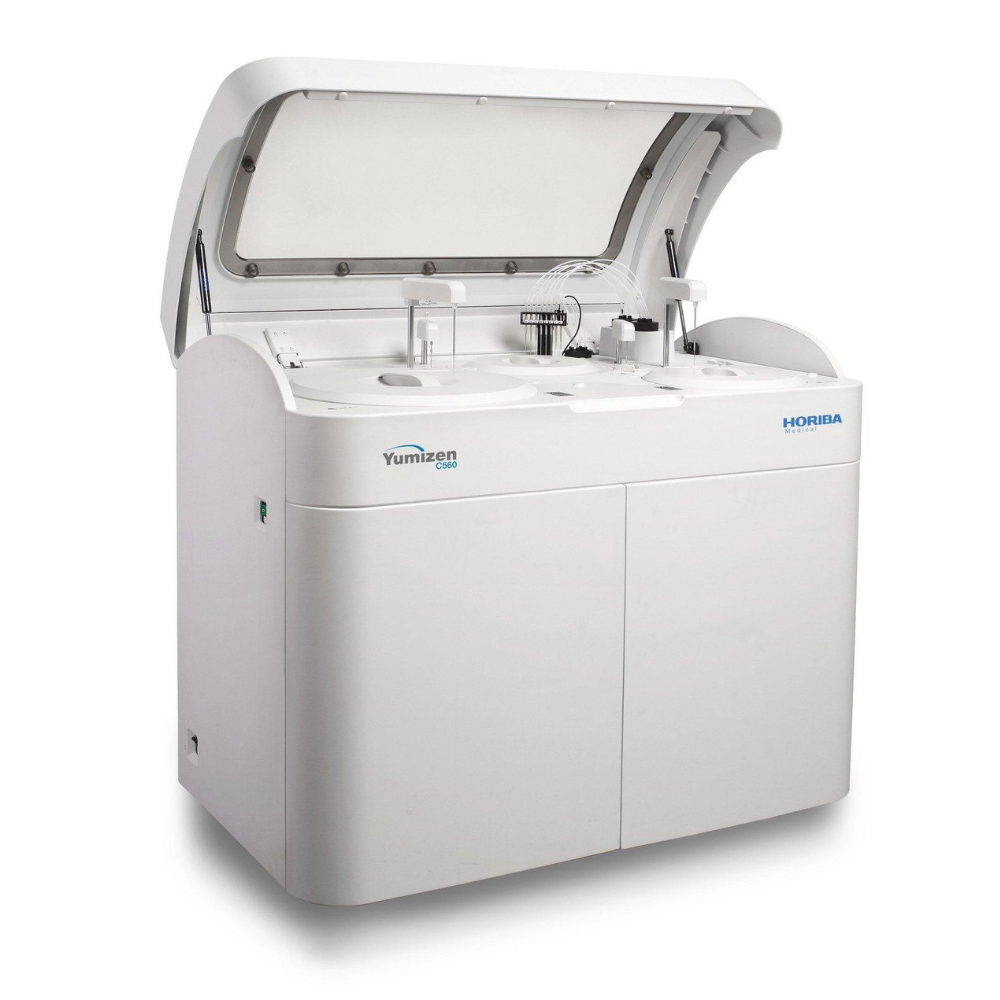

Horiba Yumizen C560 Clinical Chemistry Analyzer

https://www.blockscientific.com/web/image/product.template/121860/image_1920?unique=4399c7a

    This combination does not exist.

    This product no longer supported.
    We recommend the Beckman Coulter / Olympus AU480 Chemistry Analyzer as an ideal replacement.
    Click the model name above to learn more.

    Product code: 5300002219

    Manufacturer: Horiba

    Shipping Weight: 661.00lbs (299.82kg)

    Meet your sales rep Ben Morton, for the Philippines region.

    Would you like to book 15 minutes on Ben Morton's calendar to get the best value for your budget?

    Yes, book the time

    ​



    Free, Simple Tactics to Lower Your Cost Per Test

    Get the free guide that shows exactly how to reduce your cost per test using 35 proven tactics, or use the free, fast cost-per-test reduction planner to build a simple, personalized action plan with tactics your lab can implement to reduce wasted budget this year.

    Free, Simple Tactics to Lower Your Cost Per Test

    Get the free guide that shows exactly how to reduce your cost per test using 35 proven tactics, or use the free, fast cost-per-test reduction planner to build a simple, personalized action plan with tactics your lab can implement to reduce wasted budget this year.

    Instrument & Reagent Synergy: The Workhorse!

    The Yumizen C560 clinical chemistry analyzer paired with high-quality POINTE reagents provides you with quick and reliable test results.

    AΒ standalone floor modelΒ analyzer,Β offering many high-end features typically found only in large integrated systems, the perfect workhorse forΒ mid-size laboratories, from your trusted partner in clinical diagnostics, HORIBA Medical.

    Features

    • High-quality barcode-packaged reagents
    • Advanced, intuitive software
    • Minimal maintenance
    • Ease of access hardware design

    Specification

    System Function

    • Fully automated, discrete, random access, with STATΒ sample priority capability
    • Throughput: 400 photometric tests/hour, up to 240 tests/hour for ISE
    • Measuring principles: Absorbance Photometry, Turbidimetry
    • Methodology: End-point, Fixed-time, Kinetic, ISE (Optional)
    • Single/Dual/Triple/Quadruple reagent chemistries, Monochromatic/Bichromatic
    • Programming:Β User defined profiles and calculation

    Reaction System

    Reaction Rotor Rotating tray, 90 cuvettes with automatic washing
    Cuvette Optical length 5mm
    Reaction Volume 120-360 ΞΌL
    Operating Temperature 37Β°C
    Temperature Fluctuation Β±0.1Β°C
    Mixing System 2 independent mixers

    Sample Handling

    Sample Tray 90 positions for primary or secondary tubes and sample cups
    Sample Volume 1.5-45 ΞΌL, step by 0.1 ΞΌL
    Sample Probe Liquid level detection, clot detection, and collision protection
    Probe Cleaning Interior and exterior automatic probe washing, carry-over < 0.05%
    Automatic Sample Dilution Pre-dilution and post-dilution
    Dilution Ratio Up to 1:150
    Dilution Vessel Permanent Cuvette

    Optical System

    Light Source Halogen-tungsten lamp
    Photometer Reversed optics, grating photometry
    Wavelength 340nm, 380nm, 412nm, 450nm, 505nm, 546nm, 570nm, 605nm, 660nm, 700nm, 740nm, 800nm
    Absorbance Range 0-3.3 Abs (10mm conversion)
    Resolution 0.0001 Abs

    Internal Bar Code Reader

    • Sample/ Reagent barcode reading including Codabar,Β ITF (Interleaved Two of Five), code128, code39, UPC/EAN,Β Code93; Bi-directional LIS Interface transmission

    Control and Calibration

    Calibration Mode Linear (one-point, two-point, and multi-point), Logit-Log 4P, Logit-Log 5P, Spline, Exponential, Polynomial, Parabola
    Control Rules Westgard multi-rule, Levy-Jennings, Cumulative sum check, Twin plot

    ISE Module (optional)

    • Optional selection of K+, Na+, Cl-
    • Throughput: Up to 240 tests per hour

    Operation Unit

    Interface RS-232, Network Port, USB/parallel port

    Reagent Handling

    Reagent Tray 80 positions in refrigerated compartment
    Reagent Volume (2-10Β°C) R1: 45-350 Β΅L, R2-R4: 10-350 Β΅L
    Reagent Probe Liquid level detection, collision protection, and inventory check
    Probe Cleaning Interior and exterior automatic probe washing

    Working Conditions

    Power Supply 200-240V, 50/60Hz, 1500V or 110-130V, 60Hz, 1500V
    Temperature 15-30Β°C
    Humidity 35-85%
    Water Consumption cS20 L/hour, Deionized water
    Dimension 46in x 28in x 45in (W x D x H)
    Weight 661 lb
