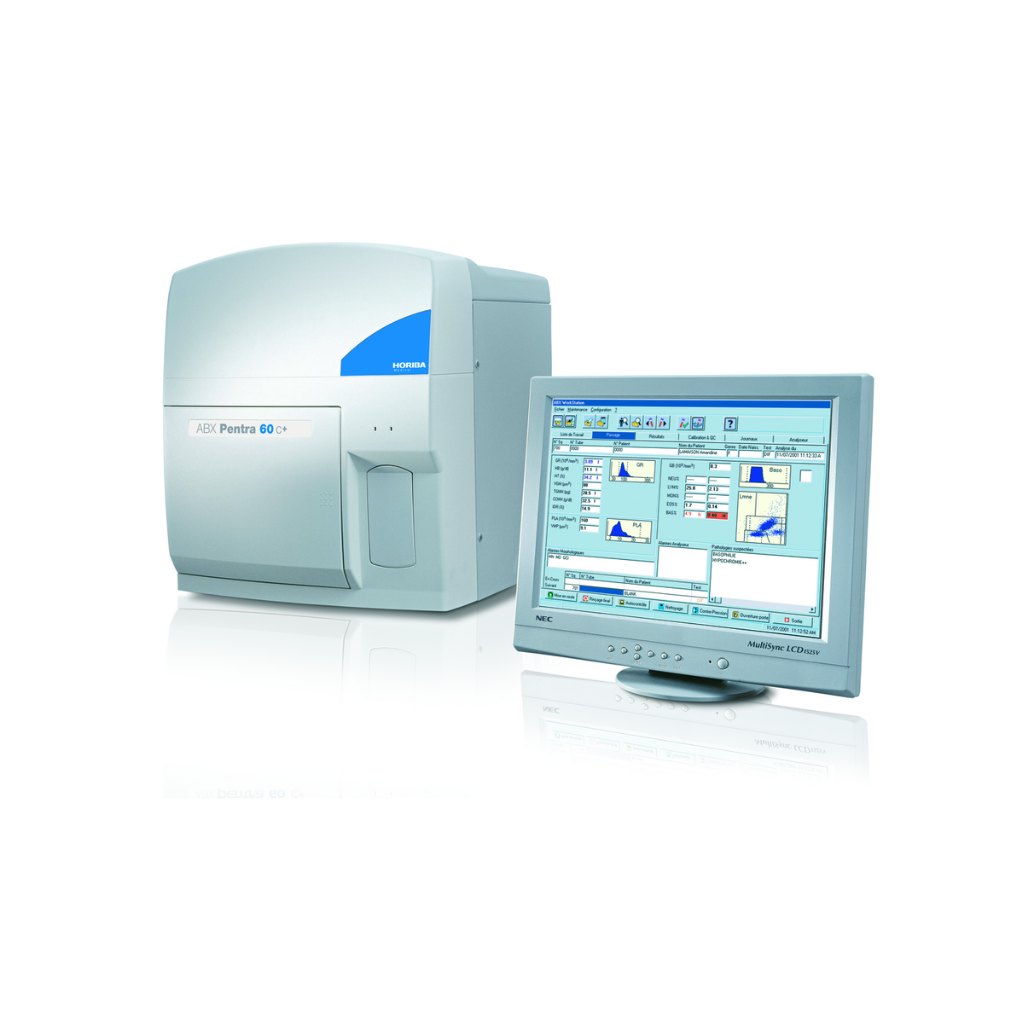

Horiba ABX Pentra 60 C+ Hematology Analyzer

https://www.blockscientific.com/web/image/product.template/121982/image_1920?unique=33acf15

PENTRA 60 C+ SYSTEM

In Stock

$ 0.00 0.0 USD $ 0.00

$ 0.00

    This combination does not exist.

    Request a quote

    This product no longer supported.
    We recommend the Sysmex XN 550 Automated Hematology Analyzer as an ideal replacement.
    Click the model name above to learn more.

    Product code: 5300001398

    Manufacturer: Horiba

    Shipping Weight: 35.00lbs (15.88kg)

    WHY CHOOSE BLOCK SCIENTIFIC?
    See why in 2 mins.

    ABX Pentra 60 C+ Hematology Analyzer

    A Dedicated Workstation for a Powerful Management of your Workflow

    • Closed tube
    • 26 parameters
    • CBC / 5 Part DIFF
    • Data management on stand-alone PC.
    • Micro-sampling from whole blood (CBC : 30 µL - DIFF: 53 µL)
    • Cytochemistry, Impedance (real cell volume measurement) & Optical (analysis of the internal cellular structure by measuring light absorbance) - DHSS* Technology.
    • Perfect homogenization of blood samples with reagents - MDSS** Technology.


    * DHSS : Double Hydrodynamic Sequential System
    ** MDSS : Multi-Distribution Sampling System

    *This product may not be available in your country or region at this time. Please contact your HORIBA Medical sales representative or distributor for more information.

    Features

    • Throughput: Up to 60 samples/hour
    • Reagents: Only 4 onboard reagents and 1 diluent
    • Perfect differentiation of the 5 WBC sub-populations with DHSS* Technology
    • 3 histograms for RBC, BAS/WBC and PLT together with the 5 DIFF Matrix.
    • Basophils counted through specific channel

    High resolution matrix includes the determination of 2 additional subpopulations (% and #): Atypical Lymphocytes (ALY***) and Large Immature Cells (LIC***)


    * DHSS : Double Hydrodynamic Sequential System
    *** RUO parameters (Research Use Only)

    Specification


    Technical

    Weight 77 lbs / 35 kg
    Power supply 100 to 240 V (± 10%) - 50 to 60 Hz.
    Dimensions 20.3 x 17.5 x 19 in / 51, 5 cm x 44, 5 cm x 48 cm
    Printer Laser printer
    Throughput 60 tests/hour.
    Data management Color screen: 15 in. monitor (800 x 600px)
    Windows XP Prof.TM
    User-defined flagging limits
    Transmit patient & QC to LIS
    Uni-directional or bi-directional connection
    Communication Protocols: ABX / ASTM
    CD-ROM drive / Floppy disk
    2 serial ports minimum
    USB Keyboard / USB Mouse
    Memory 10,000 results + Graphics
    Quality Control Management 12 selectable QC files
    XB: 60 Operator selectable batches with statistics (20 samples per batch)
    Within run
    Levey-Jennings Graphs
    Logs Reagents, calibration, maintenance, errors, blank cycle

    Samples

    60 samples/hour (closed tube)

    Parameters (26) WBC, NEU# & NEU%, LYM# & LYM%, MON# & MON%, EOS# & EOS%, BAS# & BAS%, ALY# & ALY%*, LIC# & LIC%*, RBC, HGB, HCT, MCV, MCH, MCHC, RDW, PLT, MPV, PCT*, PDW*.
    Graphs High-definition LMNE matrix
    PLT, RBC, WBC/BAS curves.
    Blood Volume CBC mode : 30 µL
    CBC + DIFF mode : 53 µL
    Stability 48 hours post-draw stability
    Operating sample mode Closed tube
    Identification Alphanumeric. Bar-code reader (optional)

    * RUO parameters (Research Use Only)

    Results

    Parameters Precision (%CV) Linearity
    WBC < 2.0 0-120 x 10³/µL
    RBC < 2.0 0-8 x 106/µL
    HGB < 1.0 0-24 g/dl
    HCT < 2.0 0-67%
    PLT (whole blood) < 5.0 0-1900 x 10³/µL
    PLT (PLT concentrate) < 5.0 0-2800 x 10³/µL
