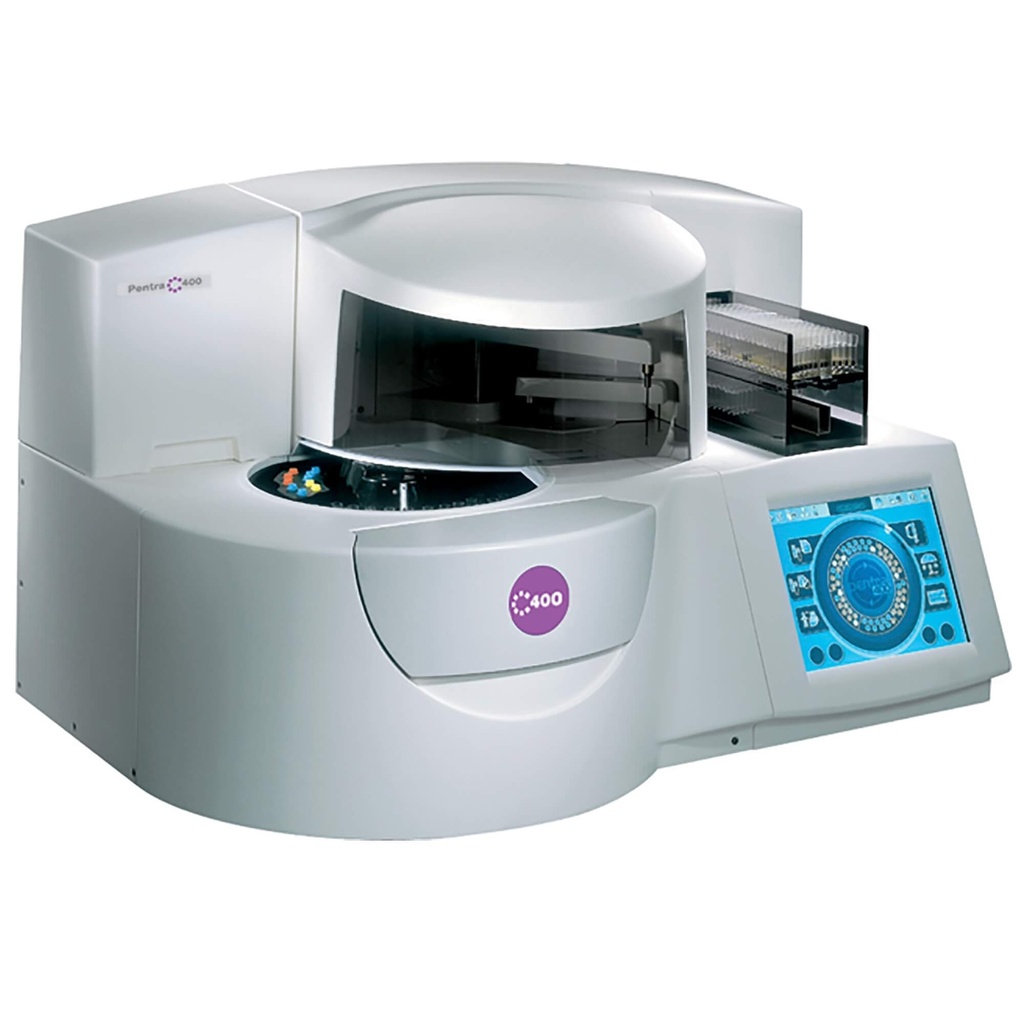

Horiba Pentra C400 Clinical Chemistry Analyzer with ISE Module
Product code: 5300001388
Manufacturer: Horiba
Shipping Weight: 264.00lbs (119.75kg)
Meet your sales rep Lee Doughton, for the West USA region.
Would you like to schedule a 30-minute consultation with Lee Doughton?
Yes, Schedule a callPC400 + ISE MODULE SYSTEM
Free, Simple Tactics to Lower Your Cost Per Test
Get the free guide that shows exactly how to reduce your cost per test using 35 proven tactics, or use the free, fast cost-per-test reduction planner to build a simple, personalized action plan with tactics your lab can implement to reduce wasted budget this year.
Free, Simple Tactics to Lower Your Cost Per Test
Get the free guide that shows exactly how to reduce your cost per test using 35 proven tactics, or use the free, fast cost-per-test reduction planner to build a simple, personalized action plan with tactics your lab can implement to reduce wasted budget this year.
Features
From routine to specific tests, perform them all on a single system
- 55 on-board assays
- Innovative cassette format
- Integrated work station and validation station
- Touch screen
- Real-time viewing of your workflow
General Description
- Analysis Method Types:
- Spectrophotometry: Colorimetry and Turbidimetry
- Potentiometry: Direct (Serum or Plasma) and Indirect (Urine)
- Up to 55 assays on board
- Optional ISE Module (Na+, K+, Cl-)
- Maximum Throughput: 420 test/h
- CE Marked
Sample Handling
- Sample Capacity: 6 racks with 10 sample positions for primary tubes or cups
- Continuous loading
- Positive Sample Identification: Integrated Barcode Reader and Tube Presence Detector
- Sample Integrity:Level, Shock and Clot Detection
- Sample Collection Format: 0.7, 4, 5, 7 and 10 mL (diameter: 16mm)
- Sample Specimen: Serum, Plasma, Urine, CSF, Whole Blood, Homogeneous Fluids
- Sample Volume: 2 to 380 µL
- Automatic Sample Dilution: from 1/2 to 1/22,500
- ISE: 20 µL (Indirect) or 60 µL (Direct)
- Automatic Post Concentration: from x2.0 to x 10.0
- Automatic Re-run
Calibrator/Control Handling
- Calibrator/Controls Positioning on Sample or Reagent Tray
- Automatic Standard Dilution Series:
- Dilution Factors: Main Direct 1/2 - 1/150
- Dilution Factors: Main Indirect 1/2 - 1/1508
Reagent Handling
- 52 Reagent positions on board:
- 44 in a closed refrigerated area (2-10°C)
- 8 at room temperature
- Positive Reagent Identification:Integrated Barcode Reader
- Reagent Probe : Level Detection and Preheating
- Reagent Management with Cassettes: Automated Reagent On-board Stability Check plus Test Countdown with automatic back-up
- Reagent Volume: from 2 to 600 µL
Reaction System
- Reaction Volume: 150 to 600 µL
- Reaction Temperature: Air bath at 37°C
- Photometer Reaction Cycle:12 seconds
- Mixing with Teflon-coated Stirrer
- Reaction Time: 1 to 100 cycles
- Disposable Acrylic Cuvettes
- Automatic Cuvette Changer
- Cuvette Capacity: 36 segments (432 cuvettes)
- 7 Integrated Calculation Algorithms
