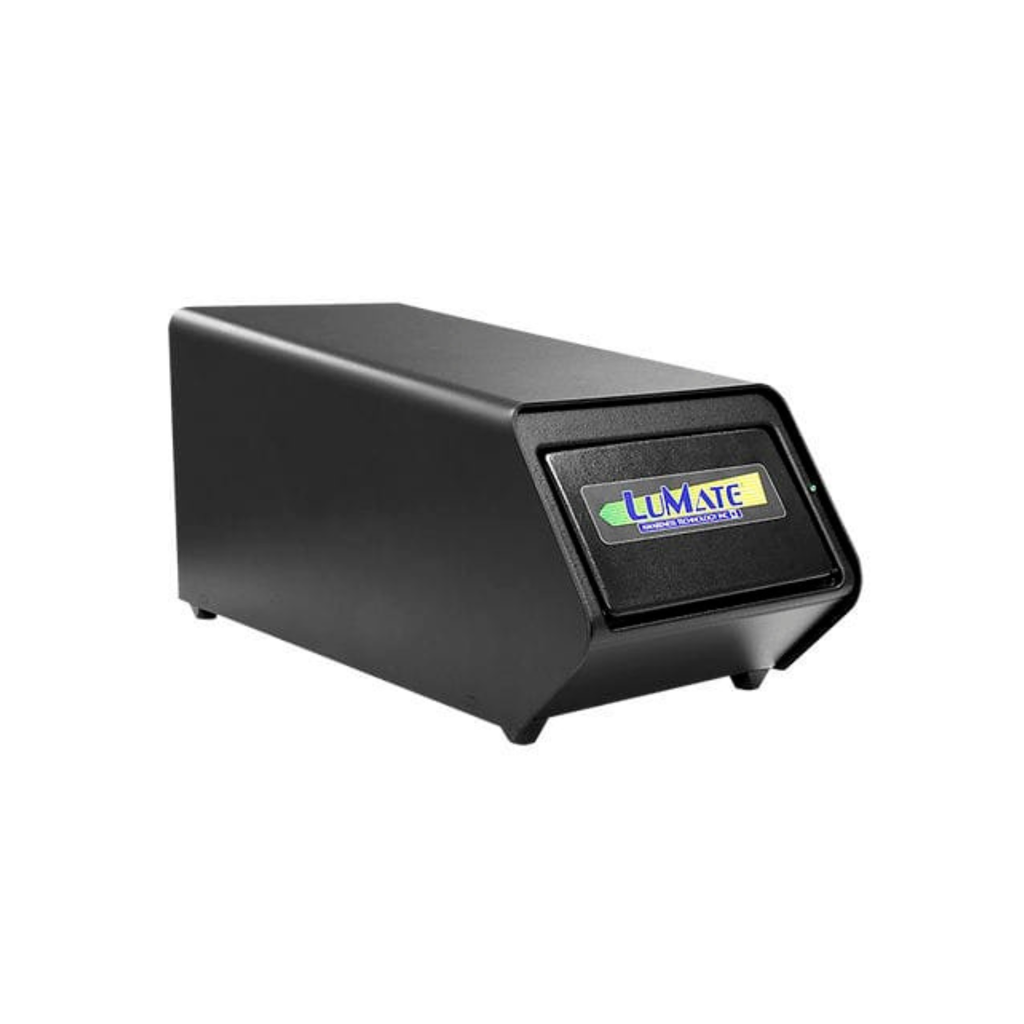

Awareness Technology LuMate 4400 Microplate Luminometer

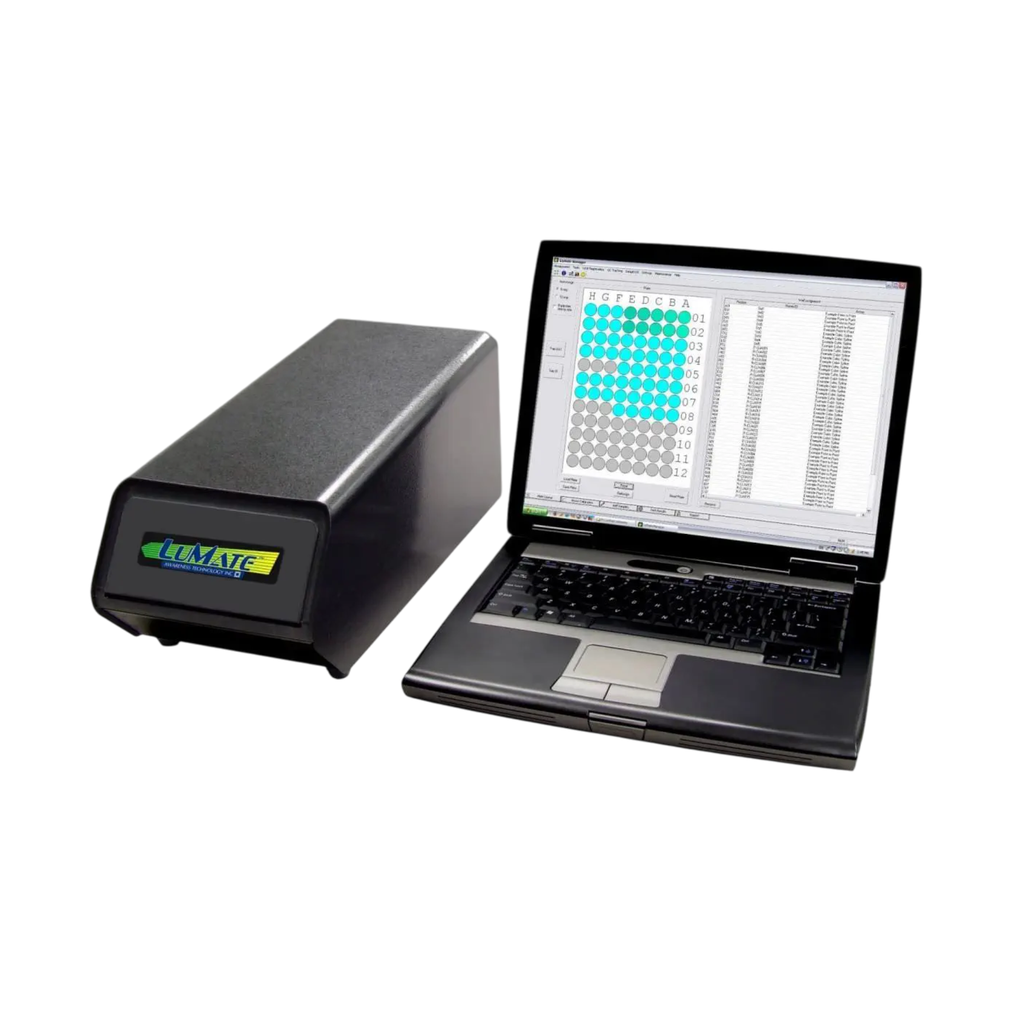

Lumate is a compact microplate glow luminometer. Its streamlined design with minimal footprint offers superb optics to fit any size lab bench.Lumate teams up with your PC to provide full access to high level software for curve fitting, reporting, and data storage to meet the requirements of modern laboratories. Instrument and software come ready to ‘plug and play’ with your PC.
Economical- Self referencing – User programmable CLIA for every Lab.
Easy and automatic
LuMate runs hormones and many other applications, with on-board calculations for point-to-point, linear and log regressions, and log logit modes. A built-in reference assures continuous calibration.
| Optical | |
| Detection Mode | Glow luminescence |
| Sensitivity/Detection limit | HRP 1x 10 -18 moles, ALP 1x10-21 moles. |
| Linear Dynamic Range | 10 6 RLU |
| Cross talk | Less than 2.5 x 10-4 |
| Detector | Photomultiplier (PMT) |
| Spectral Response Range | 300 - 650nm. |
| Peak Wave length | 400 nm. |
| Vessel | 96 wells in strip tray or plate. |
| Electronic | |
| PC connection | USB Port. |
| Microprocessor | eZ80. |
| Plate Transport | Stepper motor. |
| Power Requirements | 100V - 250V AC, 50 - 60Hz (auto-sensing). |
| Software | |
| PC interface | LuMate® Manager Software - included, PC not included |
| Calculation Modes | Multi-point calibration with Regression or Point-to-Point curve fit with curve storage option, Relative Light Units. |
| Additional Features | User-programmable open system with curve plotting and editing. |
| Selectable plate formatting with duplicates and end-reading selections. | |
| Multiple timed reading options. | |
| Automatic interpretation options. | |
| Alphanumeric test naming. | |
| Flags and error messages. | |
| Other | |
| Certifications | NRTL listed, CE mark. |
| Enclosure | All metal enclosure |
| Dimensions | Approx. 7.5x8.0x16.5(19x20.3x42cm). Weighs 11lbs.(5kg) |
Block Scientific, a leading lab equipment supplier based in New York, offers the LuMate® 4400 Microplate Luminometer by Awareness Technology. The economical, self-referencing LuMate® features user-programmable chemiluminescence capability and comes with improved reading precision and upgraded software features.
Main Features Of Microplate Luminometer
This glow luminometer offers a streamlined design with minimal footprint to fit any size lab bench.
- Compact and economical microplate luminometer
- Increased range and sensitivity of CLIA (Chemi Luminescent Immuno Assaays) for labs of all sizes
- Reads a 96-well microplate and calculates results instantly and automatically
- Runs hormones and many other applications, with on-board calculations for point-to point, linear and log regressions, and log logit modes
- Allows the user to select plate layout options, and customize layouts for individual tests or panels/screens
- Teams up with your PC to provide full access to high level software, reporting, curve fitting, and data storage to meet lab productivity requirements
- QC tracking and built-in reference that assures continuous calibration
- NRTL and CE mark
Software Features
The LuMate® software includes critical QC tracking, with individual selections for both calibrators and controls, absorbance or concentration, for mean, SD, CV, plus Levey-Jennings plots, and more. It provides a patient database with multiple reporting options. This luminometer’s software includes the following calculation modes:
- Cutoff, Cutoff Control, Cutoff Calibrator
- Point-to-point curve fit, multipoint % absorbance, linear regressions, (linear, log, logit-log)
- Polynomial and sigmoidal regressions (2nd, 3rd, 4th order, dose response, cubic spline)
