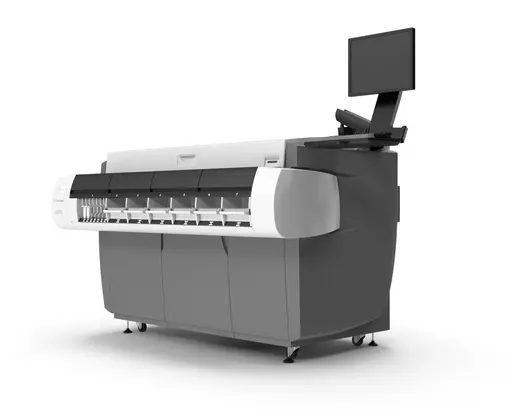

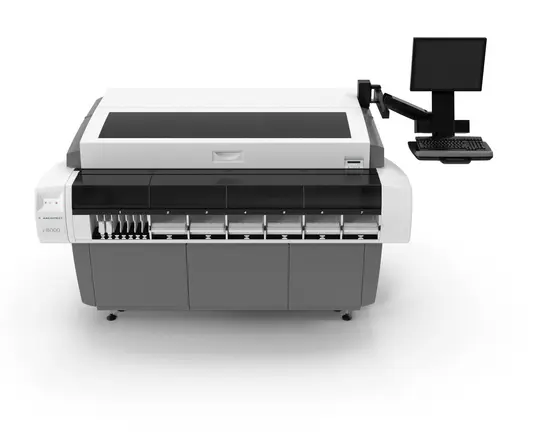

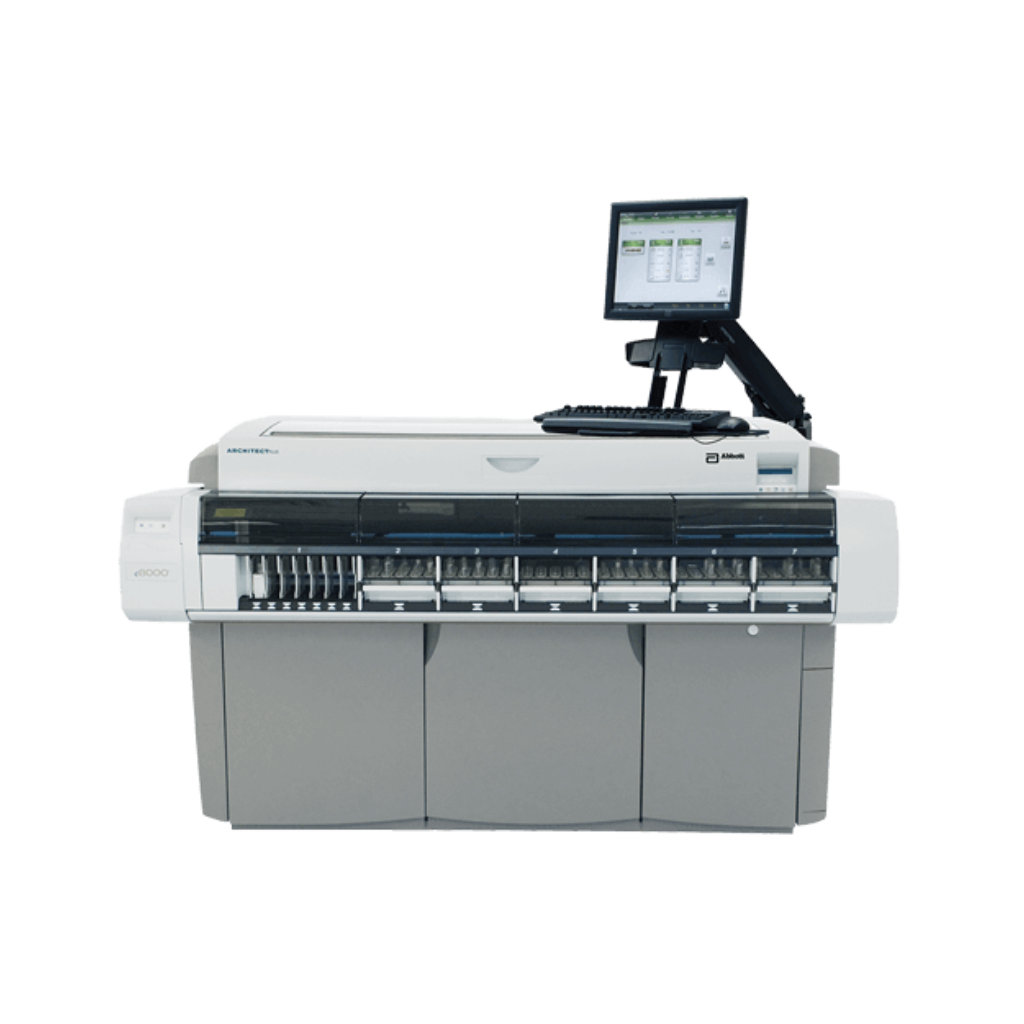

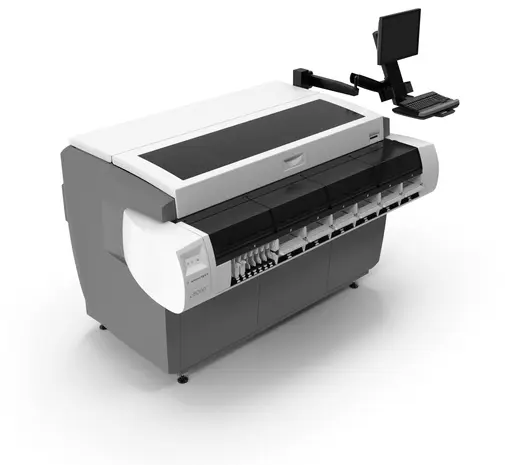

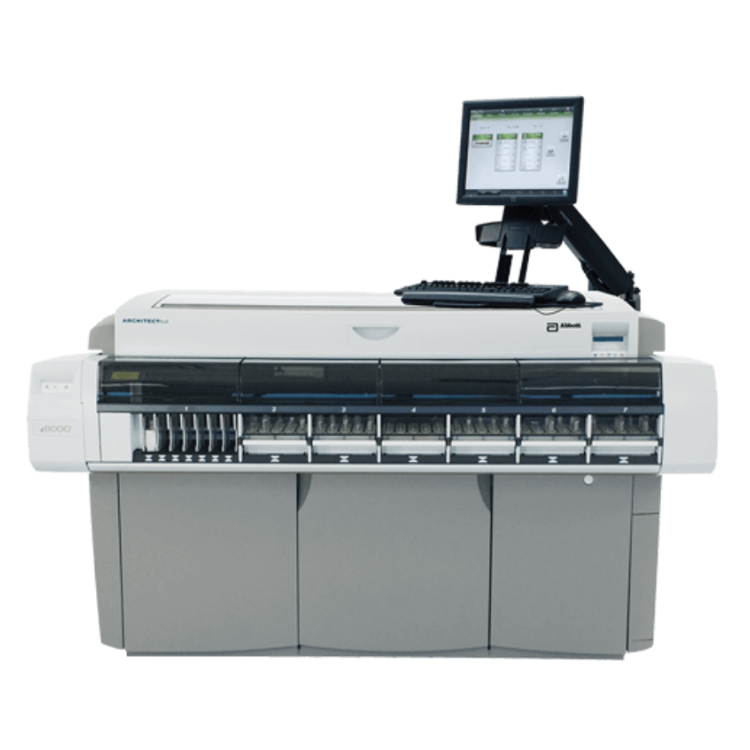

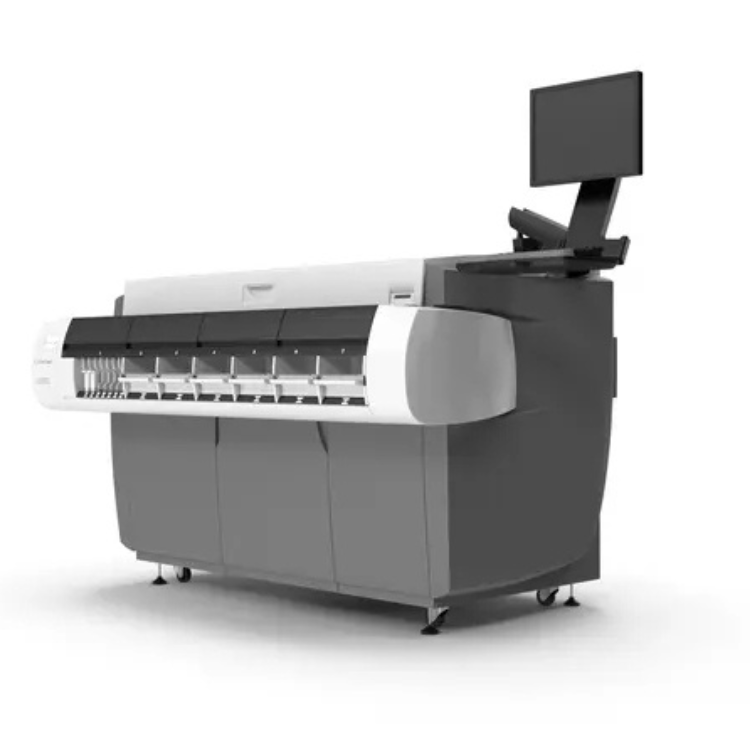

Abbott Architect c8000
Product code: ABT-ARC-C8000
Manufacturer: Abbott
WHY CHOOSE BLOCK SCIENTIFIC?
See why in 2 mins.
Abbott Architect c8000
Boost efficiency and precision in your lab with the Abbott Architect i2000 Immunology Analyzer, renowned for its exceptional accuracy, fast throughput, and robust performance in high-volume testing environments. Trusted worldwide by leading clinical laboratories, this analyzer delivers consistent, reliable results for critical immunoassays, streamlining your workflow and enhancing patient care. Whether you're managing immunosuppressive drug monitoring, infectious disease screening, or routine hormonal assays, the Abbott Architect i2000 helps you deliver excellence—every single time.
Why Labs Still Choose the Abbott Architect c8000
Proven performance under high-volume demands
With robust throughput and validated consistency, the Architect c8000 handles demanding workloads with ease—making it a reliable solution for busy core labs and clinical environments.
Broad assay menu with reagent efficiency
Offering a versatile test menu and optimized reagent usage, the c8000 supports a wide range of chemistry applications while helping labs control operational costs.
Seamless workflow integration with minimal training
Backed by Abbott’s reputation for clinical innovation, the c8000 integrates smoothly into existing systems and requires minimal user training—ideal for labs upgrading equipment or expanding capacity.
Why Buy Yours from Block Scientific?
At Block Scientific, we offer more than just equipment—we deliver diagnostic confidence and full-lifecycle support.
Fastest quote turnaround in the industry. Get your personalized quote in just 90 minutes, backed by real human follow-up—no bots, no delays.
Trade-in credit for your existing analyzer. Lower your upgrade costs by applying the value of your current system.
Bundled savings on analyzer + reagents + consumables. Reduce overall cost-per-test with our custom bundles—see our reagents page for details.
Nationwide on-site service and installation. With 40+ years in diagnostics, we support every analyzer with certified techs across the U.S.—read more on our services page.
Fully refurbished to OEM specifications. Our factory-trained engineers rebuild every unit using original components and protocols.
30-day satisfaction guarantee. Risk-free testing with full return privileges.
Easy financing. Choose from a range of flexible financing options designed for clinical labs.
Key Features & Workflow Benefits
- High Throughput with Small Sample Volumes: Process up to 1,200 tests/hour with average sample volume of just 7 µL—ideal for pediatric, geriatric, or limited-volume specimens.
- Versatile Assay Capacity: Run 65+ onboard assays including Na⁺, K⁺, and Cl⁻ ISEs, all in liquid, ready-to-use format—no reconstitution or prep needed.
- Built-In Auto-Dilution & Error Reduction: Auto-dilution and detection for clots, bubbles, and sample interference (hemolysis, lipemia, icterus) improves test accuracy and minimizes reruns.
- High-Capacity Carousel with RSH Loading: Load up to 215 samples using dual input (carousel + random access RSH) to maximize walkaway time and minimize manual handling.
- Massive Data Storage: Store up to 50,000 sample results onboard—simplify LIS interfacing and long-term traceability.
- Minimal Calibration & Reagent Waste: Average calibration cycle of 25 days and onboard reagent stability of up to 65 days helps reduce operational overhead.
- Integrated Diagnostics & Remote Access: Monitor performance via AbbottLink® remote diagnostics, with bi-directional LIS interface for seamless data integration.
Technical Specifications
| Methods | Photometric, Potentiometric, Turbidimetric |
| Maximum Throughput | Up to 1,200 tests/hour |
| Sample Types | Serum, Plasma, Whole Blood, Urine, CSF |
Sample Tubes | Height: 72-102 mm Diameter: 9.6-16.1 mm |
Sample Cup | Yes (50 µl dead volume) |
Sample Capacity | 215 |
Sample Barcode Types | Code 39, Codabar, Interleaved 2 of 5, Code 128 |
Sample Result Storage | 50,000 |
Sample Volume | 1.5-35 µL, Average: 7.2 µL |
Automatic Dilution | Yes |
Sample Probe Carryover | <1000 ppm WB to WB ≤0.1 ppm WB to Serum |
Reagent Capacity | Up to 121 refrigerated positions plus patented ISE (Na+, K+ and Cl-) |
Reagent Type | >97% liquid ready-to-use |
Reagent Onboard Stability | 5-65 days, Average: 38 days |
Calibration Frequency |
1-60 days, Average: 25 days |
Sample, Clot and Bubble Detection | Yes |
Reagent Pressure Monitoring | No |
Sample Interference Measurement | Yes: Hemolysis, Icterus, and Lipemia |
System Control Center | 1 SCC, with color touchscreen monitor, keyboard and mouse |
Onboard Maintenance Records | Yes |
Online Error Code Help | Yes |
Host Interface | Bidirectional, serial RS-232 interface, host query option available |
Remote Diagnostics | AbbottLink |
Dimensions (H x W x D) | 48" x 79" x 49" 121.9 x 200.6 x 124.5 cm |
Weight | 1,425 lbs 646.4 kg |
Electrical Requirements | AC 180-264V, 47-63 Hz, 20 amp |
Water Requirements | Deionized water 25 liters/hour during normal operation |
Heat Output* | 3400 BTU/hr, running mode |
Sample Loading | RSH + Carousel |
*Values provided represent the typical output in “Running” mode for the system processing module and sample handler. A maximum value of 389 BTU/hr was obtained for the System Control Center (SCC) using the ARCHITECT i2000SR as a representative system. Values obtained during an internal study. Data is on file with Abbott.
What Comes in a Refurbished Package
Every fully refurbished Abbott Architect c8000 unit from Block Scientific includes:
Analyzer rebuilt to OEM specifications by factory-trained engineers
New tubing, seals, lamps, and critical wear components
Calibrated and QC-verified before shipment
Full system control center (SCC) with touchscreen, keyboard, and mouse
RSH + carousel sample loading accessories
Power cables, manuals, and LIS interface support
Optional starter kit: reagents, sample cups, controls, and barcodes
Service, Warranty & Financing Options
All refurbished c8000 analyzers include:
- 30-day satisfaction guarantee
- Optional 1-year extended warranty with on-site service
- Access to our nationwide service network
- Technical support from certified diagnostic engineers
- Flexible financing options tailored to your lab’s budget
Let our team walk you through leasing, monthly payment plans, and reagent bundling options for maximum affordability.
Get a Quote in 90 Minutes
Ready to upgrade to a high-throughput chemistry system backed by expert support?
Submit your request now and get a custom quote in just 90 minutes, guaranteed.
FAQs
Q: What’s the average Abbott Architect c8000 price?
Pricing depends on configuration and condition. Fully refurbished units start around $28,000–$38,000. Bundle with reagents for additional discounts—ask for today’s promotion.
Q: Is this analyzer compatible with our LIS?
Yes. The Architect c8000 supports bi-directional RS-232 host interfacing and is compatible with most major LIS providers.
Q: Do refurbished units include ISE modules?
Yes. All Block Scientific refurbished units include Na⁺, K⁺, and Cl⁻ ISE modules unless requested otherwise. Custom configurations available.
Q: Can I trade in my old chemistry analyzer?
Absolutely. We offer a trade-in credit program for most major brands—send us your model and condition for a valuation.
Compliance & Disclaimers
All refurbished analyzers sold by Block Scientific are Class 1 laser products, calibrated and quality-verified before delivery. Refurbished units are not covered by the original manufacturer’s warranty. All performance claims are based on manufacturer documentation and internal refurbishment standards.
