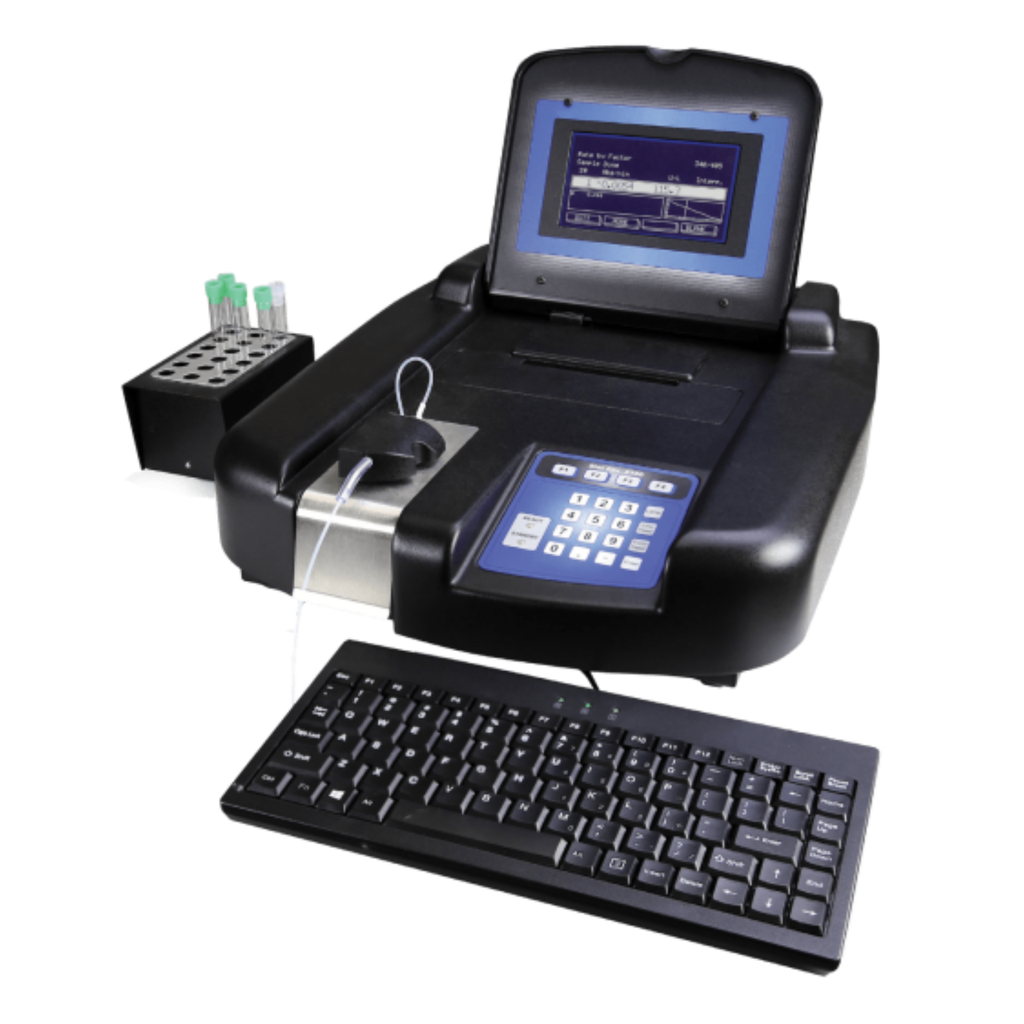

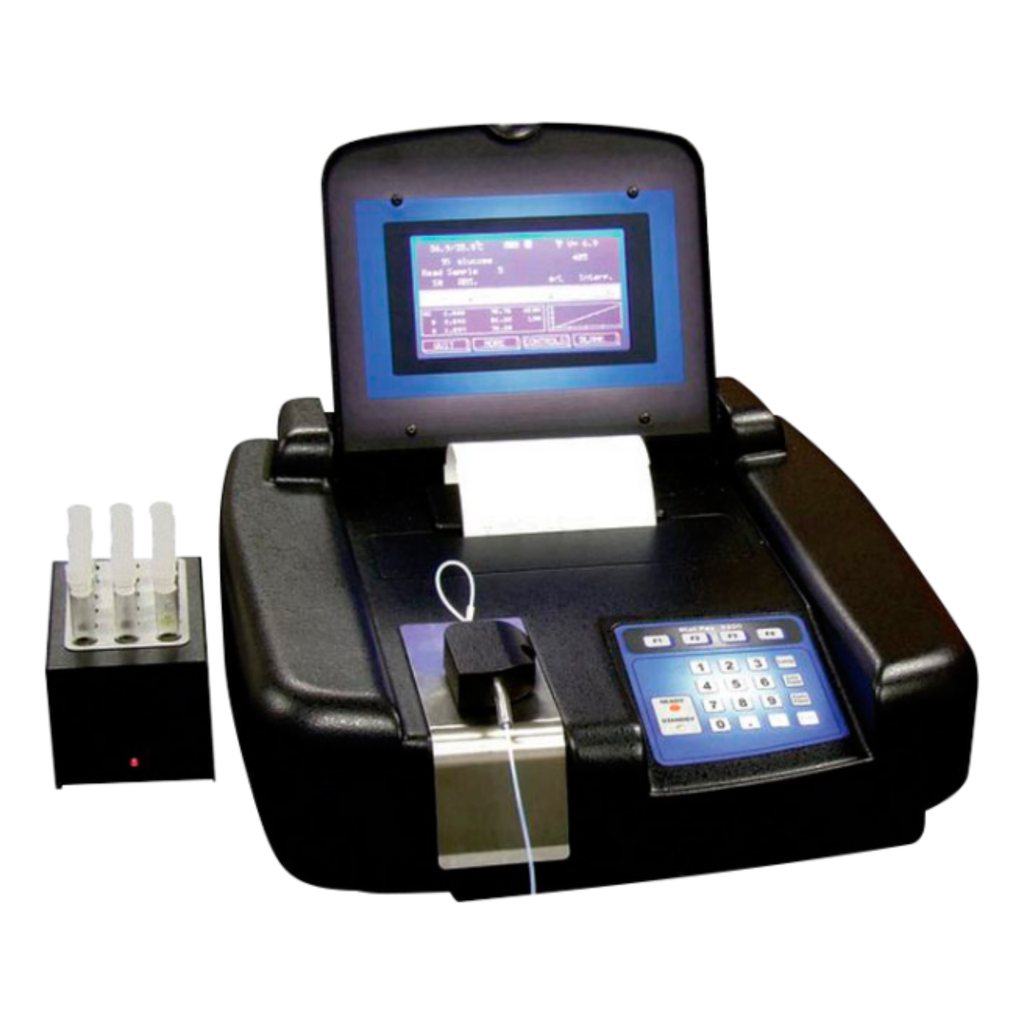

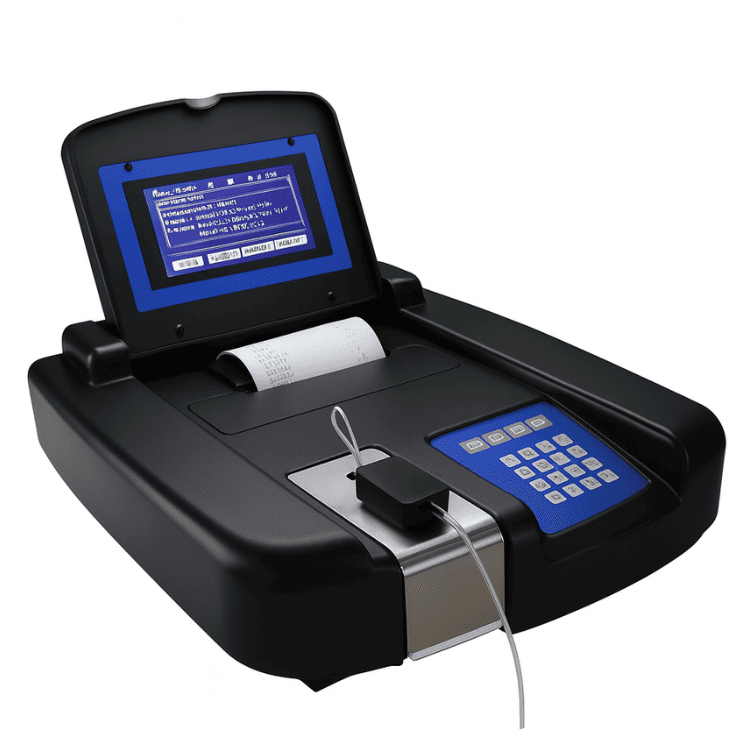

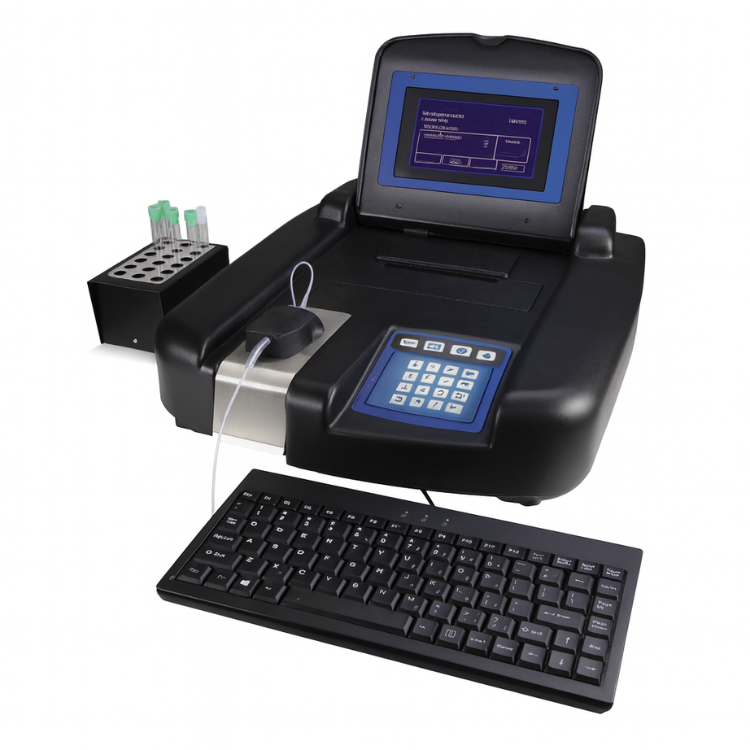

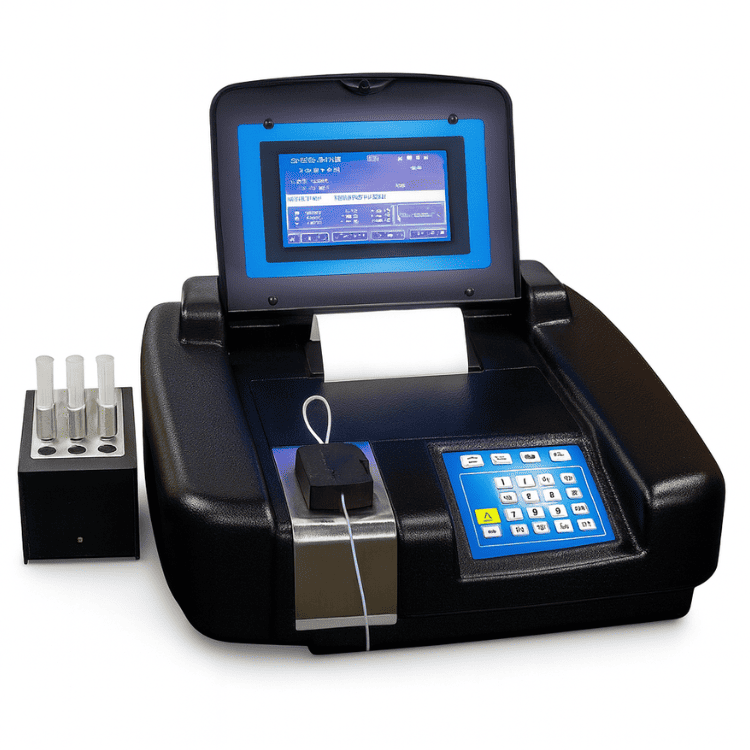

Awareness Technology STAT FAX 3300 Chemistry Analyzer
The STAT FAX 3300 Chemistry Analyzer is a versatile laboratory instrument designed for efficient and precise analytical work. It features a flip-up display screen with a large 240 x 128 pixel graphical display. It is designed to read and calculate the results of in-vitro diagnostic assays. Equipped with a large graphical display, the reader provides absorbance and concentration readings at or near the available wavelength. The flexible Stat Fax 3300 is equipped with multiple, self-prompting operating modes to meet the varying demands and requirements of any facility. The modes include Absorbance Mode, Standard Mode, Rate Mode, Factor Mode, Multi-point Mode, and Index Mode. Moreover, the instrument accepts standard 12 mm round tubes as well as 1 cm square cuvettes.
The STAT FAX 3300 Analyzer by Awareness Technology is engineered for robust performance in demanding laboratory environments. It helps streamline analytical processes, allowing for organized work lists, efficient test runs, and comprehensive data management. Its vacuum system enhances sampling speed and minimizes carryover. For convenient data input, the analyzer supports a plug-in standard external keyboard.
Features and Benefits
- Optical system temperature controlled to 37 C
- Bi-chromatic with 6 filters and spaces for 2 optional additional filters (340-700nm)
- Adapts for use with 12mm round tubes, 1cm square cuvettes, or built-in flow cell
- Vacuum system speeds sampling and reduces carryover
- Calibration traceable to NIST standard
- Use the optional external keyboard for easy entry of patient names and data
- Use Redi-Check to monitor accuracy, linearity, and repeatability the easy way
- Peltier cell cooling available as an option
- View kinetic plots in real time
- Calculate kinetic results based on the entire read time OR the segment you choose.
Additional Features
Stat Fax 3300 stores patient data
- Create a work list.
- Run the tests.
- Print Patient Reports.
Output data to:
- On-board 40-column
- Thermal printer
- External printer
- PC and LIS.
Stat Fax 3300 stores control values
- and offers many QC options to assure linear kinetics and reliable results.
- Create Levey-Jennings plots for QC
Stat Fax 3300 stores calibrations and standard curves
- For each run, choose a new curve or use a stored curve with options to revert to the previous curve and to modify multi- point curves.
Specifications
Photometer Tube or cuvette |
-0.2 to 2.5 absorbance units |
Sampling
Sample Volume - Flowcell |
programmable 250 L-750 L |
Electronic
Processor | Z180 |
Operating Modes
Single and multipoint standardization |
live graphical display of reaction |
Special Features
Password Protection for test results and parameters
Levey Jennings, patient reports, job creation
User tests |
|
Enclosure | fire retardant ABS and steel |
Dimensions |
16" (40cm) x 14.5" (37 cm) x 5.5" (14 cm)* |
Weight | (17 lbs) 6.4 kg |
Power | 100-240 VAC (self-sensing) 50/60 HZ input; 50 watts |
