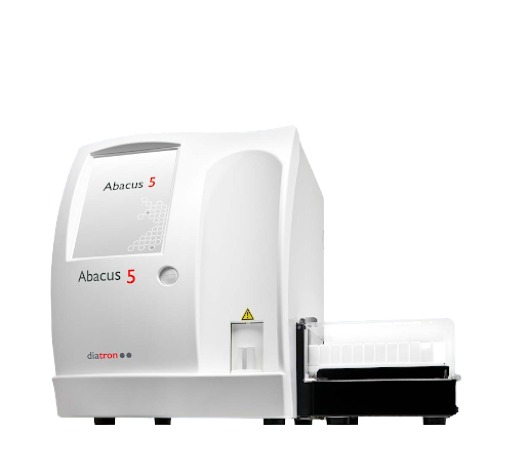

Diatron Abacus 5 with Autosampler
Product code: A5AS-1
Shipping Weight: 77.00lbs (34.93kg)
WHY CHOOSE BLOCK SCIENTIFIC?
See why in 2 mins.
Abacus 5 (5-Part) CBC Analyzer with Autosampler, NEW- Includes Installation, Training, Initial Reagent Set, 1 Year Warranty

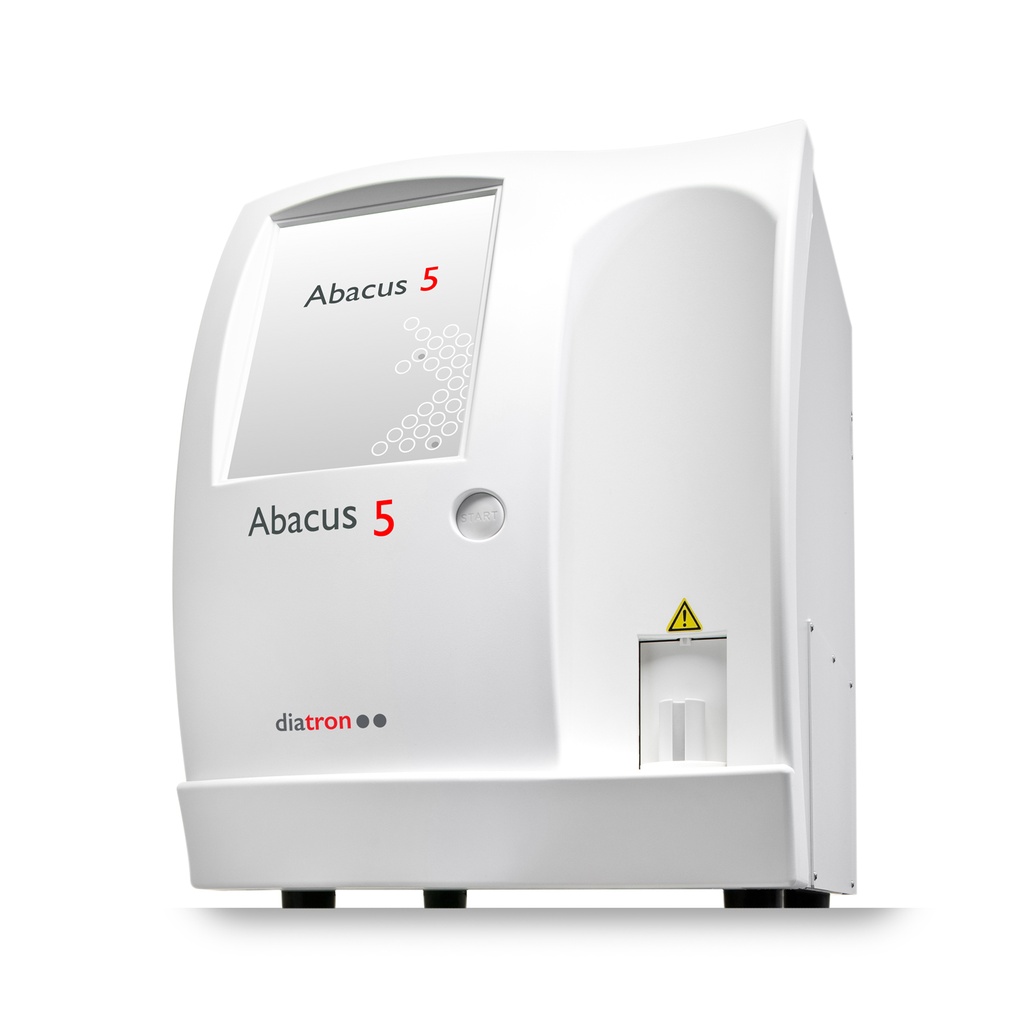

Analyzer Overview
The Abacus 5 system is a compact, bench top, 60 test/hour, 5-part laser WBC differential analyzer with two sampling modes: a cap piercing mode for closed tube sampling and another for open tubes. The Abacus 5 can be enhanced to meet your changing needs by adding an autosampler and / or a small sample volume module. This system is an ideal solution for most hospitals, laboratories and satellite clinics that are looking for more advanced technology which is reliable, safe, accurate and easy to use.
Benefits and Key Features
Accurate and Precise Results
- Proven impedance measurement technology
- Patented optical laser based WBC differential technology
- Clog detection and prevention with automatic system cleaning
- Advanced sample aspiration flagging checks
Field and Upgradeable Options
- Autosampler for walk-away capability
- Small Sample Module** for reduced sample volume requirement
User Friendly and Easy to Operate
- High resolution touch screen
- Recording sample and quality control
- information is fast and efficient
- Information can be uploaded from a USB, QR code or via a bi-directional LIS connection
Operator Safety
- Cap piercing mode validated for several sample tube types e.g. Monovette,Vacutainer, Vacuette
- BD MAP tube can be used if small sample
- module fitted
- Self-cleaning minimizes daily maintenance
- Reduced risk of biohazard exposure
Confidence
- Simple warning messages and sample flags
- On-board comprehensive QC SW package
- Offers (3 levels) of user access rights / authority levels
- Automatically manages on-board reagent status and lot / expiration dates
Specifically Matched Reagents
- Designed to use specific Diatron reagents to
- deliver the highest quality results
- Maximum shelf life of 36 months with up to 120 day on-board stability
Comparative study data with leading commercial analyzer from three independent laboratories
Additional clinical performance data is available in the A5 case history study.
Specifications
Measuring Data
- Throughput: 60 tests/hour
- Parameters: CBC+5 DIFF mode, 2 histograms: RBC, PLT, 2 scattergrams: 4 diff, BASO, 26 parameters: WBC, LYM, MON, NEU, EOS, BAS, LYM%, MON%, NEU%, EOS%, BAS%, RBC, HCT, MCV, RDW-sd, RDW-cv, HGB, MCH, MCHC, PLT, PCT*, MPV, PDW-sd*, PDW-cv*, P-LCC*, P-LCR*
Measuring Principle
- Laser light scatter technology
- Impedance method for CBC
- Light absorbance for HGB measurement
Reagents and Sampling System
- Samples
- Sample volume: 110 μl of whole blood
- Closed and open tube sampling
- Calibration: Stat and Autosampler mode, specific
- control material (external reference – optional)
- Pre-dilute software option for small samples
- Reagents
- Environmentally friendly Diluent and Cleaner reagents and cyanide-free Lyse
Quality Control
- Separate QC database
- Levey-Jennings graphs
Technical Features
- Multilevel user modes with individual identification
- Data storage capacity: 100,000 records
- Printout: External printers
Usage
- User interface: LCD touch screen (10.4˝)
- Multilingual user interface English, French, Spanish, Croatian, Hungarian, Italian, Polish, Portuguese, Russian, Turkish, Chinese, German, Greek
Dimensions
- Size (Width x Depth x Height): 40 cm x 50 cm x 45 cm, 16˝ x 20˝ x 18˝
- Weight: 35 kg, 77 lbs
Options
Autosampler
- Sample capacity: 100 tubes with continuous loading
- Acceptable primary tubes - Greiner, Monovette, Terumo,Vacuette,Vacutainer
- Built-in barcode reader and sample mixer
- Cap recognition
Small sample module *
- Aspirated sample only 25 μl (standard 110 μl)
