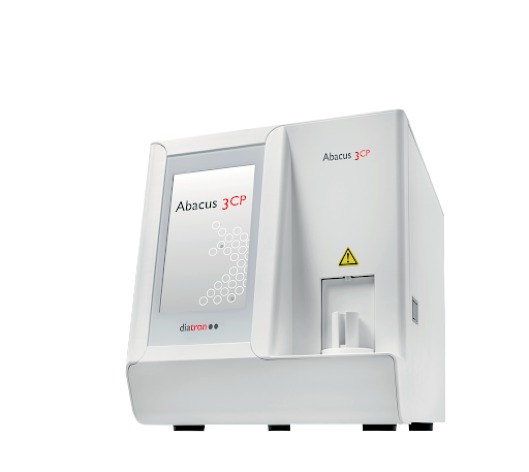

Diatron Abacus 3CP CBC Analyzer
Product code: A3CP-1
Shipping Weight: 39.00lbs (17.69kg)
WHY CHOOSE BLOCK SCIENTIFIC?
See why in 2 mins.
Abacus 3 (3-Part) CBC Analyzer, NEW- Includes Installation, Training, Initial Reagent Set, 1 Year Warranty
The Abacus 3CP system is a compact, bench top, 60 test/hour, 3-part WBC differential analyzer with two sampling modes: a cap piercing mode for closed tube sampling and another for open tubes. The Abacus 3CP has a large color touchscreen with an easy to follow, intuitive user interface. The system is an ideal solution for small laboratories, satellite clinics and doctors’ offices that are looking for reliable, safe, accurate and easy to use instrumentation.
Benefits and key features
Accurate and precise results
- Proven impedance measurement technology
- Advanced flagging algorithms
- Clog detection and prevention with automatic system cleaning processes
- Unique sample rotor
User friendly and easy to operate

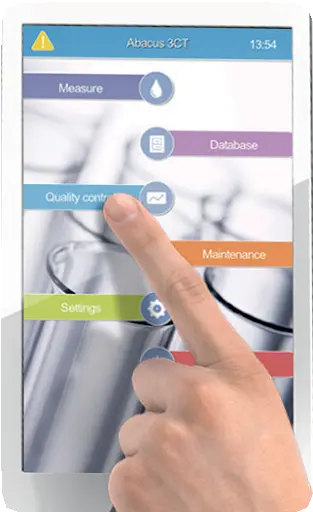

- A high resolution touch screen with easy to follow internationally recognized icons
- Recording of sample and quality control
- Information is fast and efficient

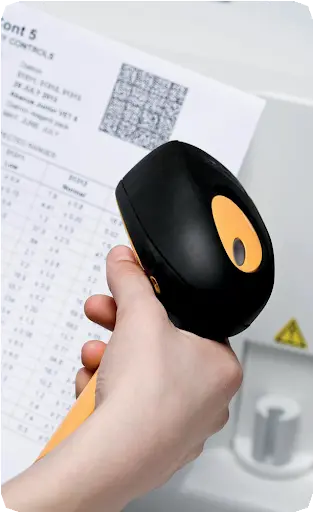

- Information can be uploaded from a USB or QR code with barcode reader
- Transfer data using bi-directional LIS connection
Operator safety

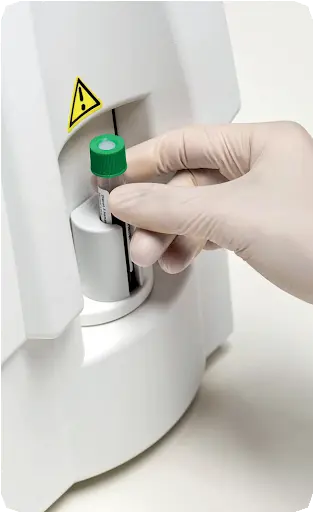

- Cap piercing mode validated for multiple sample tube types e.g.Vacutainer and Venosafe
- Reduced risk of biohazard exposure
- Self-cleaning procedures minimize daily maintenance
Confidence
- System uses easy to understand warning messages and sample flags
- Employs a comprehensive QC SW package
- Offers (4 levels) of user access rights / authority levels
- Automatically manages on-board reagent status and lot / expiration dates
- Designed to use specific Diatron reagents to deliver the highest quality results
Diatron reagents
Our systems comprise of two perfectly matched elements: analyzers and reagents. The optimum performance of our analyzer systems is only achieved when our matched reagents are used. Our ISO 13485 certified reagent manufacturing plant is designed to ensure the highest quality standards. All lots of reagent we manufacture are fully validated prior to release on each of our associated instruments for low background counts, osmolality, pH and other critical parameters. Our diluent reagents contain no azide and our lyse reagents are cyanide-free. Our highly stable reagents offer a shelf life of up to 36 months from the date of manufacture and up to 120 days of onboard stability. The combination of Diatron reagents and Diatron analyzers together ensure the best system performance and quality of results.
Specifications
Measuring Data
- Throughput: 60 tests/hour
- Parameters: 16 including 3-part WBC differential: WBC, LYM, MID, GRA, LYM%, MID%, GRA%, RBC, MCV, HCT, HGB, MCH, MCHC, PLT, MPV, RDW-CV
Measuring Principle
- Volumetric impedance method
- Light absorbance for HGB measurement
Reagents and Sampling System
- Samples
- Sample volume: 100 μl
- Sampling method: Open and closed tubes
- Calibration: Manual or automatic
- Reagents
- Environmentally friendly Diluent bulk and Cleaner reagents and cyanide-free Lyse reagent or
- Diatro•ECO Reagent Pack: Up to 145 measurements
- Environmentally friendly Diluent bulk and Cleaner reagents and cyanide-free Lyse reagent or
Quality Control
- 24 QC lots
- Levey-Jennings graphs
- USB and barcode option to load QC target values
- Capable to read QR codes for reference input data
Technical Features
- Data storage capacity: 10,000 results
- Compatibility with many external printers
- Interfacing possibilities: USB, LAN (HL7)
- Optional external barcode reader
- Built-in thermal printer module, 58 mm wide roll paper, full report with histograms
Usage
- Color touch screen operation
- Logical/intuitive user interface
- User language: English
Dimensions
- Size (Width x Depth x Height): 32 cm x 49 cm x 36 cm
- 12˝ x 19˝ x 14˝
- Weight: 18 kg, 39 lbs
Reagents for Abacus 3 CP
SAP Cat. No | Cat. No. | Product name | Pack size |
10023088/10023037 | D1512/D1012 | Diatro•Dil-5P/Diatro•Dil-Diff* | 20 l |
10023114 | D2011HK | Diatro•Lyse-Diff with Hardware Key | 1 l |
10023233 | D5011 | Diatro•Cleaner** | 1 l |
| DRP08 | Diatro•ECO Reagent Pack
| set
|
Cleaners for tube decontamination
SAP Cat. No | Cat. No. | Product name | Pack size |
10023273 | D6011 | Diatro•Clenz** | 1 l |
10023287 | D7011 | Diatro•Hypoclean | 1 l |
10023301 | D8011 | Diatro•Hypoclean CC | 100 ml |

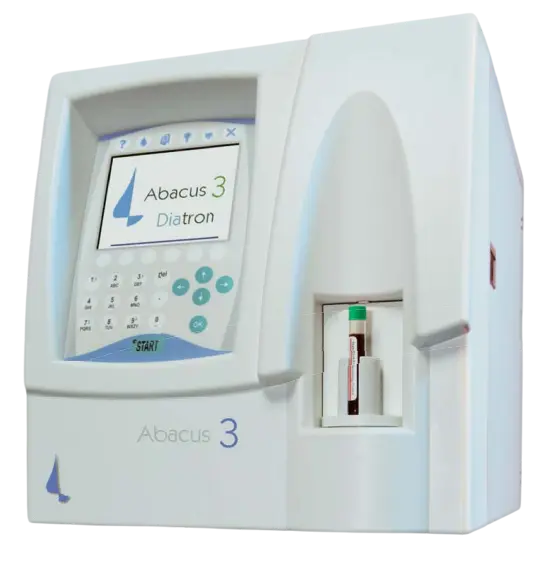

Diatron Abacus 3 Hematology Analyzer: Compact, Powerful, and Efficient
The Diatron Abacus 3 is a high-performance, compact hematology analyzer engineered for clinics, hospitals, and physician practices requiring fast, accurate CBC results in a small footprint. With the ability to process 60 tests per hour, this analyzer delivers 20 hematological parameters, including a 3-part WBC differential, making it a reliable solution for routine laboratory diagnostics.
Key Features
- 20-parameter CBC analysis including WBC, LYM, MID, GRA, RBC, HGB, PLT, and more
- 3-part white blood cell differential for routine diagnostics
- Cap-Pierce function for closed tube sampling
- Small sample volume: only 25 μL of whole blood
- User-friendly interface with multilingual support and a color LCD
- Built-in thermal printer and USB/RS232 connectivity for seamless data output
- 6-level quality control (QC) with Levey-Jennings charts and self-diagnostic functions
- Compact and lightweight (15 kg), ideal for labs with limited bench space
- Automated cleaning system prevents carryover and aperture clogging
- Data storage for up to 10,000 records with histograms
