Description

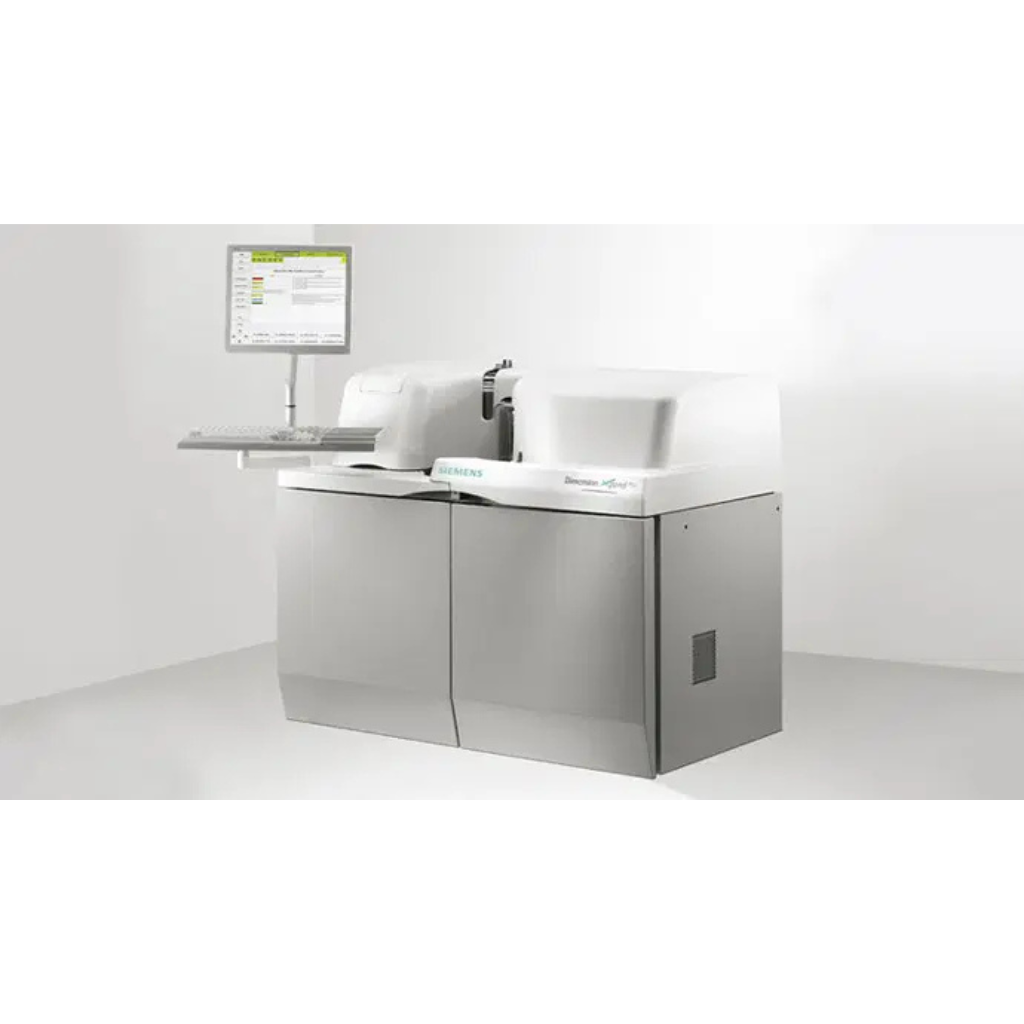

Siemens Dimension Xpand Plus Chemistry Analyzer
The Dimension® Xpand Plus integrated chemistry system combines chemistry, STAT and specialty testing on a single, compact, easy-to-use system.
- Full-range integrated capability in a small footprint
- True integration of chemistry and immunoassay for improved workflow efficiency
- Easy-to-use Dimension platform provides the confidence that every trained operator can run any test, any time
- Full disease-state profiling on a single analyzer
- The most commonly ordered panels from a single sample
Full Range Integrated Capability for maximum efficiency in a compact space
Compact yet powerful
- Comprehensive menu – over 90% of critical assays
- 47 assays onboard concurrently
True Integration
- Simultaneous immunoassay and chemistry processing when used with Heterogeneous Immunoassay module
- One sample area
- Common reagent area
User-friendly
- No manual reagent or sample preparation
- Load and go reagents without instrument pause
- Low calibration frequency
- Minimal maintenance
Built-in Automation
- Auto rerun at lab-defined “panic” values
- Lab-defined auto-dilution without operator involvement
- Automatic reflex testing
- Autocalibration for electrolytes
- Sample level sense warns of low volumes prior to processing
- Patented cuvette system automatically produces cuvettes for use and seals them for disposal
Specifications
| Weight | 765 lb (348 kg) Basic 783 lb (356 kg) with Heterogeneous Immunoassay (HM) Module | |
| Dimensions | Width: 51” (129 cm) Height: 45” (113 cm) Depth: 31” (79 cm) | |
| Operating Temperature | 65-85°F (17-30ºC) with a maximum fluctuation of 5ºF (2.8ºC) per hour. The system requires a maximum of 120 minutes to warm up from a cold start to the incubation temperature. | |
| Relative Humidity | 20-80% | |
| Avg Noise Output | <70 dBA at 1 m while operating | |
| Thermal Output | 3753 BTU/hr (1100 W) | |
| Water Usage | Very low water consumption (2 liters/hour at maximum throughput) | |
| Power Requirements | ||
| Nominal Line Voltage vac | 115 | |
| 230 | ||
| Line Voltage Range vac | 103 to 127 | |
| 207 to 253 | ||
| Nominal Line Frequency Hz | 47 to 63 | |
| 47 to 63 | ||
| Maximum Continuous Current, MPS | ~11 | |
| ~5.5 | ||
| Power Consumption WATTS | 1265 | |
| 1265 | ||
