Medica EasyStat

https://www.blockscientific.com/web/image/product.template/96208/image_1920?unique=7ed0854

Medica EasyStat

$ 0.00 0.0 USD $ 0.00

$ 0.00

    This combination does not exist.

    Request a quote

    This product no longer supported.
    We recommend the Siemens RapidPoint 500 Blood Gas Analyzer- Refurbished as an ideal replacement.
    Click the model name above to learn more.

    Product code: 7001

    Shipping Weight: 16.00lbs (7.26kg)

    WHY CHOOSE BLOCK SCIENTIFIC?
    See why in 2 mins.

    Description

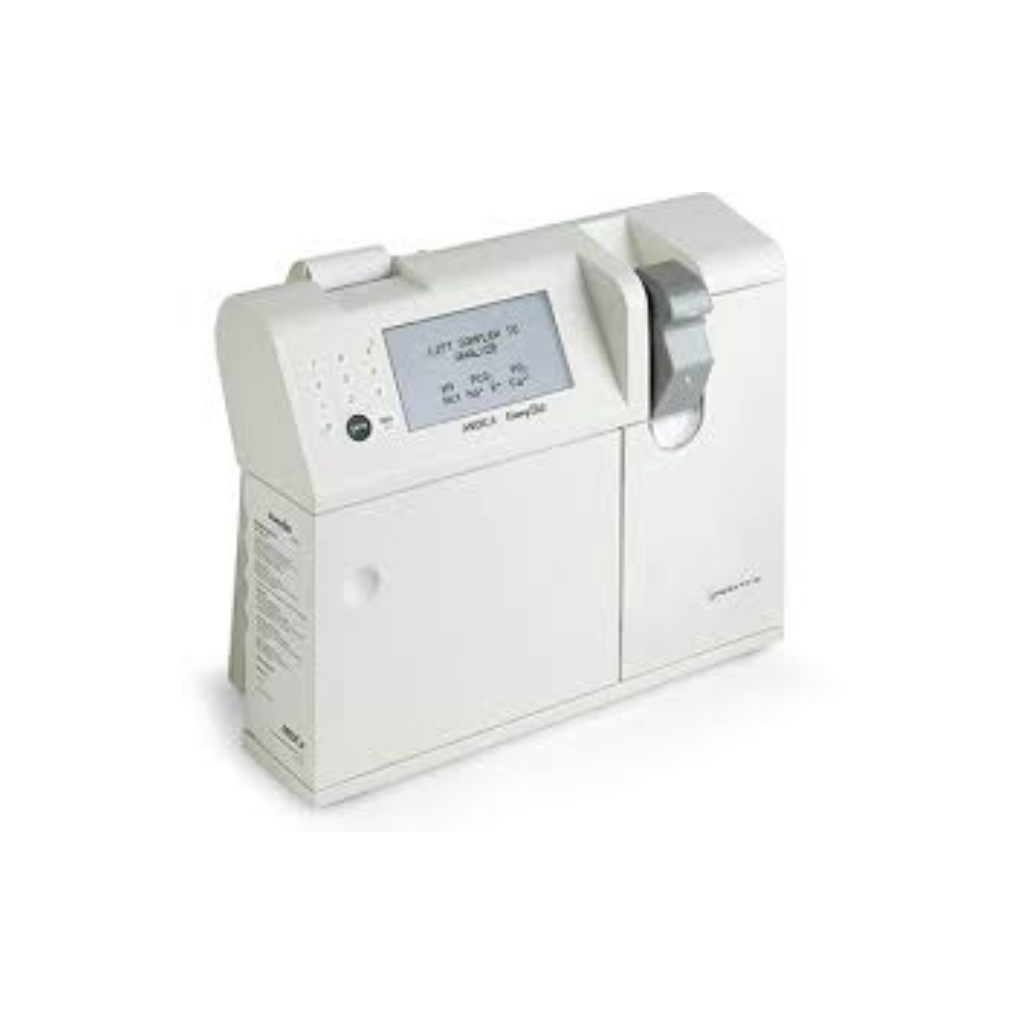

    Medica EasyStat

    Medica’s EasyStat® blood gas analyzer delivers the precision and performance required of today’s demanding health care environment, while focusing on the laboratory’s need to deliver sample results economically and efficiently.

    The EasyStat analyzer measures pH, PCO2, PO2, Na+, K+, Ca++, Cl-, and Hct and calculates additional parameters. Patient parameters, including FIO2, patient ID, patient temperature, %FIO2 drawing site, and other information can be entered using the digital keypad and integrated with patient results.

    Liquid calibrants are packaged in a single convenient reagent module. All analyzer components are combined into simple modules that are easily accessible to the user. In addition, simple menus guide the user through analyzer operation.

    EasyStat’s compact format and modular design significantly reduces maintenance and space requirements. Disposable electrodes and reagent module ensure economical operation and low cost per sample.


    Features

    • Specifications
      • CLIA Classification: Moderate complexity
      • Sample Type: Whole blood
      • Sample Size: 120μL Syringe mode/95μL Capillary mode
    • Measured Parameters and Limits
      • PO2: 5-700 mmHg
      • PCO2: 5.0-150.0 mmHg
      • pH: 6.500-8.000 pH units
      • Hct: 10-70%
      • Na+: 80-200 mmol/L
      • K+: 1.0-20.0 mmol/L
      • Ca++: 0.25-5.00 mmol/L
    • Calulated Parameters
      • THb (Total Hemoglobin): 3.3 - 23.3 g/dL
      • pH (T) (pH temperature corrected)
      • PCO2(T) (PCO2 temperature corrected)
      • PO2(T) (PO2 temperature corrected)
      • TCO2 (Total Carbon Dioxide): 0-50 mmol/L
      • HCO3− (Bicarbonate): 0-50 mmol/L
      • BEb(Base Excess in blood): −25.0-25.0 mmol/L
      • BEecf(Base Excess in extra cellular fluid): −25.0-25.0 mmol/L
      • SBC(Standard Bicarbonate: 0-50 mmol/L )
      • %SO2c(Oxygen Saturation): 40.0-100.0%(calculated at normal P50)
      • CtO2(Oxygen Content): 3.0 - 30.0 mL/dL
      • A-aDO2(Alveolar arterial oxygen gradient): 0-700 mmHg
      • RI(Respiratory Index): 0.0-70.0
      • Ca++(7.4)(for 7.2<pH≤7.6): 0.22 - 5.58 mmol/L
    • Input Parameters
      • Patient Temperature: (20-45°C) Time Drawn (00.00)
      • Hemoglobin: (30-30.0 g/dL) Sample Source (arterial, mixed venous, venous)
      • FlO2: (10-100%) Sample Type (radial, brachial, femoral, arterial line)
      • Patient ID: (14 digits)
      • Operator ID: (14 digits)
    • Sample Temperature Control: 37°C ±0.2°C
    • Ambient Conditions:
      • 15-30°C(59-89°F), 500-800 mmHg(Max 15 PSI)
      • 5-85% relative humidity, non-condensing atmospheric air environment (21% O2)
    • Analysis Time: 120 seconds
    • Data Storage: 64 Patient results with Operator ID, Patient ID, Date and Time QC - up to 93 results for each Level (Blood Gas/Electrolytes 1,2,3, Hct 1,2)
    • Calibration: Automatic or On-Demand
    • Input/Output: Numeric keypad, graphic display, 27 column thermal printer, barcode reader port, RS-232 computer interface port
    • Power: 100/115 ˜ VAC, 50 - 60Hz, 0.8 A or 220 ˜ VAC, 50 - 60 Hz, 0.4A
    • Size & Weight: 14.5" W x 12.5" H x 7.0" D (37 cm W x 32 cm H x 18 cm D) 17 lbs.(7.7 kg) with Reagent Module
