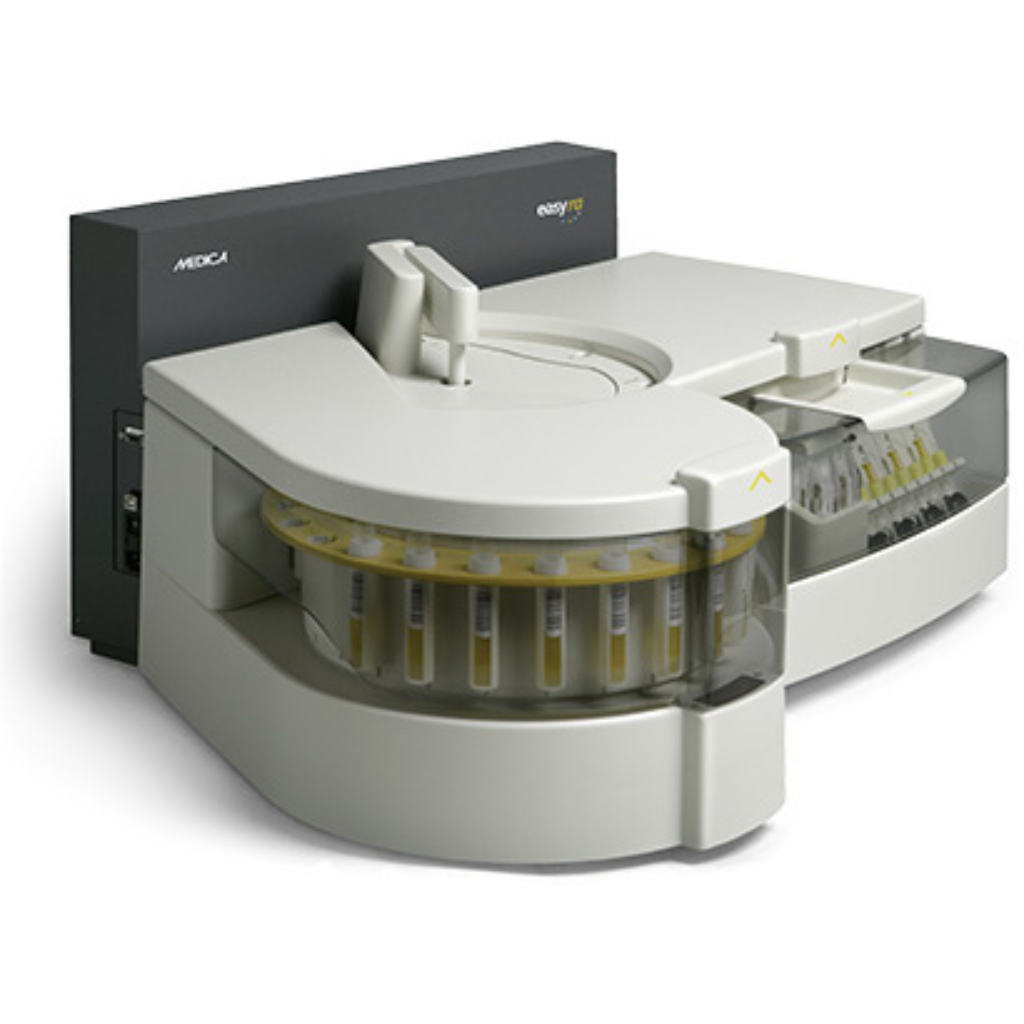

Medica EasyRA Analyzer - LIS, & ISE DOM

Block Scientific offers the new upgraded Medica EasyRA Chemistry Analyzer with enhanced throughput to meet the changing demands in the clinical laboratory. The upgraded EasyRA analyzer provides reliable test results at almost twice the speed of current models.

Now you can provide clinicians with drugs of abuse testing and routine wellness testing on a single, simple, easy-to-use bench top analyzer.

The synergy between the launch of the drugs of abuse test menu with the high speed EasyRA analyzer (150 – 180 drug screening tests per hour or up to 240 routine chemistries/hour) allows you to market towards laboratories testing up to 50 or more drug screening panels/day or 70 CMPs/day.

• Increased throughput up to 240 samples/hour depending on the tests assayed.
• Faster cycle time for inventories, pipetting and fluid handling.

• No changes to spare parts/consumables for the end user.
• Maintenance schedules are almost identical. Waste tubing maintenance schedule reduced from 6 to 4 months.
• Limited changes to existing reagents. BUN, GGT and ALP parameters have been slightly modified to improve performance on all models.
• Minimal hardware changes. No additional service training required.

• Track different analyzer versions by serial number: Higher speed analyzers have an 11-digit serial number versus 8-digits for the current versions.
• No changes to analyzer catalog (REF) numbers. REF 10400 (with ISE, No Printer) will be referring to the higher speed analyzer.

Benefits of moderately complex drug screening on the EasyRA analyzer

• Fully automated enhancing efficiency
• Positive/negative results reported, no manual visual interpretations
• Reduce risk of transcription errors with automated data entry and bidirectional LIS communication
• Give clinicians more control by allowing them to run individual analytes of interest
• Single platform for drugs of abuse in urine and routine chemistries

Features

EasyRA specifications

• system specifications: true random access, clinical chemistry analyzer


• throughput: Patient results per hour, photometric: up to 240 tests/hour*; ISE: up to 240 tests/hour*; STAT time: 8 minutes (Na+/K+/Cl-/CO2/GLU/BUN/CREA)


• types of analysis: endpoint, enzymatic, rate, bichromatic, potentiometric, enzyme immunoassay (EIA), turbidometric immunassay (TIA


• samples: 24 sample positions per sample ring for patient, calibrator, or QC samples; STAT: up to 5 user-defined positions; optional second sample ring uniquely identified by analyzer; automatic dilution: 1:2, 1:3, 1:5 and 1:10 final dilution


• sample volume: photometric chemistries: 2.0–25.0 μL; programmed in 0.1 μL steps; ISE chemistries: serum: 80–90 μL; urine: 140 μL


• sample containers: sample cups or primary tubes in a wide range of sizes


• sample identification: position ID, barcode ID (optional), barcode types: codabar, code 39, 128, interleaved 2 of 5


• reagents: 24 positions for reagents; reagent cooling temperature 12º–15º C less than ambient; reagent identification: RFID (radio frequency identification) technology - automatic tracking and entry of reagent information (chemistry name, lot number, expiration date; reagent volumes; analysis volumes for reagents, samples, diluent; primary and secondary wavelengths; reaction read times; analysis type; reagent and sample blanking; linear range of assay; acceptable absorbance ranges). Reagents are ready to use. 6 open channels.


• reagent volumes: reagent volume (R1)/test 120–350 μL; programmed in 1 μL steps. reagent volume (R2)/test 10–50 μL; programmed in 1 μL steps


• water supply: reagent grade deionized water, diluent bottle


• sampling system: probe pre-heater; single probe with RF level sensing; inner and outer probe washing


• cuvette material: optical acrylic; disposable segments; 12 cuvettes per segment; 6 total segments in reaction area
• reaction time: 1–15 minutes


• reaction temperature: 37º ± 0.25º C (photometric chemistries)


• wavelength: 340, 405, 520, 550, 600, 660, 700; half bandwidth 10 ± 2 nm


• light source: xenon flash lamp, 5 year typical life


• photometric linearity: 0.0–2.5 Abs units for 0.6 cm pathlength (1% deviation)


• photometric resolution: 0.0001 Abs units at 1.0 Abs


• quality control: 2 levels of controls (Levey-Jennings plots for two levels)


• calibration curves: single and multilevel calibration (based on analyte)


• user interface: edit and monitor worklists; review results; review calibration and quality control results; Levey-Jennings charts for 31 days of QC results; on-board
  diagnostics and individual component monitoring; graphic instructions for daily, weekly and monthly maintenance procedures


• data storage: 2000 patient results; 56,000 test results, ability to archive and retrieve results


• power requirements:100 VAC–240 VAC ± 10% 50–60 Hz, 4.0/2.0A


• size and weight: 40˝ w x 15˝ h x 26˝ d (102 cm x 38 cm x 66 cm), 88 lbs (40 kgs) without reagents


• ambient conditions:15º–30º C (59º–86º F); <85% relative humidity, non-condensing atmospheric air environment


• computer requirements:minimum: Windows® 8**; CD/CD-RW; 1 RS-232 or USB port; touch screen monitor or SVGA color monitor, mouse and keyboard


• printing: local or network printer


• optional features:ISE Module
