Description
Medica EasyBloodGas

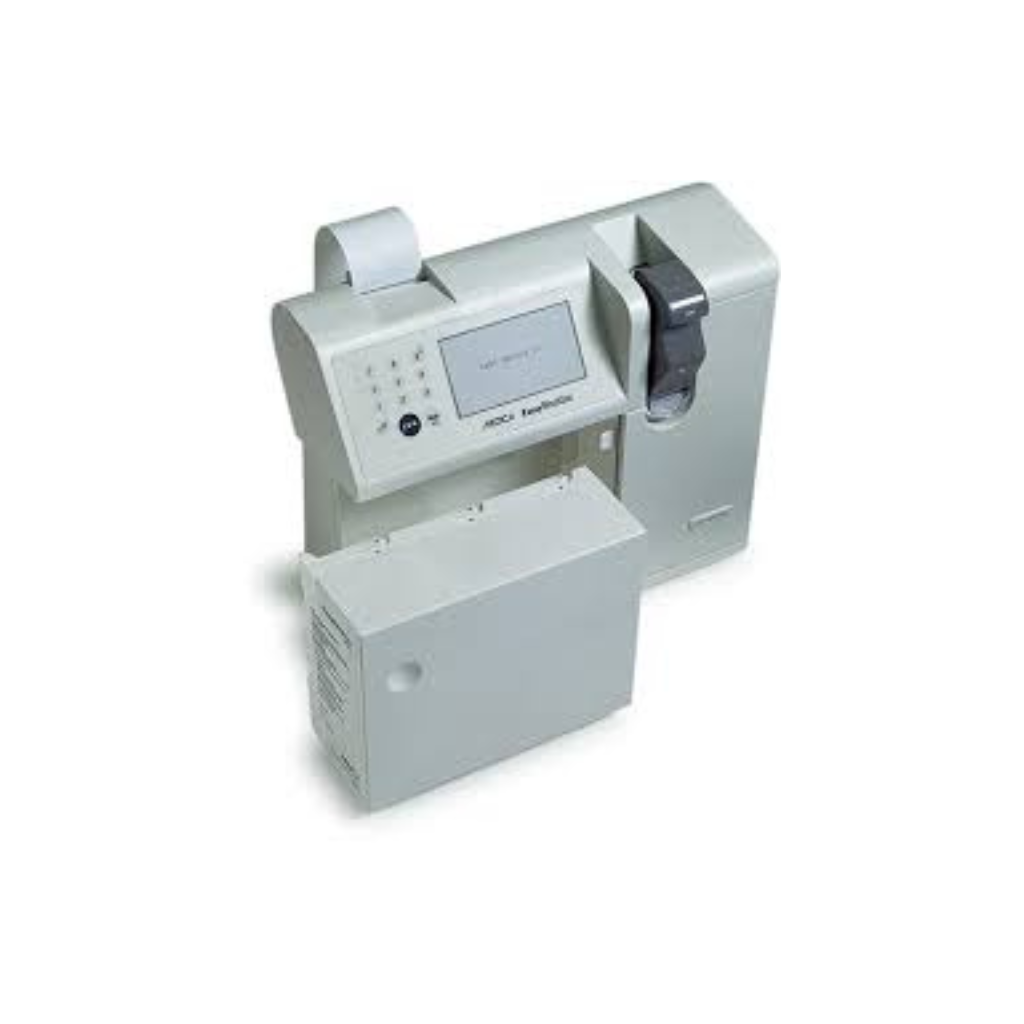

Medica’s EasyBloodGas™ offers traditional blood gas analysis in a new compact format. The small footprint saves space and integrates easily into laboratory workflows.
Calibrating gases and liquid buffers are combined to create a convenient reagent module containing single-phase calibrants. Gas tanks are eliminated. All analyzer components are designed into simple modules, easily accessible to the user. Routine maintenance is limited to the replacement of the reagent module, electrodes, and a single pump tube.
Medica’s EasyBloodGas analyzer measures pH, PCO2, and PO2 and calculates 11 additional parameters. Patient parameters, including FIO2 and Hb, can be entered using the digital keypad and integrated into patient results. Measured and calculated results are displayed and printed. Simple menus guide the user through analyzer operation.
Medica’s EasyBloodGas is designed to meet the laboratory’s need to deliver sample results economically. Compact electrode design and precise control of calibrator volumes ensure economical operation and a low cost per sample.
Features
- Specifications
- CLIA Classification: Moderate complexity
- Sample Type: Whole blood
- Sample Size: 100μL Syringe 75μL Capillary
- Measured Parameters
- pH: 6.900-7.900 pH units
- PCO2: 8.0-150.0 mmHg
- PO2: 10-700 mmHg
- Calulated Parameters
- pH (T) (pH temperature corrected)
- PCO2(T) (PCO2 temperature corrected)
- PO2(T) (PO2 temperature corrected)
- TCO2 (Total Carbon Dioxide): 0-50 mmol/L
- HCO3− (Bicarbonate): 0-50 mmol/L
- BEb(Base Excess in blood): −25.0-25.0 mmol/L
- BEecf(Base Excess in extra cellular fluid): −25.0-25.0 mmol/L
- SBC(Standard Bicarbonate: 0-50 mmol/L )
- %SO2c(Oxygen Saturation calculated at normal P50): 40.0-100.0%
- A-aDO2(Alveolar arterial oxygen gradient): 0-700 mmHg
- RI(Respiratory Index): 0.0-70.0
- Input Parameters
- Patient Temperature: 5-45°C
- Hemoglobin: 30-30.0 g/dL
- FlO2: 10-100%
- Patient ID: 14 digits
- Sample Temperature Control: 37°C ±0.2°C
- Ambient Conditions:
- 15-30°C(59-89°F), 500-800 mmHg(Max 15PSI)
- 5-85% relative humidity, non-condensing atmospheric air environment (21% PO2)
- Analysis Time: 125 seconds
- Data Storage: 64 Patient results with Operator ID, Patient ID, Date and Time QC - up to 30 results for each Level (1,2,3)
- Calibration: Automatic or On-Demand
- Input/Output: Numeric keypad, graphic display, 27 column thermal printer, barcode reader port, RS-232 computer interface port
- Power: 100/115 ˜ VAC, 50 - 60Hz, 0.8 A or 220 ˜ VAC, 50 - 60 Hz, 0.4A
- Size & Weight: 14.5" W x 12.5" H x 7" D (37 cm W x 32 cm H x 18 cm D) 16 lbs.(7.3 kg) with reagent module
