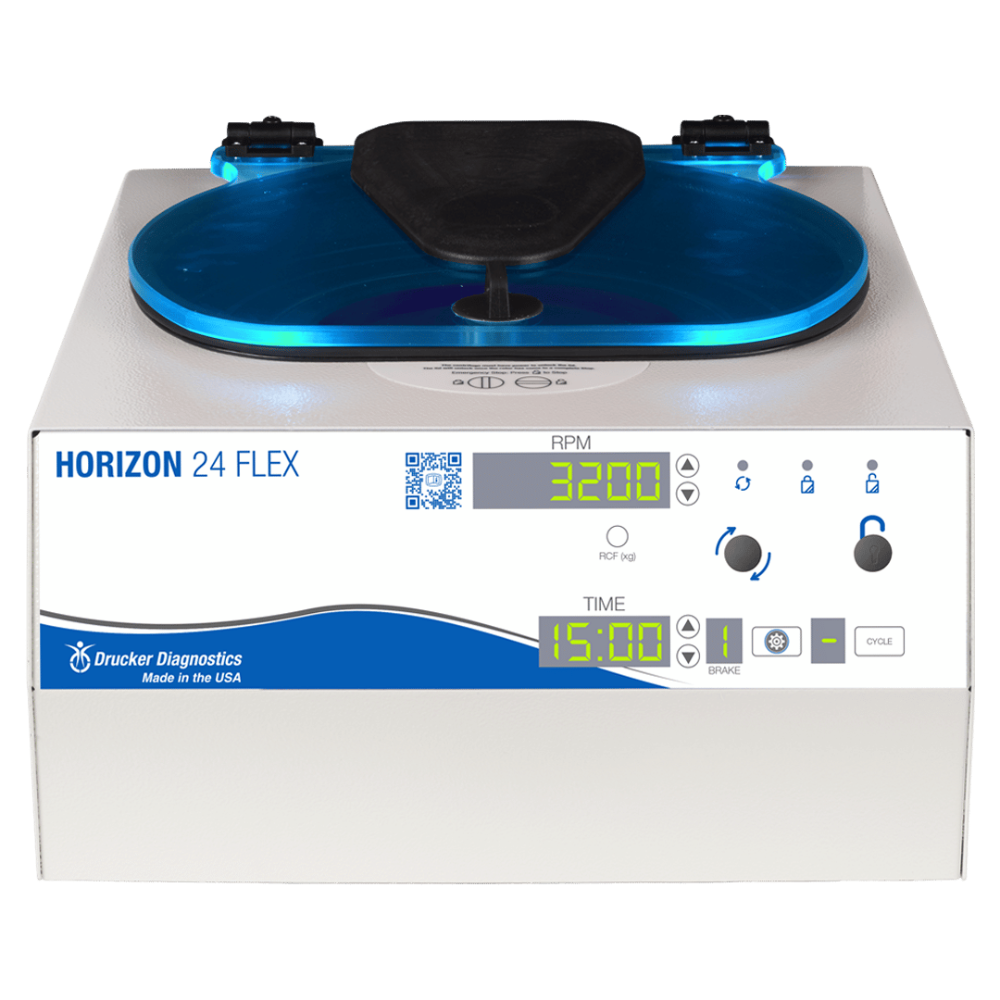

Drucker Diagnostics Model Horizon 24 Flex Centrifuge

Model Horizon 24 Flex Centrifuge

The Horizon 24 Flex by Drucker Diagnostics is designed for high-volume, routine labs where flexibility is vital. It is a completely customizable centrifuge that can save up to 10 programmable settings for RPM, run time, speed control and more, utilizing a fully digital display. LED lid lighting indicates when the centrifuge is ready (off), running (on), or done (flashing) to prevent forgotten tubes and preserve sample quality.

Applications

• Blood Chemistry
• Coagulation (coag)
• Platelet Poor Plasma (PPP)
• Urine

Programmable Routine Centrifuge with Digital Display for Complete Control

• Digital Display
• 24 Tube Capacity
• Horizontal Centrifugation
• Set and Select 1 of 10 Custom Cycles
• Programmable Time, G-Force, and RPM
• Light Lighting Prevents Forgotten Tubes
• 2,000 xg Max RCF
• 3,400 Max RPM
• Buckets Available for 50 mL Tubes

Rotor and Tube Holders Included

Features

• Capacity: Up to twenty-four (24) tubes
• Tube Sizes: 75-100 mm (3-10 mL), additional buckets available for 50 mL tubes
• Fully Programmable: Save and recall 10 easily customizable cycle settings, or choose from three presets for chemistry, coag, and urine
• 2-Stage Horizontal Rotor: Drucker Diagnostics' patented swing-out horizontal rotor design produces ideal horizontally separated samples
• Cool Operation: Unique Design of the convection based cooling system protects the samples even under the heaviest workloads
• Intuitive Lid Lighting: Lid lights flash at the end of each cycle and continue flashing until the lid is opened
• Automatic Lid Lock: Centrifuge will not run with the lid open and the lid cannot be opened while samples are spinning
• Clear Shatter-Proof Lid: Allows for safe sample observation and optical calibrations
• Reinforced Guard Bowl: Provides Maximum safety and durability
• Brushless DC Motor: Years of operation with no routine maintenance
• Quiet Operation: Enjoy a sound level of just 59 dBA
• Regulatory Approvals: Certified to US, Canadian, and European Safety regulations and standards

Specifications

• Height: 9 in. (23 cm)
• Width: 15 in. (38 cm)
• Depth: 17 in. (43 cm)
• Weight: 39 lbs. (17 kg)
• Sound Level: 59 dBA
• Max. Acceleration Time: 20 Seconds
• Max. Deceleration Time: 20 Seconds
• Factory Setting Range: .5 to 99 Minutes (± 2%)
• Voltage: 95 to 253 VAC
• Frequency: 50/60 Hz
• Max. Power Requirements: 220 Watts
• Centrifuge Motor: 1/2 H.P. Brushless DC
• Max Speed: 3,400 RPM
