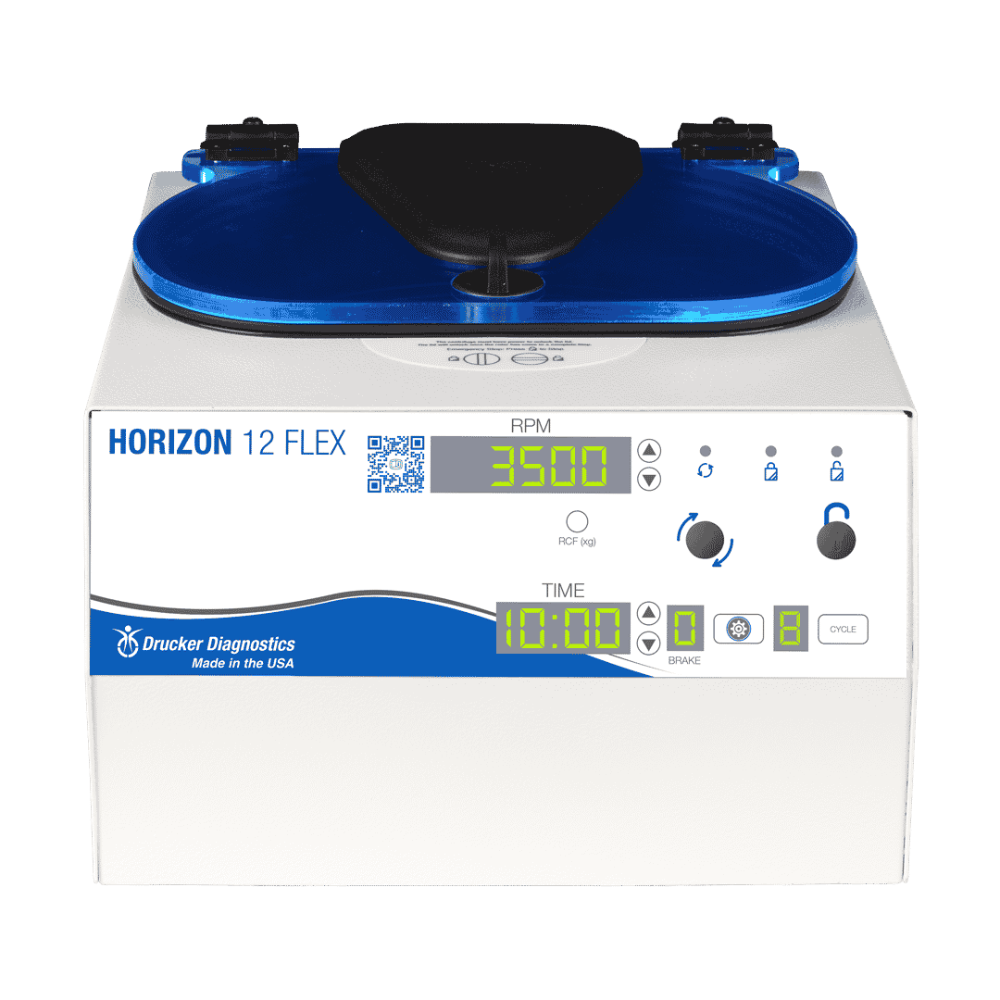

Model Horizon 12 Flex Centrifuge

The Horizon 12 Flex by Drucker Diagnostics is designed for medium-sized labs where flexibility is vital. It is a completely customizable centrifuge that can save up to 10 programmable settings for RPM, run time, speed control and more, utilizing a fully digital display. LED lid lighting indicates when the centrifuge is ready (off), running (on), or done (flashing) to prevent forgotten tubes and preserve sample quality.

Applications

• Blood Chemistry
• Coagulation (coag)
• Platelet Poor Plasma (PPP)
• Urine

Programmable Routine Centrifuge with Digital Display for Complete Control

• Digital Display
• 12 Tube Capacity
• Horizontal Centrifugation
• Fully Customizable Cycle Settings
• Set and Select 10 Programmable Cycles
• LED Lid Lighting Flashes When Done
• 2,000 xg Max RCF
• 3,700 Max RPM

Rotor and Tube Holders Included

Features

• Capacity: Up to twelve (12) tubes

• Tube Sizes: Up to 75-100 mm (3-10 mL)

• Fully Programmable: Save and recall 10 easily customizable cycle settings, or choose from three presets for chemistry, coag, and urine

• 2-Stage Horizontal Rotor: Drucker Diagnostics' patented swing-out horizontal rotor design produces ideal horizontally separated samples

• Cool Operation: Unique design of the convection based cooling system protects the samples even under the heaviest workloads Intuitive
• Lid Lighting: Lid lights flash at the end of each cycle and continue flashing until the lid is opened

• Automatic Lid Lock: Centrifuge will not run with the lid open and the lid cannot be opened while samples are spinning

• Clear Shatter-Proof Lid: Allows for safe sample observation and optical calibrations

• Reinforced Guard Bowl: Provides maximum safety and durability

• Brushless DC Motor: Years of operation with no routine maintenance

• Quiet Operation: Enjoy a sound level of just 64 dBA

• Regulatory Approvals: Certified to US, Canadian, and European Safety regulations and standards

Specifications

• Height: 9 in. (23 cm)
• Width: 13 in. (32 cm)
• Depth: 15 in. (39 cm)
• Weight: 30 lbs. (13.7 kg)
• Sound Level: 56 dBA
• Max. Acceleration Time: 20 Seconds
• Max. Deceleration Time: 20 Seconds
• Factory Setting Range: .5 to 99 Minutes (± 2%)
• Voltage: 95 to 253 VAC
• Frequency: 50/60 Hz
• Max. Power Requirements: 220 Watts
• Centrifuge Motor: 1/2 H.P. Brushless DC
• Max Speed: 3,700 RPM
