Description

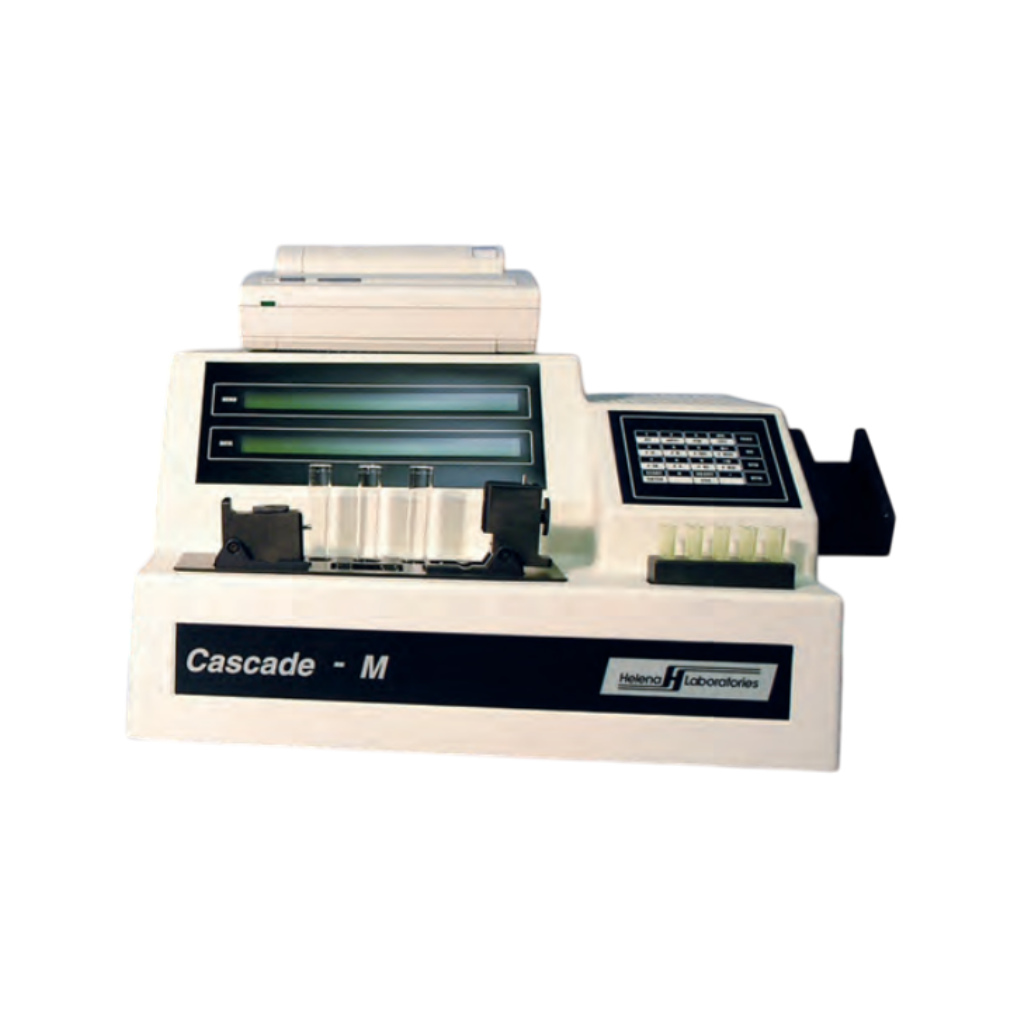

Cascade M Coagulation Analyzer
Cascade M, 2-channel analyzer, 4-line screen, 110V / 220V
Cascade M is a manual hemostasis analyzers that are ideal for all routine clotting assays - PTs, aPTTs, thrombins, fibrinogens and factor assays. Designed for easy, inexpensive, low-volume testing, these analyzers are small in size but big on features, offering you many time and labor saving benefits. Operation is simple and economical.
Easy-to-Use Keypad, On-Screen Prompts - All tests are clearly enumerated on the keypad for fast, easy test selection - there's no guess work caused by "hidden" function keys. Computer prompts appear on the screen to conveniently step the user through testing. Default settings are preprogrammed but can easily be changed, if desired. (Instructions for changing parameters are provided).
State-of-the-Art Photo Optics - Independent photo-optic detection sources (two for Cascade M) read all samples, regardless of turbidity. Samples can be read in duplicate or in single.
Computerized Features, On-board Quality Control - Cascade M standard curves calculate patient results, INRs and aPTT ratios. Quality control tasks are easy because Cascade M can calculate mean, SD and CV, plus plot and print Levy-Jennings QC charts.
Compact, Lightweight - With benchtop footprints smaller than 15 inch wide by 15 inch deep and weights of approximately 20 pounds, Cascade M is sized to fit any lab. Compact size, dependability and versatility make Cascade M excellent choices as primary analyzers for smaller laboratories or as backup units for larger coagulation analyzers.
Cascade M Specifications
Tests: PT, aPTT, Fibrinogen, Thrombin Clotting Time, Factor Assays.
Sample Size: 50 μL, 100 μL, 200 μL.
Optics System: Constant current LED photo optic detection.
Channels: 2 for Cascade M
Temperature Control: 37°C ± 0.5°C.
Special Features: Stores standard curves; calculates final results for fibrinogens and factor assays. Calculates INRs and aPTT ratios. On-screen prompts for test instructions.
Quality Control Features: Calculates mean, SD, and CV. Plots Levy-Jennings charts.
Display: Fluorescent LCD. Cascade M: 4 lines x 40 characters.
Printer: Accommodates 4 1/2 inch thermal paper. Reports include date, time, INR, average, technician and patient ID. Prints QC and standard curves.
Power Requirements: 110/220 Vac, 50/60 Hz, 100 Watts max.
Operating Environment: Room temperature.
Dimensions: Cascade M: 8 inch H x 15 inch W x 14 inch D (20 cm H x 38 cm W x 35 cm D).
Weight: Cascade M: 20 lbs. (9 kg).
Cascade M Accessories
Cat. No. Item
1718 Cascade M Cuvettes, 5 x 100/pkg
1720 Cascade M Printer Paper, 5 rolls
1475 Disposable Pipette Tips (50-200 µL), 1000 pkg
