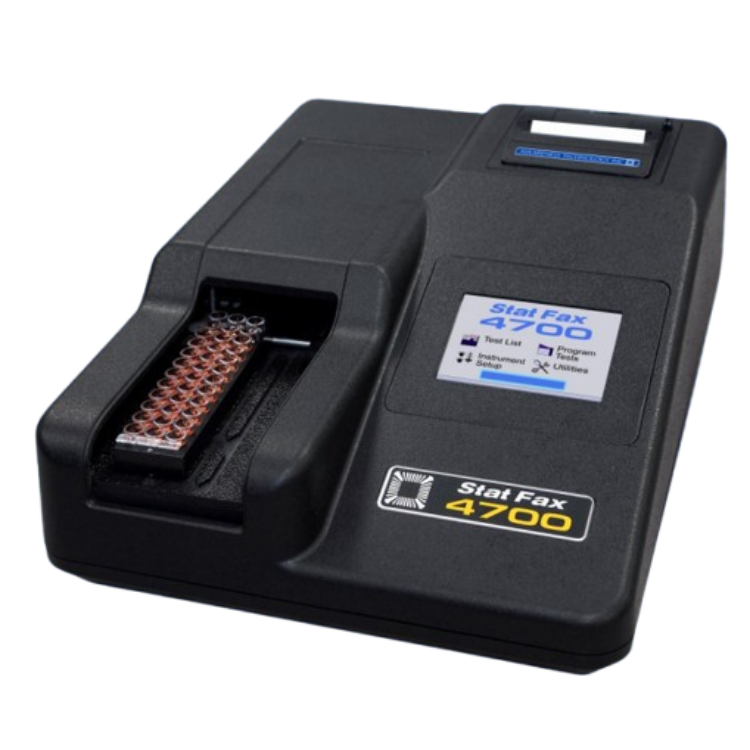

Awareness Technology Stat Fax® 4700 Microstrip Reader
The Stat Fax® 4700 is a compact, economical, standalone microstrip reader. Its streamlined design offers touch screen interface, superb optics, on-board curve-fitting software, and built-in printer to meet the requirements of modern laboratories.Now with Auto-Track™ automatic strip transport 3-strip loading capacity or break-apart, single, and double strips Interactive touch-screen LCD with USB mouse option Bichromatic reading capability Standard model includes four filters, six filters are available for a nominal charge Alternate filters available from 340nm - 700nm On board curve fitting calculations with step-by-step user prompting for single & multi-point calibration curves, several regression calculations, and a variety of cutoff and control options Easy loading on-board graphics printer Large non-volatile memory stores 120 user-entered tests Stat Fax® readers use IAD filters
Block Scientific, a reliable worldwide lab equipment supplier based in Bellport, New York offers quality Microplate Readers/ Washers from top manufacturers. We offer the Stat Fax® 4700 microstrip reader from Awareness Technology, Inc. This compact, economical, stand alone microstrip reader features touch screen interface, superb optics, on-board curve-fitting software, and a built-in printer to meet the requirements of modern laboratories.
Features Of This Advanced Microstrip Reader
- Auto-Track™ automatic strip transport
- 3-strip loading capacity or break-apart, single, and double strips
- Interactive touch-screen LCD with USB mouse option
- Bichromatic reading capability
- Standard model includes four filters, six filters are available for a nominal charge
- Alternate filters available from 340nm – 700nm
- Easy loading on-board graphics printer
- Large non-volatile memory stores 120 user-entered tests
- Stat Fax® readers use IAD filters
- On board curve fitting calculations with step-by-step user prompting for single & multi-point calibration curves, several regression calculations, and a variety of cutoff and control options
Specifications
Linear Measurement Range | 0.0 to 3.0 Absorbance units (A) |
Photometric Accuracy |
+/- (1% +/- 0.010) 0.0 through 1.5 ABS |
Stability | Drift of no more than 0.005A in 8 hours/bichromatic |
Light Source | Tungsten-Xenon lamp with lamp saver feature |
Standard Wavelengths |
Standard: 405, 450, 492, and 630 nm |
Vessel |
Non break apart or break apart strips up to 12 wells long |
Transport mechanism | Auto-Track™ automatic strip transport Detection Mode |
Display | Interactive touch screen 3.5” (8 cm) LCD, color graphic display |
Printer | Thermal with graphic capability, approximately 29 characters per line |
Speed | Reads, calculates and prints results, in approximately 30 seconds per 12-well strip |
Calculation Modes | Single point calibration by standard or factor, multi-point calibration with point-to-point curve fit, linear regressions with log, linear, and log-logit selections |
Test Storage |
120 open channels to store tests |
Dimensions & weight | Approximately 9”x13.5”x5” (24x34x13 cm) weight: 5 lbs (2.3 kg) |
Related Documents
Awareness Technology Stat Fax® 4700 Microstrip Reader brochure
Awareness Technology Stat Fax® 4700 Microstrip Reader Operator's Manual
