AVL 9180

AVL 9180

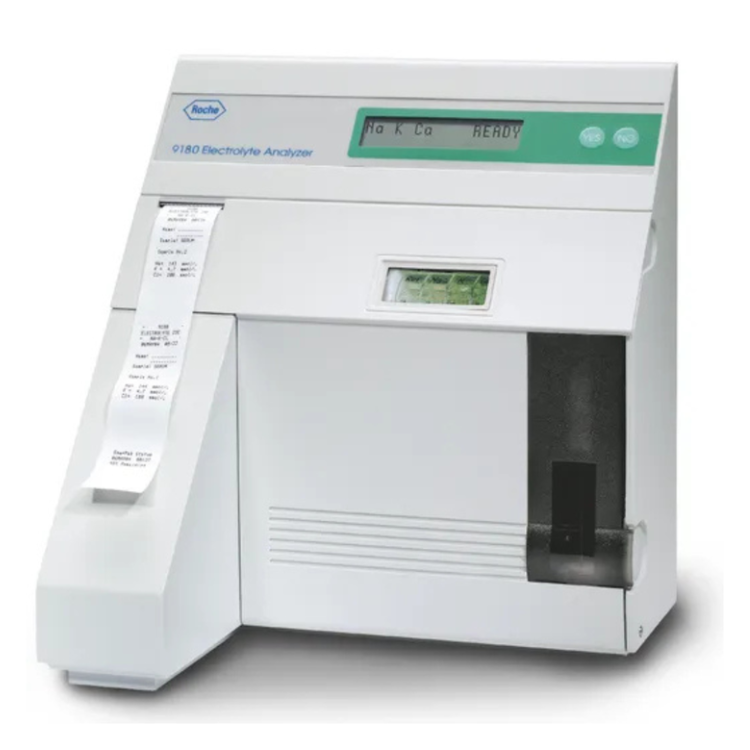

The AVL 9180 is an electrolyte analysis system from Roche Diagnostics. It is a small system intended for use in various health care centers, physician office lab settings, and point of care units.

This analyzer is the best solution for performing electrolytic analysis from whole blood as well as plasma, urine dialysate, serum or aqueous standards. This medical instrument is easy to use and provides fast sample analysis, with the capability to provide accurate and consistent results within one minute. This instrument's enhanced microprocessor-based technology and easy-to-use design provides top performance and operational flexibility. Other benefits of this system include quick change of analyte, user friendliness, flexibility, and low maintenance.

Stand-alone, fully automatic analyzer with nine interchangeable electrolyte configurations

• 95μL whole blood, serum, plasma, acetate or bicarbonate dialysate, or pre-diluted urine

• Simple configuration with Yes/No dialog—no need to change reagents or replace tubing

• Accepts collection tubes, syringes, capillaries or cuvettes

• All reagents and waste are sealed in convenient SnapPak™

• Monitors remaining reagent and prompts user to insert a fresh SnapPak when required

• One-point calibration with each test; two-point, every four hours

• On-board QC software tracks QC data, including standard deviation and C.V.

• Stand-by mode during idle periods

• Built-in thermal printer

Used AVL 9180 electrolyte analyzers for sale at Block Scientific, are electrolyte analysis systems from Roche Diagnostics. AVL – the original manufacturer of this electrolyte analyzer – is now acquired by Roche Diagnostics. The Roche 9180 is a small system intended for use in various health care centers, physician office lab settings, and point of care units.

AVL 9180 For Performing Electrolytic Analysis

The 9180 Electrolyte Analyzer methodology is based on the ion selective electrode (ISE) measurement to determine the measurement values. There are five different electrodes used in the 9180 Electrolyte Analyzer: sodium, potassium, chloride, calcium, and a reference electrode. Each electrode has an ionselective membrane that undergoes a specific reaction with the corresponding ions contained in the sample being analyzed. The membrane is an ion exchanger, which reacts to the electrical charge of the ion. This causes a change in the membrane potential, or measuring voltage, which is built up in the film between the sample and the membrane.

Buy AVL 9180 electrolyte analyzers today. Each unit includes a test panel, cuvette holder for 18 positions, cassette system (SnapPak), and maintenance free electrodes, which improve user friendliness feature of the instrument. Seven different interchangeable electrolyte configurations are offered by this instrument to fulfill your specific testing needs
